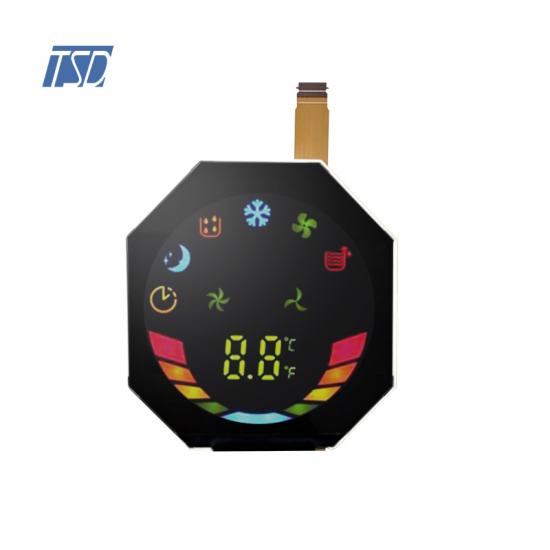

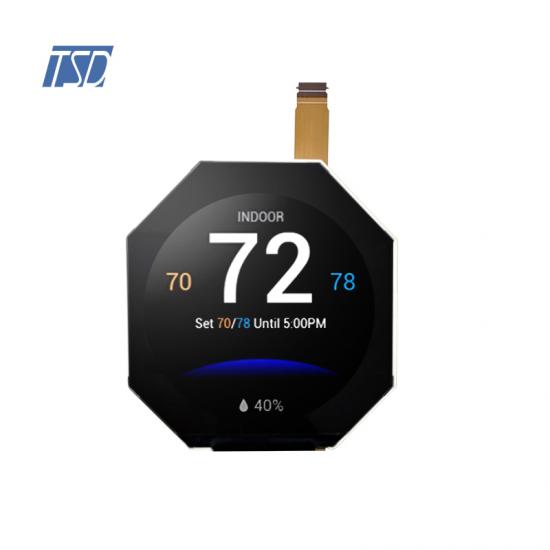

TSD MIPI interface round 2.47 Inch IPS TFT LCD 480xRGBx480 resolution

Model Name: TST025WVBH-01

LCD Type: 2.47’’TFT

Resolution: 480xRGBx480

Viewing angle: All

Brightness: 400

Driver IC: HX8379-C

Interface: MIPI

Touch Screen: No

Operating Temperature: -20~70

Storage Temperature: -30~80

Description:

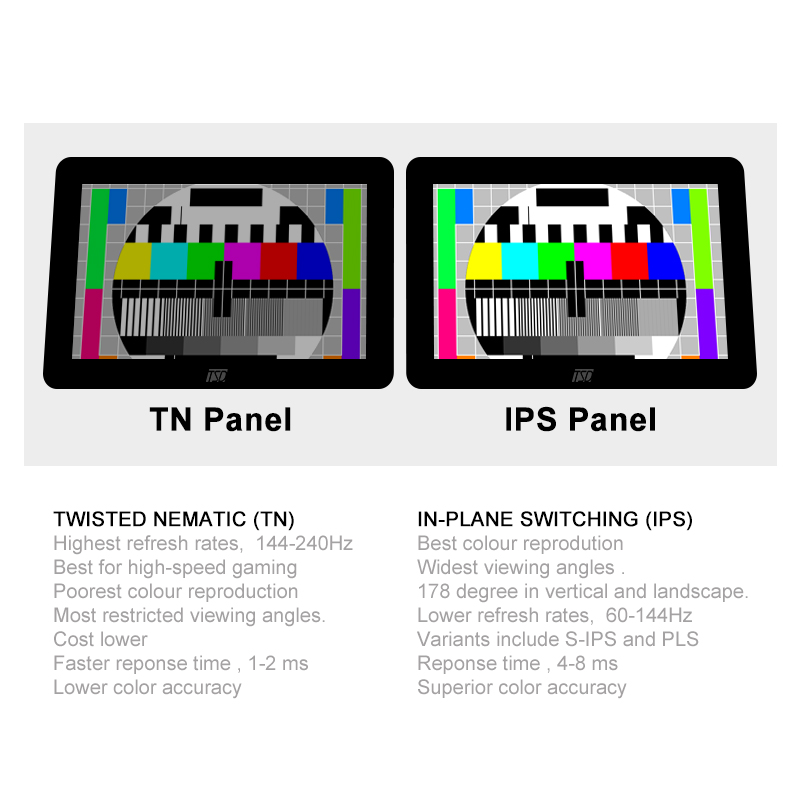

TST025WVBH-01 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and  a bacj light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 2.47 inch diagonally measured active area with Z6 resolutions.Each pixel is divided into Red, Green, Blue donts which are arranged in 2 domain stripe and this panel can display 16.7M colors.

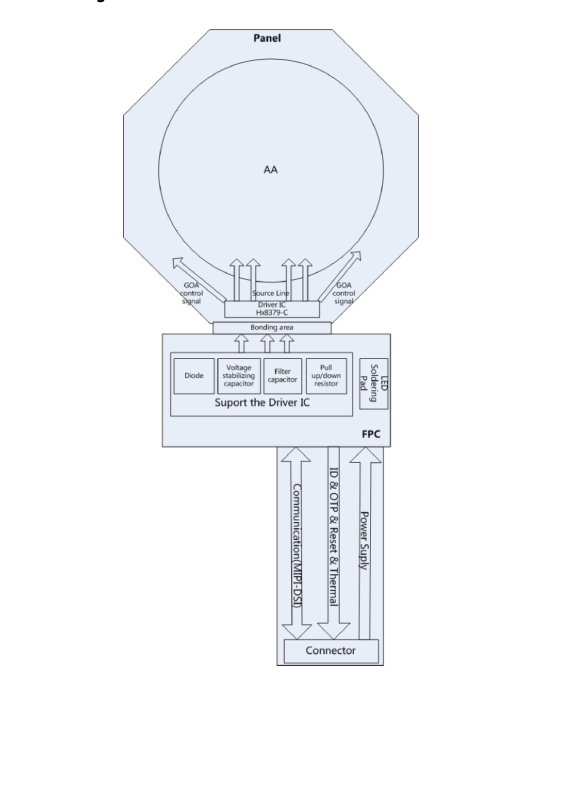

Drawing:



Specifications:



General Specification

Part No.

TST025WVBH-01

Outline Dimension(mm)

69.19x71.74x2.45

Active Area(mm)

62.64x62.64

Resolution(dots)

480xRGBx480

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Number of Pixel(pixels)

320RGB(H)xRGBx480V)

Touch panel

No

Driver IC

ILI9488

Pixel arrangement

RGB-stripe

Display mode

Normal white,TN, 3.5 inch TFT

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

MIPI

Module lifetime(Hours)

25g



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
