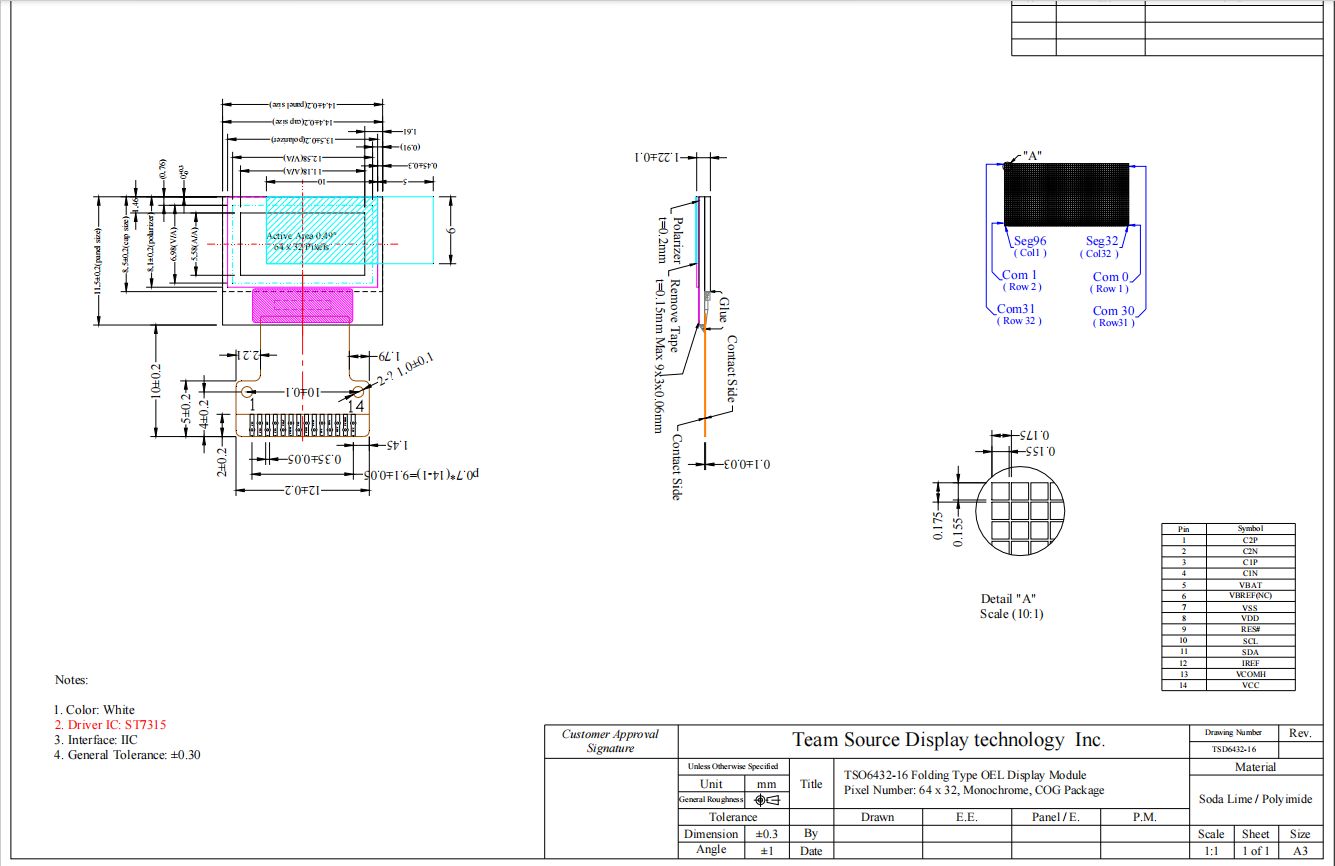

TSD 0.49 inch OLED 64x32 PMOLED display panel

General Specification

Part No.

TSO6432-16

Dot Matrix

64(W)×32(H)

Pixel Size

0.155(W)×0.155(H)

Pixel Pitch

0.175(W)×0.175(H)

Active Area

11.18(W)×5.58(H)

Panel Size

14.5(W)×11.6(H)×1.22(T)

Touch panel

without

Display mode

Passive matrix

Diagonal A/A Size

0.49

Module Weight

0.405g±10%

Pins Description

Pin No.

Symbol

Description

1

C2P

Pin for charge pump capacitor; Connect to each other with a capacitor.

Connect to each

2

C2N

 Negative Terminal off tthe Flying Boost Capacitor

3

C1P

 Pin for charge pump capacitor; Connect to each other with a capacitor.

4

C1N

 Negative Terminal off tthe Flying Boost Capacitor

5

VBAT

Power supply for charge pump regulator circuit.

6

VBREF

NC

7

VSS

Ground off Logic Circuit

connected to external ground.

8

VDD

Power supply

9

RES#

This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is

executed.Keep this pin HIGH (i.e. connect to VDD) during normal operation.

10

SCLK

Clock input.

11

SDA

Data input

12

 IREF

This is segment output current reference pin.

A resistor should be connected between this pin and VSS to maintain the IREF.

13

VCOMH

The pin for COM signal deselected voltage level.

A capacitor should be connected between this pin and VSS.

14

 VCC

Power supply for panel driving voltage. This is also the most positive power voltage

supply pin. When charge pump is enabled, a capacitor should be connected between

this pin and VSS.
