Description:
TST050WVBS-S24-B0 is 5 inch IPS TFT lcd display with RGB interface. Resolution is 800x480, with Sitronix driver chip. This 5 inch TFT is transmissive type, IPS display with full viewing angle. Outline dimension of LCM is 120.7x75.8x2.95mm, LCD active area is 108x64.8mm. Surface luminance is 1000 cd/m2 high brightness, suitable for outdoor applications of two wheels. LED life time is 30,000 hours typically. Operating temperature is -30 to 80℃, storage temperature is -30 to 85℃.

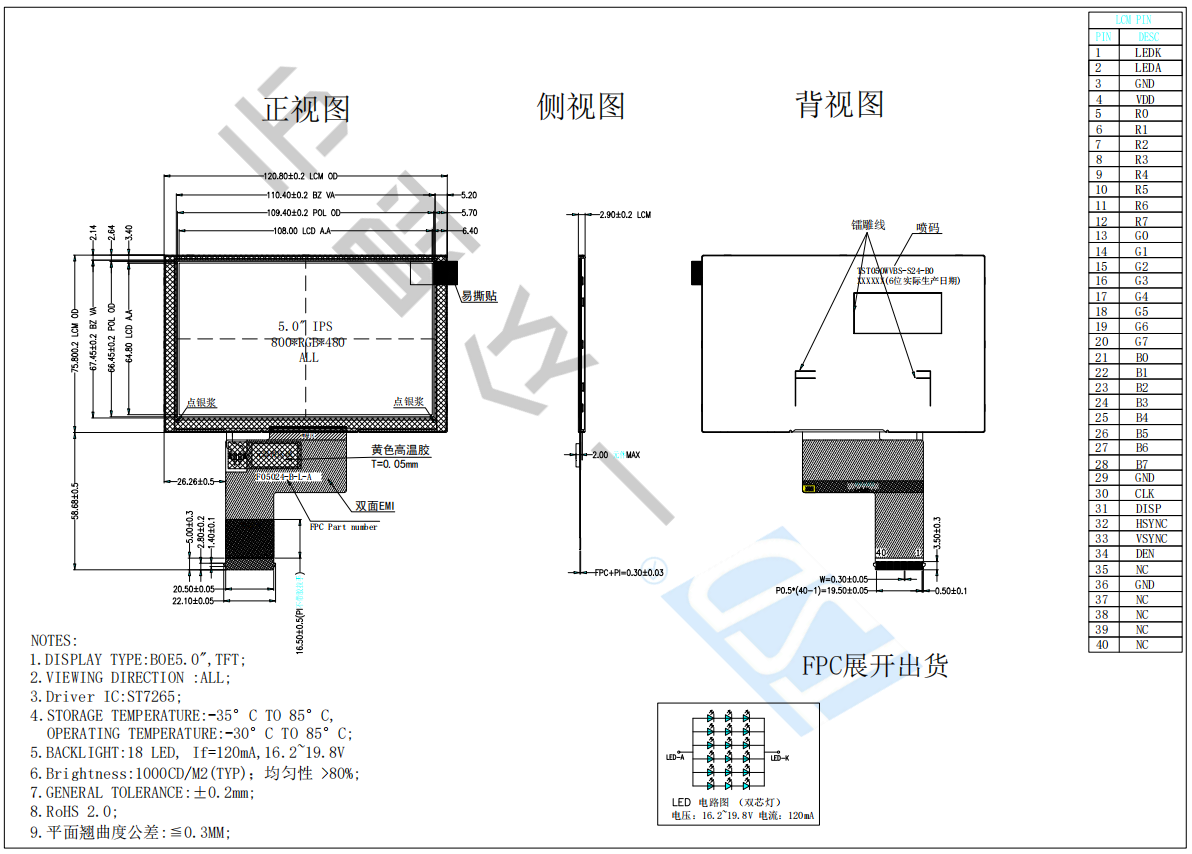

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST050WVBS-S24-B0 | |
| Outline Dimension(mm) | 120.7x75.8x2.95 | |
| Active Area(mm) | 108x64.8 | |
| Resolution(dots) | 800x480 | |
| Operating temperature(°C) | -30 ~ +80°C | |
| Storage temperature(°C) | -30 ~ +85°C | |
| Number of Pixel(pixels) | 800(H)xRGBx480(V) | |
| Touch panel | without | |
| Brightness | 1000 cd/m2 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 5 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB | |
| Module lifetime(Hours) | 30,000-40,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LED- | LED Backlight (Cathode) |
| 2 | LED+ | LED Backlight (Anode) |
| 3 | GND | Power ground |
| 4 | VDD | Power supply +3.3V |
| 5~12 | R0~R7 | Red Data |
| 13~20 | G0~G7 | Green Data |
| 21~28 | B0~B7 | Blue Data |
| 29 | GND | Ground |
| 30 | PCLK | Dot clock signal input. Latching input data as its rising edge. |
| 31 | DISP | Display on/off |
| 32 | HSYNC | Horizontal sync input. Negative polarity |
| 33 | VSYNC | Vertical sync input. Negative polarity |
| 34 | DE | Data enable input. Active high to enable the input data bus |
| 35 | NC | No connection |
| 36 | GND | System ground |
| 37 | NC (XR) | RTP control pin, no use please NC |
| 38 | NC (YD) |
RTP control pin, no use please NC |
| 39 | NC (XL) | RTP control pin, no use please NC |
| 40 | NC (YU) | RTP control pin, no use please NC |
Applications:
Crystal-Clear Visibility: High-resolution LCD screen offers sharp, bright, and easy-to-read information under all lighting conditions—day or night.
Comprehensive Data Dashboard: Monitor your speed, battery level, remaining range, riding mode, and motor performance at a glance.
Smart Connectivity: Integrated Bluetooth support allows seamless pairing with your smartphone for calls, messages, navigation, and music control.
Enhanced Safety Alerts: Real-time notifications for low battery, system errors, and maintenance reminders keep you aware and ahead of potential issues.
Rider-Customizable Interface: Personalize your display layout and choose what data matters most to you.
