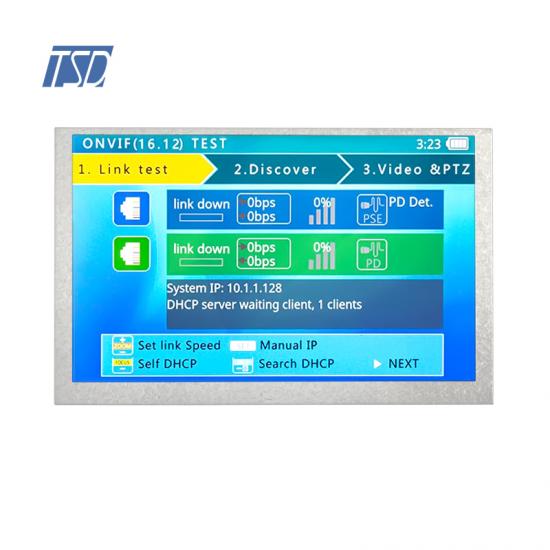

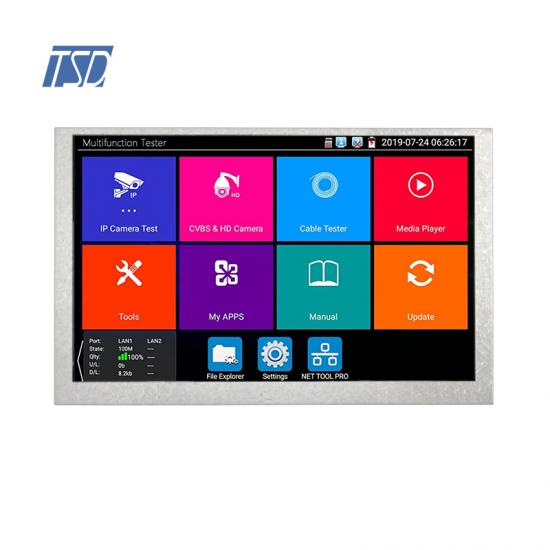

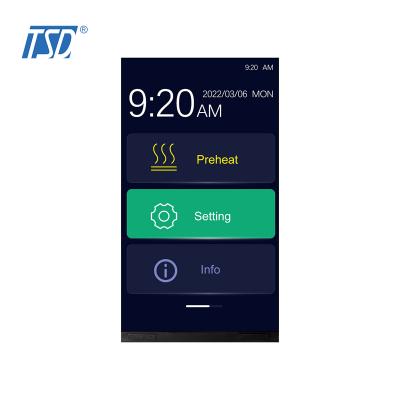

TSD 800x480 resolution 5 inch lcd module automotive display with RGB interface

  • Model Name: TST050WVBS-105
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: ST7262-G4-E
  • Interface: RGB
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST050WVBS-105 is a 5 inch tft lcd module with 50 pins RGB interface, it's automotive grade display with wide temperature range. Surface luminance is 1000 cd/m2, available to add our standard and customized touch screen. Resolution is 800x480, LCD type is IPS, normally black, transmissive mode. Surface treatment is Anti-glare, color depth is 16.7M, backlight color is white, 21pcs LEDs.




Drawing:



5 inch tft lcd module


Specifications:



General Specification
Part No.  TST050WVBS-105
Outline Dimension(mm)  121x78.8x7
Active Area(mm) 108x64.8
Resolution(dots) 800x480
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  without
Brightness 1000 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 VLED+ Power for LED backlight (Anode)
2 VLED+ Power for LED backlight (Anode)
3 VLED- Power for LED backlight (Cathode)
4 VLED- Power for LED backlight (Cathode)
5 GND Power ground

6

VCOM Common voltage
7 VDD Power for Digital circuit
8 MODE DE/SYNC mode select
9 DE Data input enable
10 VSYNC Veritical Sync Input
11 HSYNC Horizontal Sync input
12~19 B7~B0 Blue data
20~27 G7~G0 Green data
28~35 R7~R0 Red data
36 GND Ground
37 DCLK Sample clock
38 GND Ground
39 SHIR Left/right selection
40 UDDN Up/down selection
41 VGH Gate on voltage
42 VGL Gate off voltage
43 NC No connect
44 AVDD Power for Analog circuit
45 NC No connect
46 VCOM Common voltage
47 DITHB Dithering function
48 GND Ground
49 NC No connect
50 NC No connect




Features:



TSD is committed to becoming a leader in smart vehicle displays and solutions. TSD's automotive displays cover products from 3.5 inches to 15 inches, including car center controls, instruments, rearview mirrors, audio-visual entertainment, head-up displays and other series. They feature high contrast, high color gamut, high integration (TDDI), narrow borders, and high Reliability and other characteristics. It has established project cooperation with dozens of domestic and foreign car manufacturers to provide customers with diversified, convenient and fast one-stop services, and is committed to becoming customers' closest partner.

  •
  • 5.7 inch tft lcd
