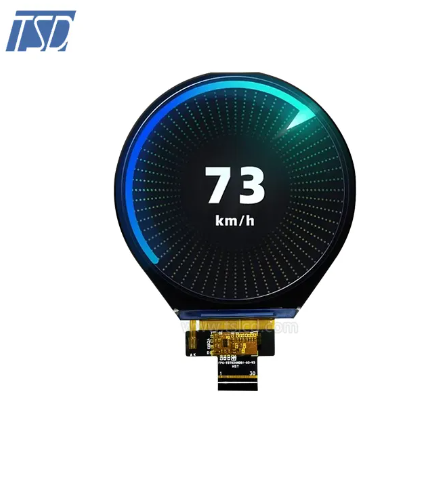

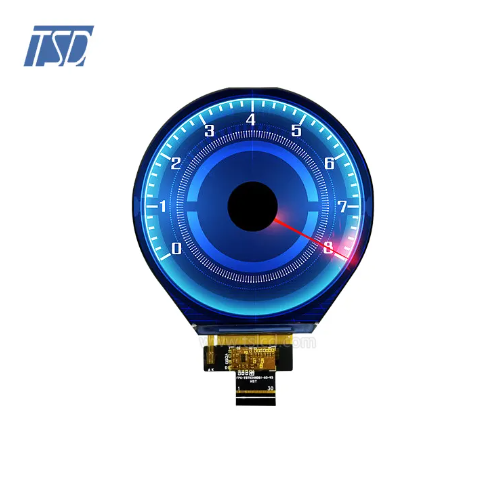

TSD 3.4 Inch TFT LCD 800*800 resolution MIPI interface

LCD Type: Transmissive,Normally black,IPS

Resolution: 800x (RGB) × 800

View Direction: ALL o'clock

LCD driver IC: ILI9881C-05

Interface types:4 MIPI

Operating voltage: 2.8~3.3V

With TP/Lens: without

Backlight: 8LEDS 40mA,12.0V

Surface luminance: 250(typ)

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TST034HDBI-03 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 94.6x96.6 mm diagonally measured active area with 800xRGBx800 resolutions.

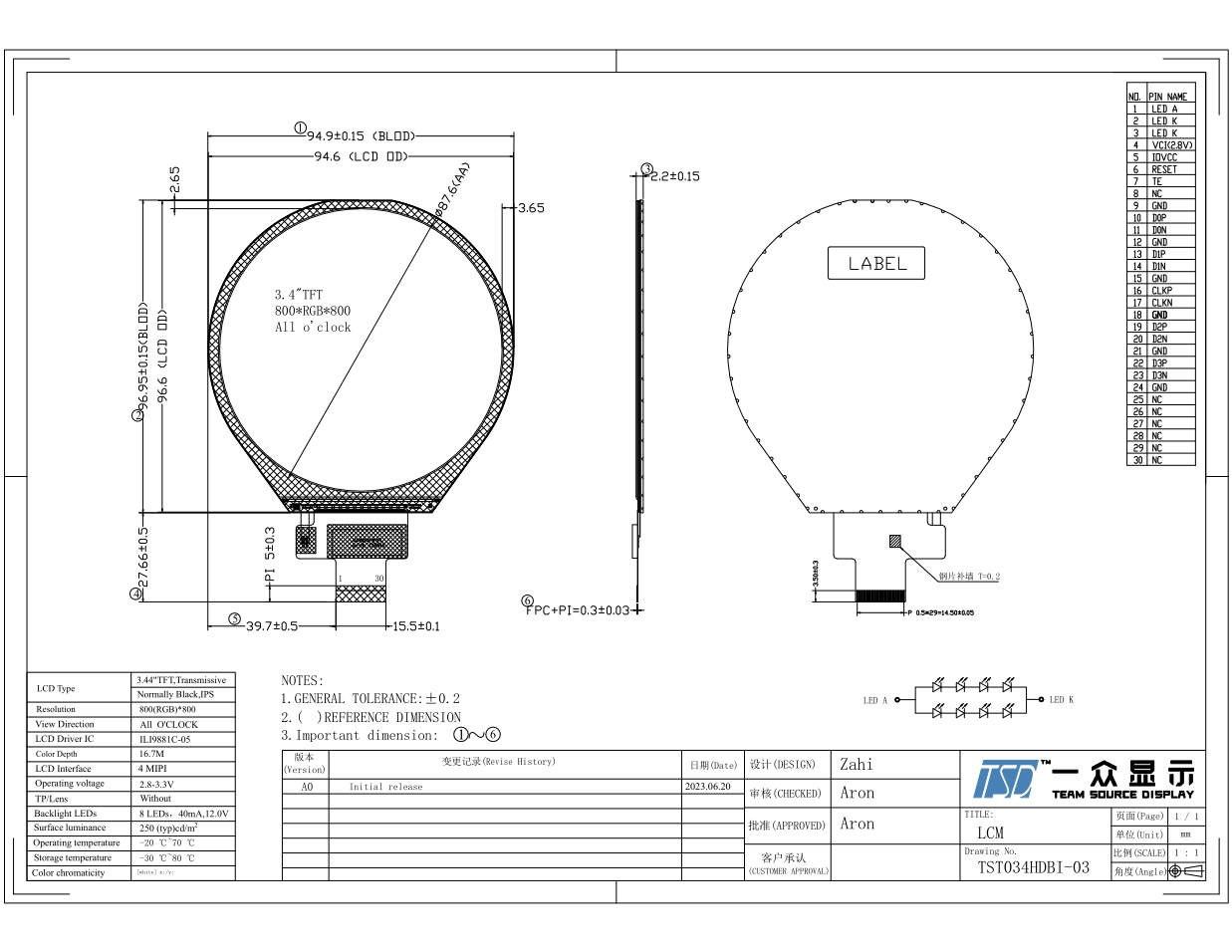

Drawing:



Specifications:

General Specification

Part No.

TST034HDBI-03

Outline Dimension(mm)

94.6(H) x 96.95(V) x2.2(T)

Active Area(mm)

87.6 (H) x 87.6 (V)

Resolution(dots)

800x (RGB) × 800

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

250(typ)

Touch panel

No

Pixel arrangement

RGB-stripe

Display mode

Normally black,IPS

Surface treatment

Antiglare

View direction

All o’clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)



B/L system

TBD(Typ.)

Interface

4 MIPI

Driver IC

ILI9881C-05





PIN Define

1

LEDA

Anode of LED backlight

2-3

LED K

Cathode of LED backlight

4

VCI(2.8V)

Power voltage

5

IOVCC P

Power voltage

6

RESET

Reset signal input pin

7

TE

Tearing effect Output pins

8

NC

No connect

9

GND

Power ground

10

D0P

High speed interface data differential signal input pins.

11

D0N

High speed interface data differential signal input pins.

12

GND

Power ground

13

D1P

High speed interface data differential signal input pins.

14

D1N

High speed interface data differential signal input pins.

15

GND

Power ground

16

CLKP

High speed interface clock differential signal input pins.

17

CLKN

High speed interface clock differential signal input pins.

18

GND

Power ground

19

D2P

High speed interface data differential signal input pins.

20

D2N

High speed interface data differential signal input pins.

21

GND

Power ground

22

D3P

High speed interface data differential signal input pins.

23

D3N

High speed interface data differential signal input pins.

24

GND

Power ground

25-30

NC

No connect



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
