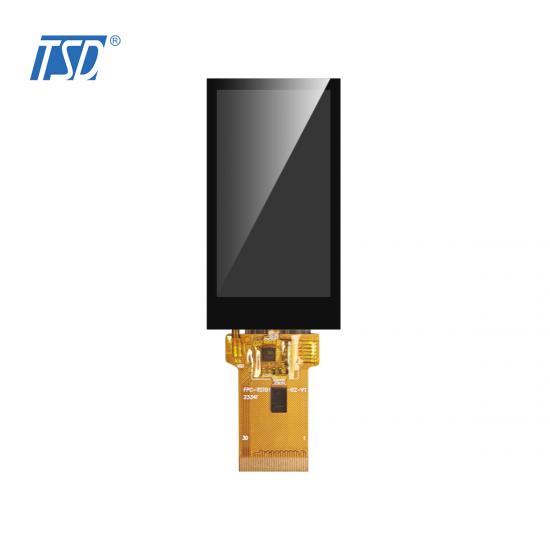

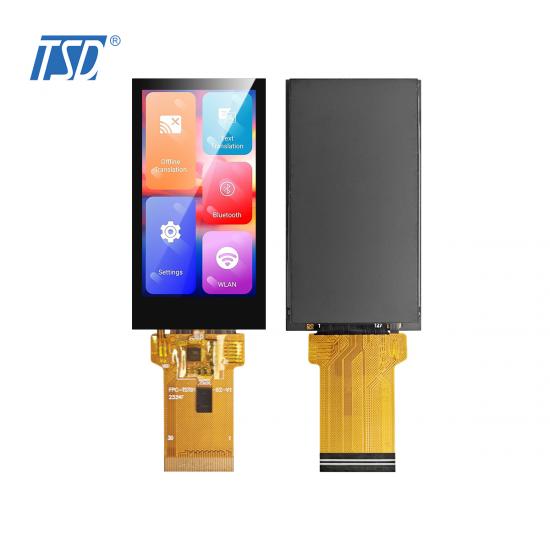

TSD customized 1.9inch oncell 170x320 IPS TFT with touch panel with coverglass

  • Model Name: TST019QVBS-xxC
  • LCD Type: 1.9 inch TFT LCD display
  • Resolution: 170x320
  • Viewing angle: All o'clock
  • Customized CTP,  customized coverglass , support full customization
  • Brightness: 300 cd/m2
  • Driver IC: ST7789V2
  • Capacitive touch panel IC:  CF1114 / CF4320M
  • Interface: MCU 8 bits / SPI
  • Touch Screen: with capacitive touch panel
  • Operating Temperature: -10 ~ +60℃
  • Storage Temperature: -20 ~ +70℃

Description:

TSD customized TST019QVBS-xxC is a 1.9 inch ft lcd module in 170x320 resolution, it is with oncell touch and a cover glass. Interface is MCU 8 bits or SPI interface, in 30 pins, and could be customed for other pinmap. Brightness is 300 nits. Backlight current is 60mA and backlight voltage is 3.2V, with 4 backlight LEDs. This 1.9 inch TFT LCD module is designed with ST7789V2, viewing direction is all o'clock, color depth is 65K/262K, white backlight and transmissive type.


Drawing:




Specifications:



General Specification
Part No.  TST019QVBS-xxC
Outline Dimension(mm)

25.8x49.72x1.48

Active Area(mm) 22.7x42.72
Resolution(dots) 170x320
Operating temperature(°C) -10 ~ +60°C
Storage temperature(°C) -20 ~ +70°C
Number of Pixel(pixels) 170(H)xRGBx320(V)
Touch panel  with CTP
Driver IC ST7789V2
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 1.9 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU 8 bits / SPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol
1 GND
2 VCI
3 IM2
4 IM1
5 RESET
6 CS
7 DC(SPI-SCL)
8 WR(SPI-RS)
9 RD
10 SDA
11 DB0
12 DB1
13 DB2
14 DB3
15 DB4
16 DB5
17 DB6
18 DB7
19 SDO
20 LED-A
21 LED-K1
22 LED-K2
23 LED-K3
24 LED-K4
25 GND
26 TP-RST (2.8V)
27 TP-SCL (2.8V)
28 TP-SDA(2.8V)
29 TP-INT(2.8V)
30 GND




Applications:



This 1.9 inch oncell touch lcd display could be used for consumer product, such as electronic toy, smart home and advertising device.






Product Features:



TST019QVBS-xxC is a standard TFT display module, This model is 1.9 inch diagonally resolution in 170 horizontal by 320 vertical pixel array). Each pixel is divided into Red, Green, Blue dots, and this panel can display 65K/262K colors. Regarding backlight, brightness is 900 nit and 3 LEDs, current is 60mA  and voltage 3.2V.
