Description:

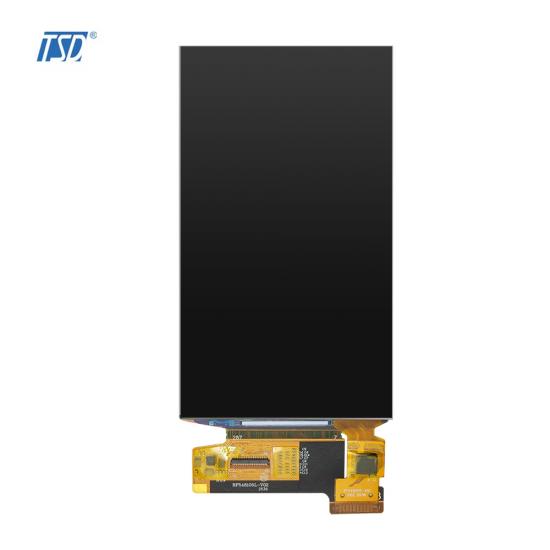

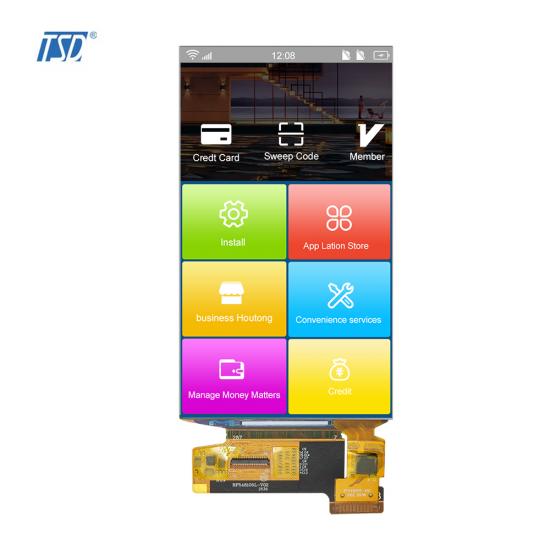

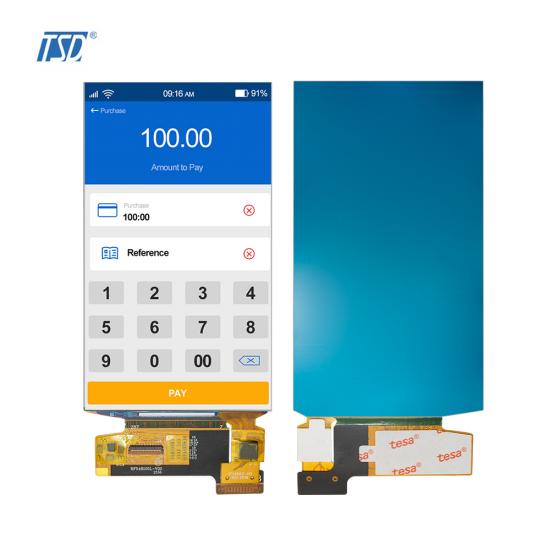

The 5.48 inch AMOLED display is a high-resolution, active-matrix organic light-emitting diode panel designed for demanding industrial, automotive, and professional applications. Featuring a Full HD+ resolution of 1080 × 1920 pixels and a MIPI DSI interface, it delivers vivid colors, deep blacks, and ultra-fast response times. The module integrates a projected capacitive (PCAP) touch panel and is engineered to operate reliably across a wide temperature range, making it suitable for both indoor and semi-outdoor environments.

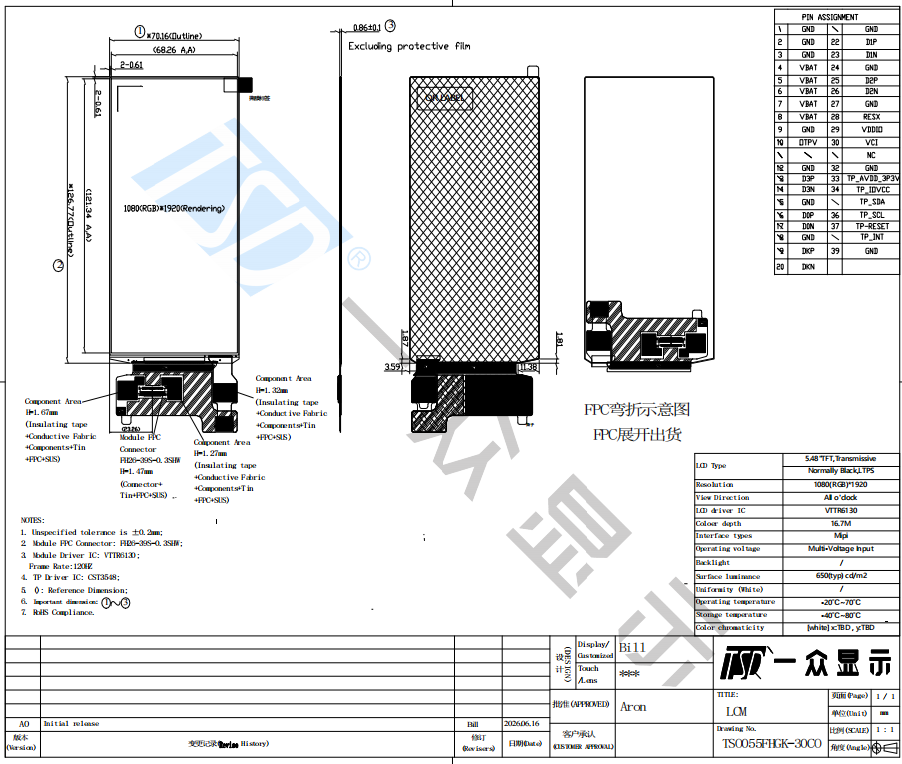

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TSO055FHGK-30CO |
|
|
Display Size(Diagonal) |
5.48 inch |
|
|
LCD type |
AMOLED |
|
|
Resolution |
1080*RGB *1920 |
|
|
View Direction |
All |
|
|
Module Outline |
31.28(H) ×30.3(V)×1.45(T) (Note 1 ) |
|
|
Active Area |
27.58 (H)×24.13(V) |
|
|
Viewing Area |
ALL |
|
|
Display Colors |
65K |
|
|
Interface |
MIPI |
|
|
Driver IC |
CH13721 |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
GND |
Ground |
|
2 |
GND |
Ground |
|
3 |
GND |
Ground |
|
4 |
VBAT |
Power supply for POWER IC |
|
5 |
VBAT |
Power supply for POWER IC |
|
6 |
VBAT |
Power supply for POWER IC |
|
7 |
VBAT |
Power supply for POWER IC |
|
8 |
VBAT |
Power supply for POWER IC |
|
9 |
GND |
Ground |
|
10 |
OTPV |
Provide programming voltage to the internal OTP/NVM of the screen |
|
11 |
TE |
Sync Signal for preventing Tearing Effect |
|
12 |
GND |
Ground |
|
13 |
D3P |
MIPI-DSI data Lane 3 positive-end input pin |
|
14 |
DSN |
MIPI-DSI data Lane 3 negative-end input pin |
|
15 |
GND |
Ground |
|
16 |
D0P |
MIPI-DSI data Lane 0 positive-end input pin |
|
17 |
D0N |
-MIPI-DSI data Lane 0 negative-end input pin |
|
18 |
GND |
Ground |
|
19 |
DKP |
MIPI-DSI clock Lane positive-end input pin. |
|
20 |
DKN |
MIPI-DSI clock Lane negative-end input pin. |
|
21 |
GND |
Ground |
|
22 |
D1P |
MIPI-DSI data Lane 1 positive-end input pin |
|
23 |
D1N |
MIPI-DSI data Lane 1 negative-end input pin |
|
24 |
GND |
Ground |
|
25 |
D2P |
MIPI-DSI data Lane 2 positive-end input pin |
|
26 |
D2N |
MIPI-DSI data Lane 2 negactive-end input pin |
|
27 |
GND |
Ground |
|
28 |
RESET |
Display reset. Active low |
|
29 |
VDDIO |
Power Supply for display logic circuit |
|
30 |
VCI |
Power Supply for Analog circuit |
|
31 |
NC |
No connect |
|
32 |
GND |
Ground |
|
33 |
TP_AVDD_3.3V |
Analog Power for TP |
|
34 |
TP_IOVCC |
Power Supply for Logic |
|
35 |
TP_SCA |
Touch panel.I2C data input and output. |
|
36 |
TP_SCA |
Touch panel.I2C clock input |
|
37 |
TP_RESET |
Reset pin, the TP is initialized when RESX active Low. |
|
38 |
TP_INT |
Interrupt request to the host,or Wakeup request from the host |
|
39 |
GND |
Ground |
