TSD 1.3 Inch round rotary switch display HMI Knob TFT LCD Display Solution



  • Model Name: TSS13002
  • LCD Type: 1.3 inch konb display
  • Resolution: 240x240
  • Viewing angle: All o'clock
  • Storage method: 64Mbit norFlash (Support customize)
  • Controller: STM32G07
  • Interface: UART
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃









Description:



TSD TFT item number TSS013002 is 1.3 inch, 240x240 resolution, 300nits brightness,  IPS round TFT LCD display with UART interface. This 1.3 inch knob display is most suitable for smart home applications such as coffee machines, washing machines, smart toilets, thermostats, air conditioner controllers, etc., we can provide a complete HMI solution for you.



This knob solution is a serial communication TFT color screen display knob switch module based on the RTOS/STM32 platform. Through optimization algorithms, it achieves rapid collaboration among themain chip, display screen, and encoder switch, resulting in excellent screen refresh rate and dynamicdisplay effect. The module adopts an integrated design, and the screen, electric control, and coding switchare integrated into one body, with excellent reliability and excellent control feel. It is suitable for variousapplication scenarios that require button control, such as home appliances,smart homes,car centralcontrols, beauty equipment, and industrial controls.

STM32 smart knob display


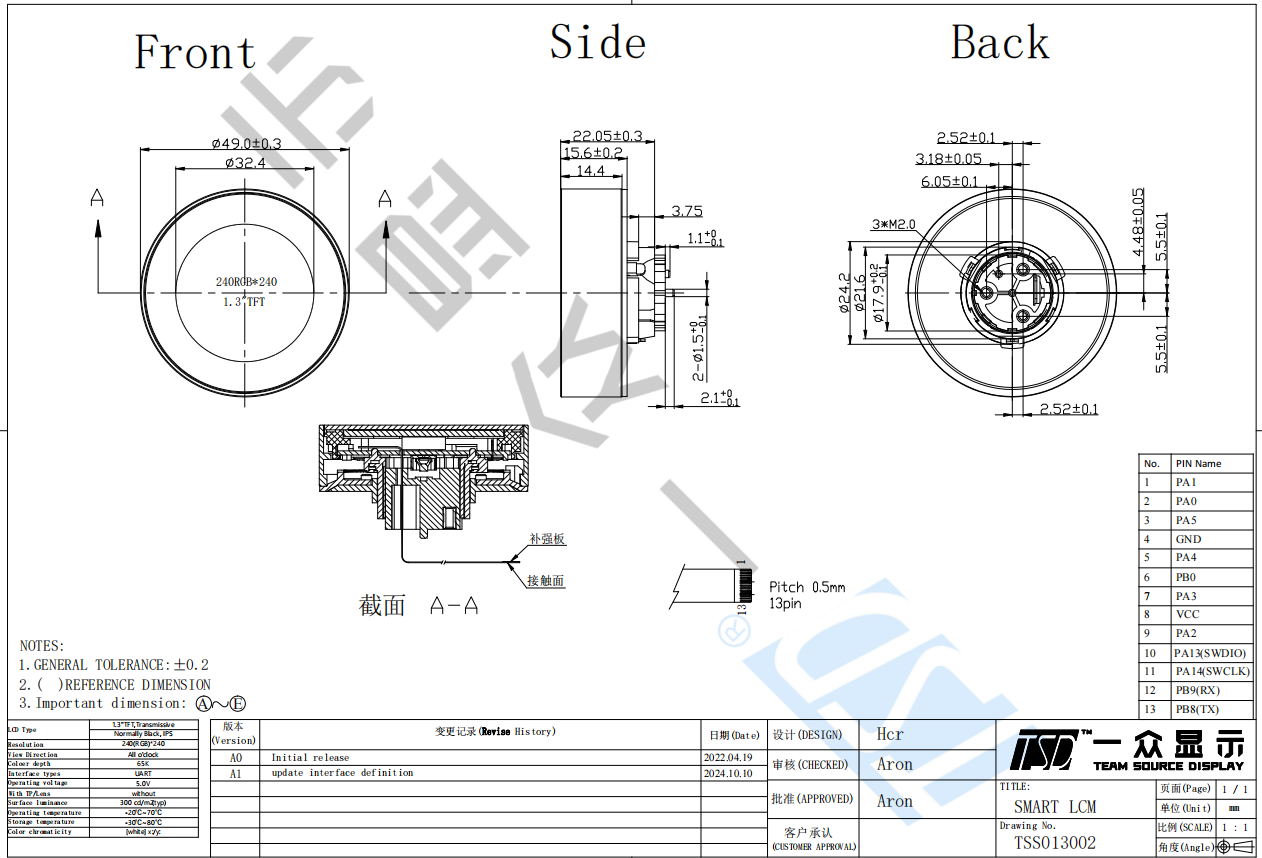

Drawing:



smart knob display


Specifications:



General Specification
Part No.  TSS013002
Outline Dimension(mm)

49(W)x49.0(H)x22.05(D)

Active Area(mm) 32.4(W) x 32.4(H)
Resolution(dots) 240x (RGB) × 240
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx240V)
Touch panel  without
Driver IC STM32G07
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 1.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 50,000-100,000





Interface Definition
Pin No.  Symbol Description
1 5V Power 4.5V~5.5V, typical value 5V/100mA
2 GND Ground
3 SWD SWD Date 3.3V
4 SWC SWD CLK 3.3V
5 TX UART TX 3.3V
6 RX UART RX 3.3V




  • Features:
  •
  • Display Specifications: 1.3" IPS dislay with 240*240 resolution
  • Storage method: 64Mbit norFlash(Support customize)
  • Operation type: Rotate and press
  • Ambient Light: RGB tricolor light circle at thebottom, customizable
  • UI content: Support customization and secondarydevelopment of TouchGFX
  • Appearance: Plastic chrome plated/2.0D/2.5Dintegrated black glass cover plate(customizable)
  • Operating voltage: 4.5V~5.5V, Typical : 5V
  • Operating current: 50mA~150mA, Typical 80mA
  • Display Color: 65K
  • Display Brightness: 300土10%cd/m2
  • Operating temperature: -20C~70C/96H
  • Storage temperature: -30C~80°C/96H




  • Advantages:
  •
  • Simple and easy operation mode: left and right unblocked particle sense rotation+ axial pressure sponge rebound
  • Color OCA optical bonding with excellent seamless performance outer ring
  • Fancy design with Bottom RGB atmosphere lamp circle
  • STM32G07, 64MHZ main frequency, 128Mbit storage, software deisgn supported
  • Long rotation life time, up to 30000 times (positive 1 week + negative 1 week counts as 1 time ), the pressing life is more than 30,000 times
  •

smart knob display module STM32



  •
