Description:
TST050WVBS-105 is 5 inch 800x480 resolution LCD display with RGB interface, standard brightness is 1000cd/m2. For this 5 inch TFT LCD module, driver IC is ST7262, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade and automotive application.
| Specification | ||
| Part No. | TST050WVBS-105 | |
| Outline Dimension(mm) | 120.70x75.80x2.9 | |
| Active Area(mm) | 108.00x64.80 | |
| Resolution(dots) | 800*RGB*480 | |
| Operating temperature(°C) | -30-80 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) | |
| Touch panel | without | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal black,IPS, 5.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | RGB | |
| Module lifetime(Hours) | 50,000-100,000 | |

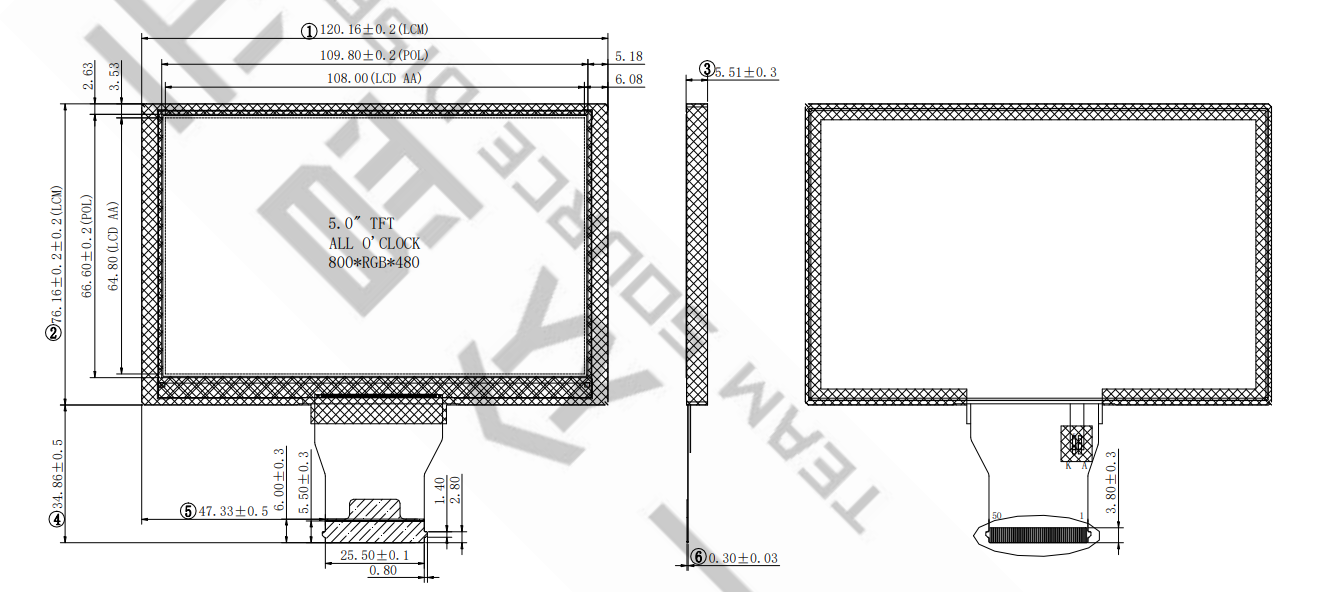

Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | VLED+ | Power for LED backlight (Anode) |
| 2 | VLED+ | Power for LED backlight (Anode) |
| 3 | VLED- | Power for LED backlight (Cathode) |
| 4 | VLED- | Power for LED backlight (Cathode) |
| 5 | GND | Power ground |
| 6 | Vcom |
Common voltage |
| 7 | Vdd | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VSYNC | Vertical Sync Input |
| 11 | HSYNC | Horizontal Sync Input |
| 12-19 | B0-B7 | Blue data(MSB) |
| 20-27 | G0-G7 | Green data(MSB) |
| 28-35 | R0-R7 | Red data(MSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power Ground |
| 39 | SHLR | Left / right selection |
| 40 | UDDN | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin. |
| 45 | NC | No connection |
| 46 | VcoM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49-50 | NC | No connection |
Applications:
For our 5 inch LCD display TST050WVBS-105, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.5‘’ 800*480 res. with 50pin RGB interface
2. IPS lcd full viewing angle
3.high brightness up to 1000nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
