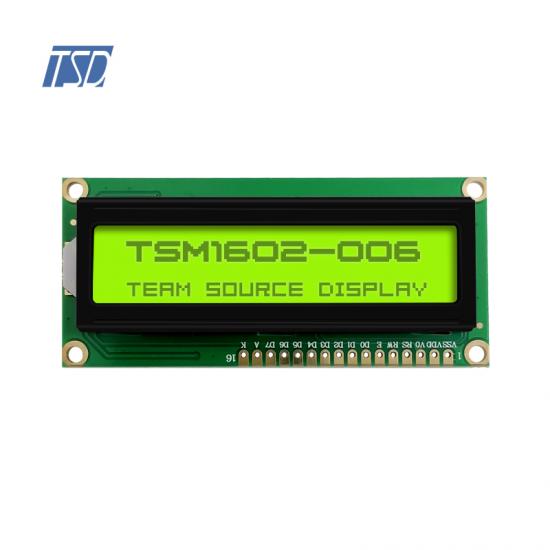

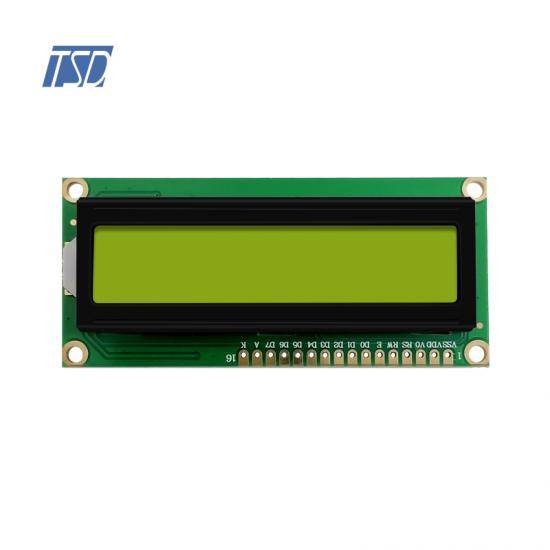

TSD 16*2 dots STN/POSITIVE mono lcd display 6 o'clock

LCD Type: STN/POSITIVE/TRANSFLECTIVE

Polarizer color:（Y-G）

Diver method: 1/16 DUTY, 1/5BIAS

View Direction: 6 o'clock

LCD driver IC : ST7066-OB/(TP7660)

Character: English / Europe

Operaiong Voltage :VDD=3.3V

Backlight: Y-G V=3.3V/I=20MA

Operating temperature: -10℃~60℃

Storage temperature: -20℃~70℃

Inquiry now

TSD has our own workshop for the capacitive touch panels, we can customize different size, resolution, color, shape of the capacitive touch panels.

Support logo printing, through holes, transparent windows, silk printing etc.

Support air bonding (tape bonding), optical bonding (OCA bonding, OCR bonding).

Support AG, AF, AR coating on the surface of the cover lens, and make anti-UV designs.

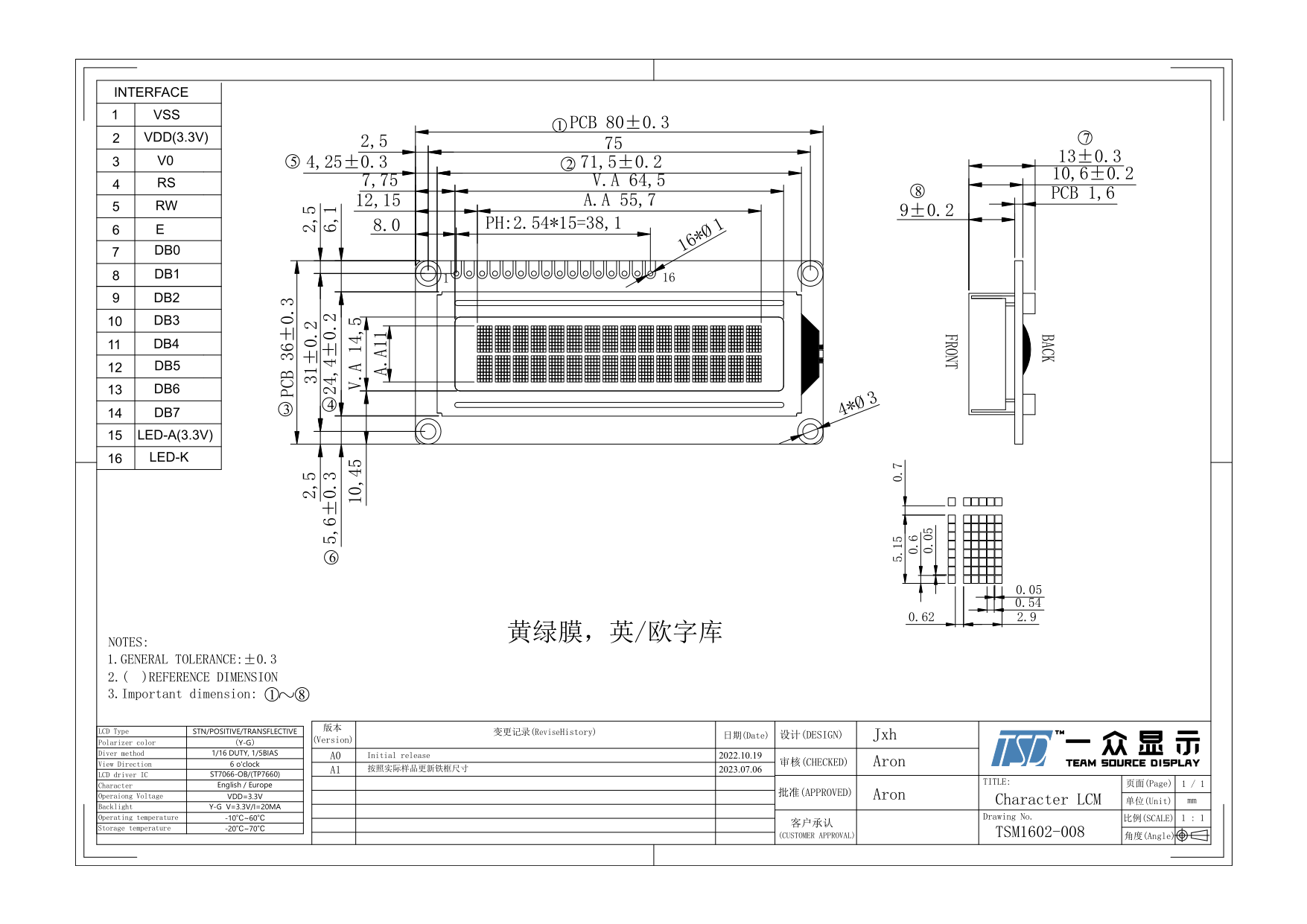

Drawing:

Specifications:

General Specification

Part No.

TSM1602-008

Size

16*2 dots

Type

STN/POSITIVE/TRANSFLECTIVE

Resolution(dots)

16*2 dots

Operating temperature(°C)

-10℃~60℃

Storage temperature(°C)

-20℃~70℃

Operaiong Voltage

VDD=3.3V

Backlight

Y-G V=3.3V/I=20MA

Driver IC

ST7066-OB/(TP7660)

Display mode

 STN/POSITIVE/TRANSFLECTIVE

Surface treatment

Antiglare

View direction

6H o'clock

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Applications:

1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
