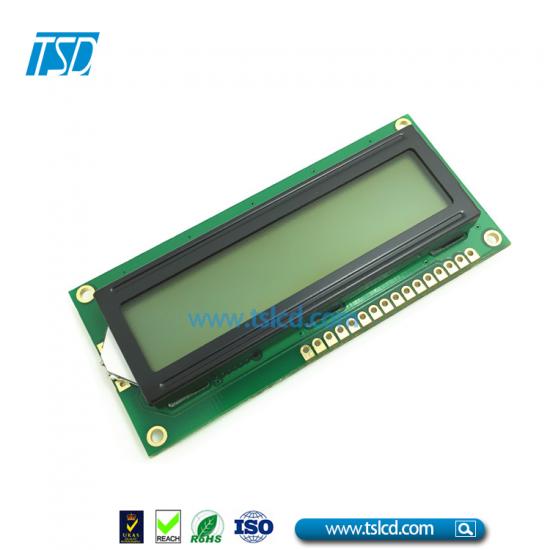

TSD 16x2 STN character LCD display Yellow green type positive



  • Model Name: TSM1602-20B
  • LCD Type: 16*2 dots lcd
  • Resolution: 16*2
  • Viewing angle: 6H
  • Driver IC: ST7066-0B
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



 Description:

The TSM1602-20B is a 16*2 dots dot-matrix LCD module. It has a STN panel composed of 16segments and 2 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Display Character

16 character x 2 lines

Display background color

STN, Yellow/Green backlight

Polarize mode

Positive, Transflective

Outline Size(mm)

80.0x36.0x12.6

Active Area(mm)

64.4x14.8

Viewing Angle

6 O'clock

Diver IC

NV3035GTC

Character font

5x8 dots + cursor

Dots size(mm)

0.6x0.54

Character Size(mm)

2.9x5.15

Character pitch(mm)

0.352x585

Power

5V

Character Generator RAM

TBD64X8 bits

Display Data RAM

40X8 bits

Character Generator ROM

8320 bits

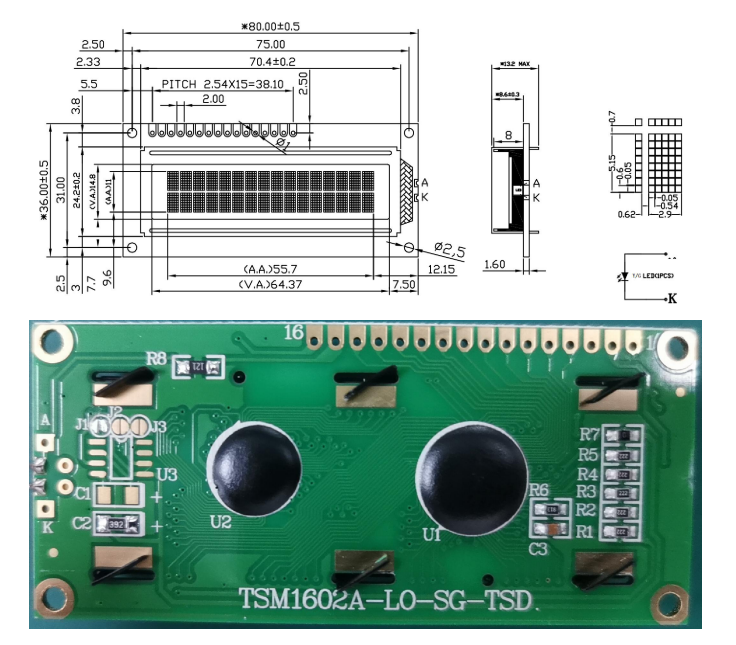

Drawing:

Interface Description:

PIN SYMBOL
1 VSS
2 VDD
3 V0
4 RS
5 R/W
6 E
7 DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 A
16 K



Applications:

For our 1602 dots character lcd TSM1602-20B , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.1602 dots lcd with 16pins

2. 5v working Voltage

3.ST7066-0B IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
