TSD 8x2 character lcd module 8*2 dot matrix lcd display STN



  • Model Name:TSM0802-001A
  • LCD Type: 8*2 dots lcd
  • Resolution: 8*2
  • Viewing angle: 6H
  • Driver IC: ST7066U-0A
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

The TSM0802-001A is a 8*2 dots dot-matrix LCD module. It has a STN panel composed of 8segments and 2 commons. The LCM can be easily accessed by microcontroller via SPI/8080 MPU interface. We have STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Item Spec.
Display Character 8 character x 2 lines
Display type STN/FSTN/DFSTN,Positive/Negative,Transflective/ transmissive
Description 8x2 character lcd module
Driving method 1/16 DUTY, 1/5 BIAS
Outline 53.4x32.5x13.5
View Area 38.0x16.0
Active Area 27.45x11.5
Character size 2.96x5.56
Character pitch 3.55x5.94
Dot size 0.56x0.66
Dot pitch 0.6x0.7
Viewing direction 6H
Operating temperature 0°C-50°C/ -20-70℃
Storage temperature -10°C-60°C/ -30-80℃
Backlight color White LED

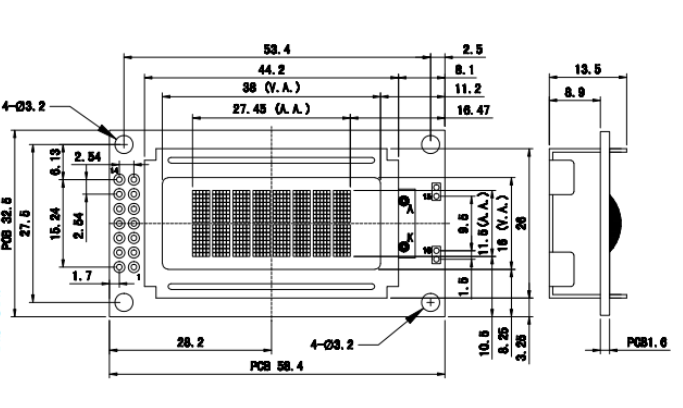

Drawing:

Interface Description:

PIN SYMBOL
1 VSS
2 VDD
3 V0
4 RS
5 RW
6 E
7 DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 LEDA
16 LEDK

Applications:

For our 8*2 dots character lcd TSM0802-001A , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.8*2 dots lcd with 16pins

2. 5V working Voltage.

3.ST7066U-0A IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
TSM0802-001A
8*2 dots display LCD Type: STN,TRANSFLECTIVE/Positive
LCD Type: STN,TRANSFLECTIVE/Positive Polarizer color: Yellow-Green Diver method: 1/16 DUTY, 1/5BIAS View Direction: 6 o'clock LCD driver IC: ST7066 OR EQU Character: English/Japanese Operaiong Voltage:VOP5.0V/VDD5.0V Connect types: PIN BACKLIGHT: Y-G , 5V,20MA Operating temperature: -20℃~70℃ Storage temperature: -30℃~80℃
