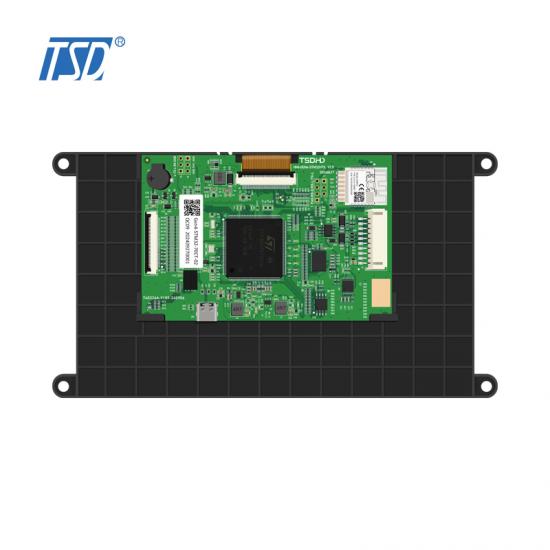

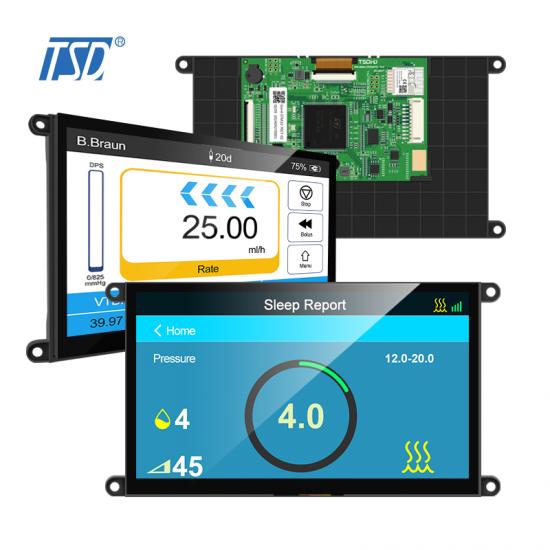

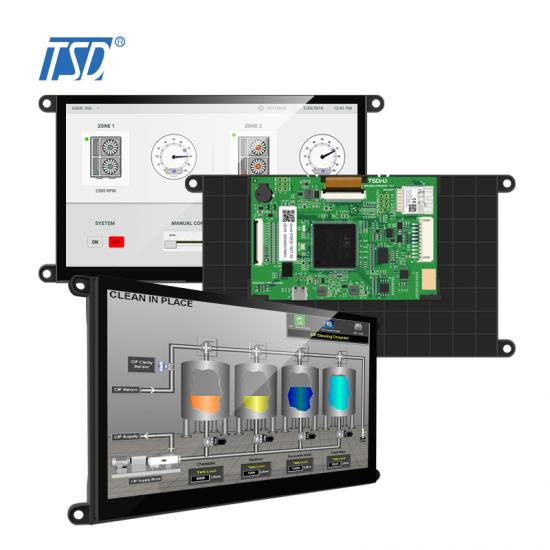

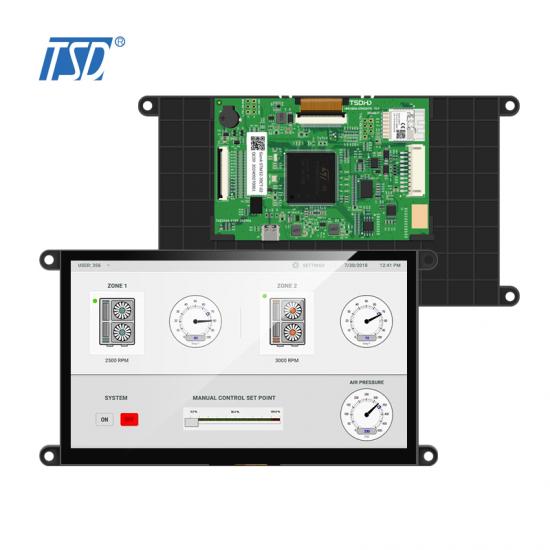

Description:
Gen5-STM32-70CT-02 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of TFT LCD panel, Backlight, Capacitive touch screen, Housing,and STM32H7S7x control board.This TFT LCD has a 4.3 (16:9) inch diagonally measured active display area with WVGA (800 horizontal by 480 vertical pixel) resolution.

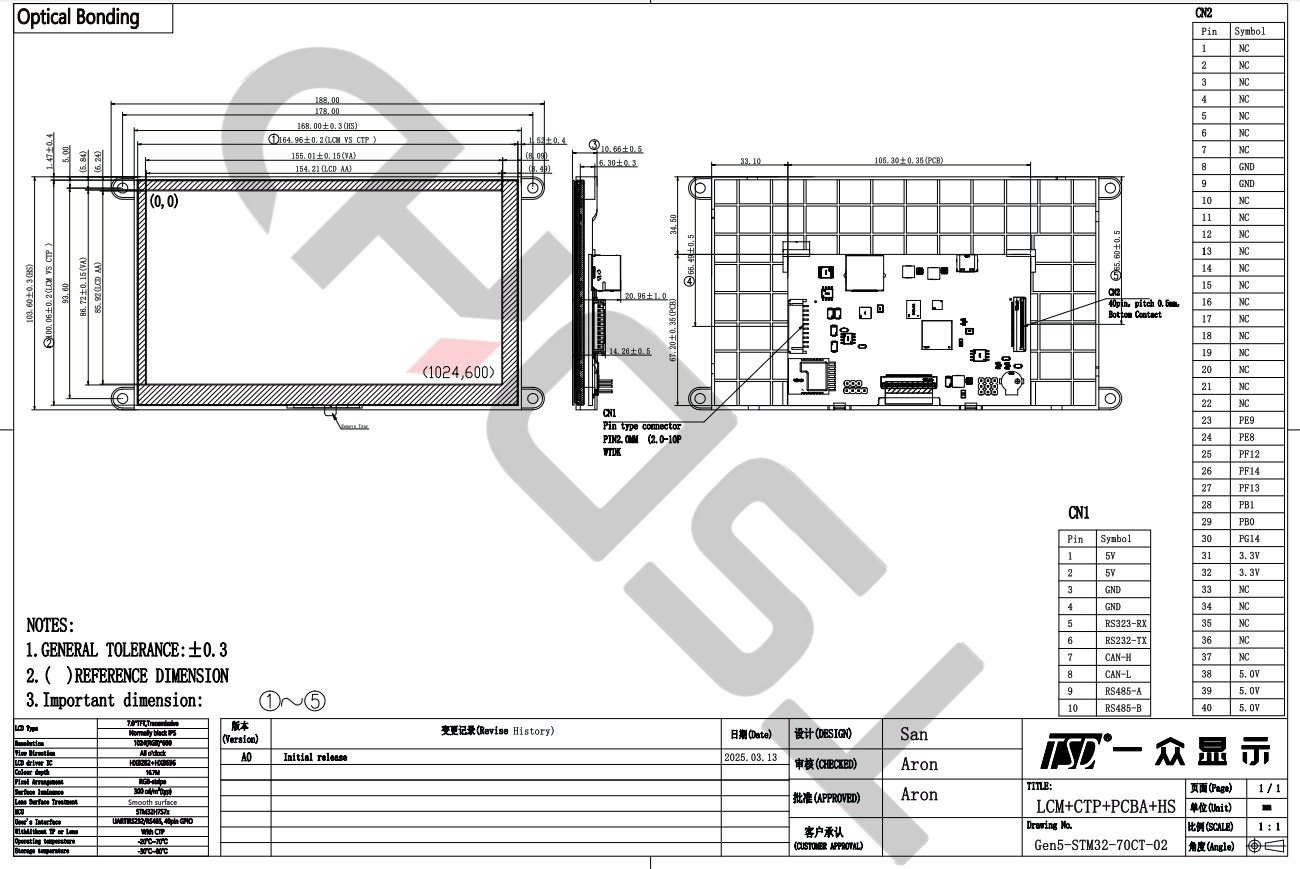

Drawing:
Specifications:
| General Specification | ||
| Part No. | Gen5-STM32-70CT-01 | |
| Outline Dimension(mm) |
188x103.6x20.96mm |
|
| Active Area(mm) | 154.21x85.92mm | |
| Resolution(dots) | 1024x (RGB) x600 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 1024RGB(H)xRGBx600(V) | |
| Touch panel | with CTP | |
| Driver IC | STM32H7R7x | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black, IPS, 7 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RS232/RS485/CAN,40pin GPIO | |
| Module lifetime(Hours) | 30,000-50,000 | |
| Interface Definition-CN1 | ||
| Pin No. | Symbol | Description |
| 1 | 5V | Power supply (+5.0V) |
| 2 | 5V | Power supply (+5.0V) |
| 3 | GND | Ground |
| 4 | GND | Ground |
| 5 | RS232-RX |
RS232 receive input |
| 6 | RS232-TX |
RS232 transmit output |
| 7 | CAN-H | Can bus data transfer, high level |
| 8 | CAN-L |
Can bus data transfer, low evel |
| 9 | RS485-A |
RS485 Driver Output/Receiver Input Non-inverting |
| 10 | RS485-B |
RS485 Driver Output/Receiver Input Inverting |
| Interface Definition-CN2 | ||
| Pin No. | Symbol | Description |
| 1~7 | NC | No connection |
| 8~9 | GND | Ground |
| 10~22 | NC | No conection |
| 23 | PE9 | TIM1_CH1, UART7_RTS/UART7_DE, FMC_A14, FMC_BA0,EVENTOUTNC |
| 24 | PE8 |
TIM1_CH1N, UART7_TX, FMC_A12, EVENTOUT |
| 25 | PF12 |
USART1_RX,SPI5_MISO,ADC1_INP6,ADC1_INN2,FMC_D19, EVENTOUT |
| 26 | PF14 | USART1_CTS,SPI5_MOSI，FMC_A24,LCD_G0,EVENTOUT, ADC2_INP6,ADC2_INN2 |
| 27 | PF13 | USART1_TX,SPI5_NSS,PSSI_D10,FMC_D20,ADC2_INP2, DCMIPP_D10,EVENTOUT |
| 28 | PB1 | TIM1_CH3N,TIM3_CH4,TIM9_CH2,FDCAN2_TX,LCD_G2 ETH_MII_TXD1/ETH_RMII_TXD1,FMC_NOE,[RNG_S2],EVENTOUT ADC12_INP5 |
| 29 | PB0 | TIM1_CH2N,TIM3_CH3,TIM9_CH1, SPI1_SCKI2S1_CK,UART4_CTS, ETH_MII_TXD0/ETH_RMII_TXD0,GFXTIM_TE,[RNG_S1], LCD_VSYNC,EVENTOUT,ADC12_INP9,ADC12_INN5 |
| 30 | PG14 | TRACED1，LPTIM1_ETR,SPI6_MOSI/I2S6_SDO,SDMMC2_D7, ETH_MII_TXD1/ETH_RMII_TXD1,FMC_D31,LCD_B1,EVENTOUT |
| 31~32 | 3.3V | 3.3V Output |
| 33~37 | NC | No connection |
| 38~40 | 5V | Power supply 5V input |
- Features:
- 1. Implementing multimodal human-computer interaction based on TouchGFX
- 2. Powerful 2.5D NeoChrom GPU - smart DMA architecture memory/GPU, High refresh rate and smooth full screen animation effects
- 3. Integrated with TUYA WiFi module, using SDIO communication, achieving high-speed remote OTA function
- 4. Rich peripheral interfaces: RS485, RS232, and CAN, with 40pin GPIO expansion interface
- 5. Integrated buzzer, support chord sounds
- 6. High reliability and performance, widely applicable to industries such as home appliances, industry, and new energy etc.
- 7. For 1024x600 resolution, it can achieve a smooth 60fps refresh rate.
