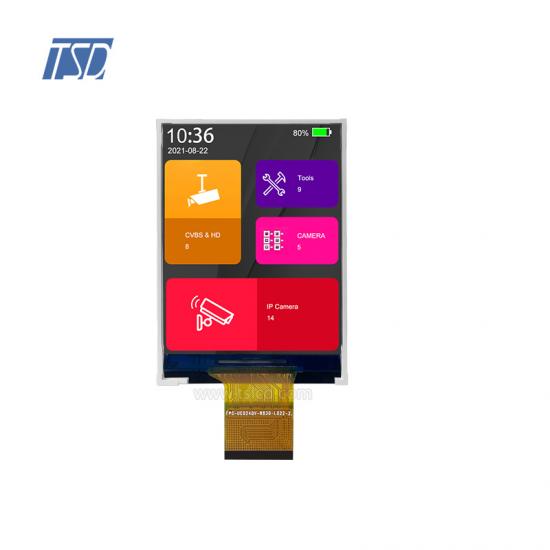

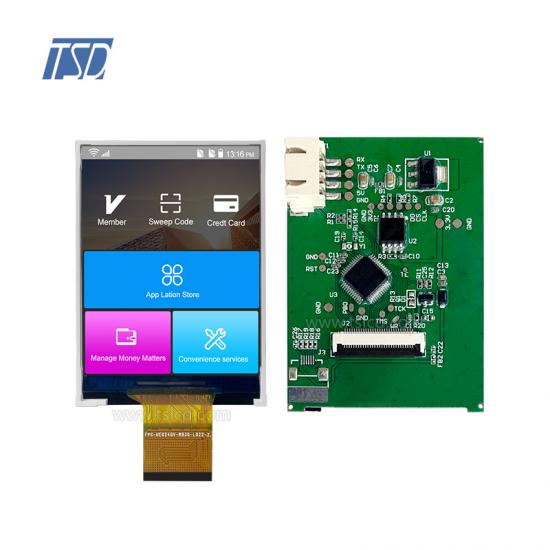

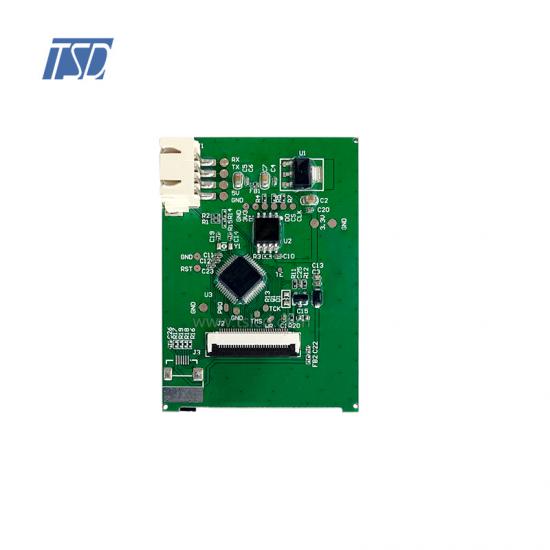

TSD GEN-4 STM32 smart display 2.4 Inch Embedded display serial port lcd module with STM32 microcontroller board



  • Model Name: Pro024QVSTM-R2101
  • LCD Type: 2.4 inch Embedded display
  • Resolution: 240x320
  • Viewing angle: All o'clock
  • Storage method: 128Mbit norFlash (customizable)
  • Controller: STM32
  • Interface: UART
  • Touch Screen: CTP ports are reserved
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃









Description:



TSD GEN-4 STM32 smart display 2.4 Inch Embedded display Pro024QVSTM-R2101 is 2.4 inch 240x320 resolution IPS round TFT LCD display with UART interface, it is a serial communication TFT color display module basedon STM32 main chip development platform. Through optimization algorithm, the main chip andthe display can cooperate quickly to make it have excellent screen refresh rate and dynamicdisplay effect. The module has the advantages of simple structure, simple circuit and highadaptability to environment, and is suitable for various display products requiring serialcommunication.

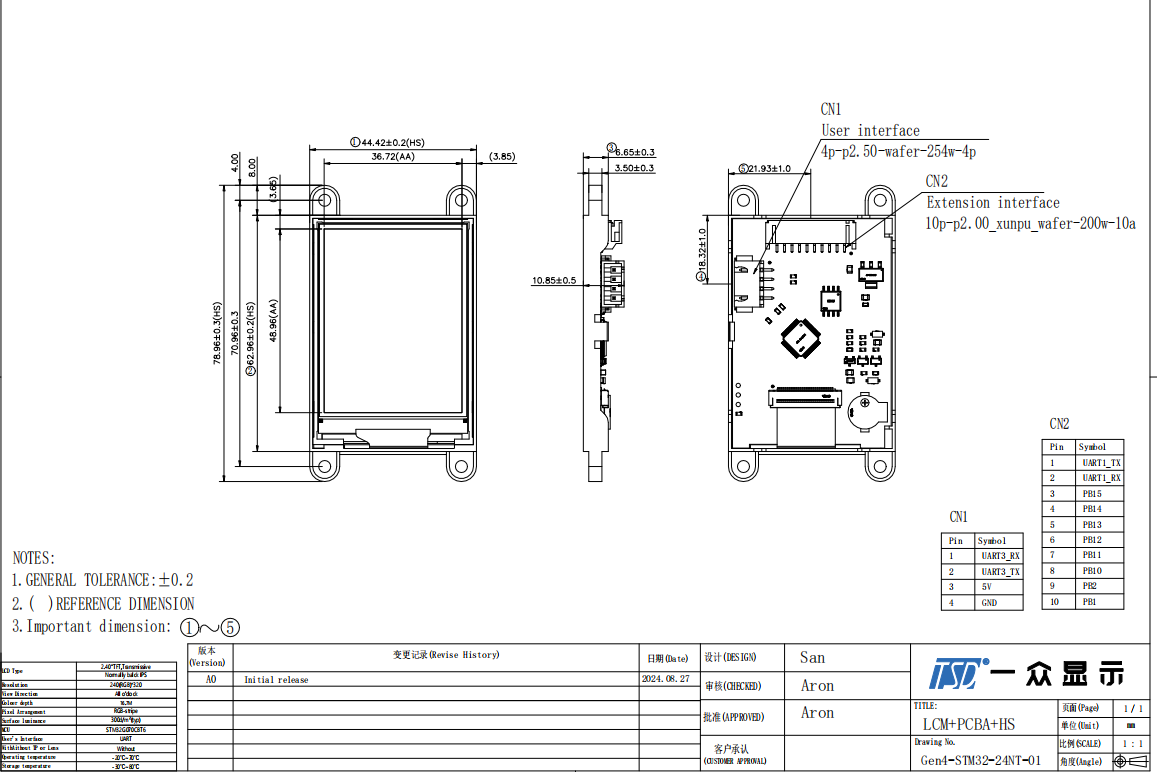

Drawing:



gen-4 STM32 display


Specifications:



General Specification
Part No.  Pro024QVSTM-R2101
Outline Dimension(mm)

42.72(W)x60.26(H)x2.2(D)

Active Area(mm) 36.72(W) x 48.96(H)
Resolution(dots) 240x (RGB) x320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx320V)
Touch panel  without, but CTP port are reserved
Driver IC STM32
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.4 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Interface Definition
Pin No.  Symbol Description
1 GND Ground connection
2 5V Input power 4.5~9V, typical value 5V/150mA
5 TX Communication output  3.3V/5V
6 RX Communication input  3.3V/5V




  • Features:
  •
  • Display Specifications: 2.4 inch Gen-4 STM32 smart tft lcd display
  • Storage method: 128Mbit norFlash (customizable)
  • Communication mode: serial port
  • Touch type: CTP ports are reserved
  • Protective treatment: PCBA components are coated with UV three anti-adhesive
  • Working voltage: 4.5V~5.5V, Typical : 5V
  • Working current: 50mA~150mA, Typical 80mA
  • Display color: 65K color
  • Display resolution: 240x320
  • Angle of view: 80°/80°/80°/80°
  • Interface: UART
  • Operating temperature: -20C~70C/96H
  • Storage temperature: -30C~80°C/96H
  •

  • Applications:
  •
  • Team Source Display (TSD) specialized in LCD display (0.96 inch to 32 inch) & Touch panel & Intelligent Control & HMI modules. We have the ability to customize STM32 embedded displays basing on customer's requirements, contact us today to get more details freely. For this Gen-4 STM32 series 2.4 inch intelligent lcd display, the applications are as belows:
  •
  • 1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

    2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

    3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

    4. Medical Devices: sphygmomanometer.

  • 5. Sports Equipment: running machine.

    6. Industrial Control Equipment: remote control, punched-card machine.

    7. Information Terminal Display: POS, PDA, Handheld devices.

    8. Security Products: elevator controller, electronic indicator

  • And other other fields...
  •

GEN-4 STM32 display



  •
