English

8*2 dots display LCD Type: STN,TRANSFLECTIVE/Positive

LCD Type: STN,TRANSFLECTIVE/Positive

Polarizer color: Yellow-Green

Diver method: 1/16 DUTY, 1/5BIAS

View Direction: 6 o'clock

LCD driver IC: ST7066 OR EQU

Character: English/Japanese

Operaiong Voltage:VOP5.0V/VDD5.0V

Connect types: PIN

BACKLIGHT: Y-G , 5V,20MA

Operating temperature: -20~70

Storage temperature: -30~80

Description:

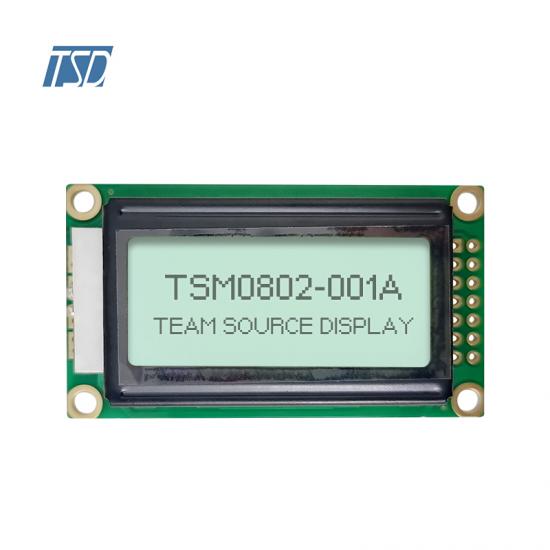

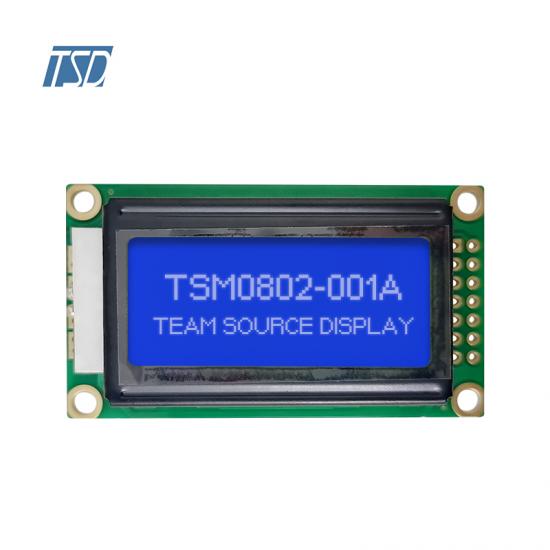

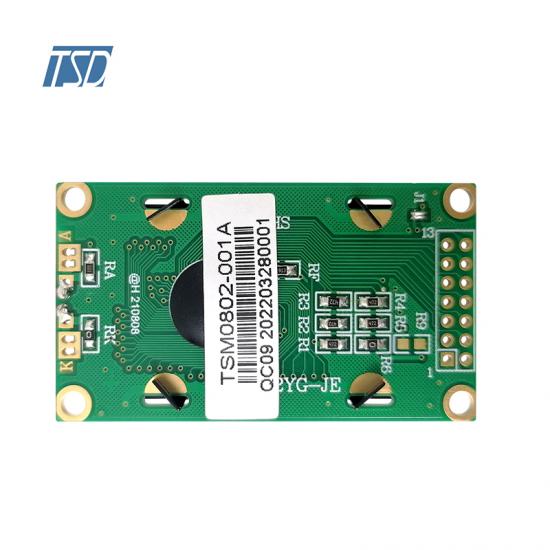

The TSM0802-001A is a monochrome display that is STN,TRANSFLECTIVE display mode, with 6H viewing direction. This product is composed of  LCD panel, driver IC, backlight. The Character is English/Japanese, with an active resolution of 20*4 dots.

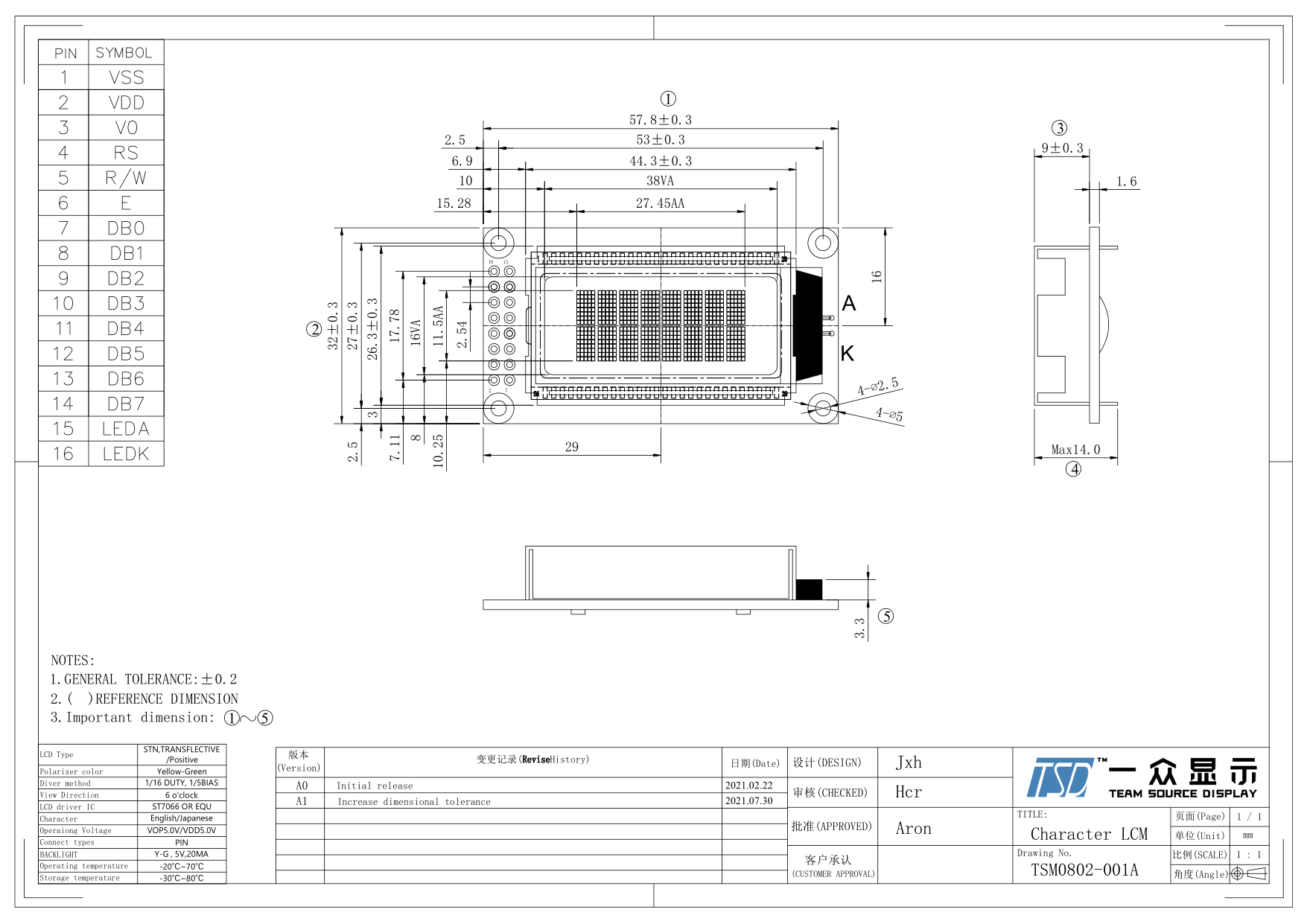

Drawing:

Specifications:



General Specification

Part No.

TSM0802-001A

LCD Type

STN,TRANSFLECTIVE

Polarizer color

Yellow-Gree

Resolution(dots)

8*2

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Diver method

1/16 DUTY, 1/5BIAS

Pixel arrangement

RGB-stripe

Character

English/Japanes

Operaiong Voltage

VOP5.0V/VDD5.0v

View direction

6 o'clock

Connect type

PIN

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
