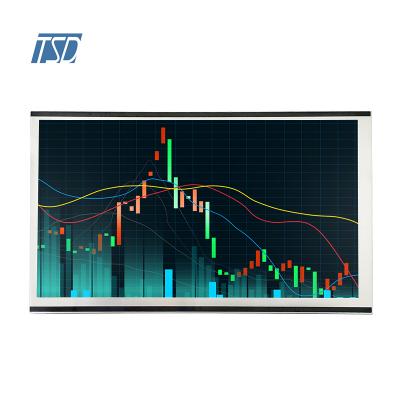

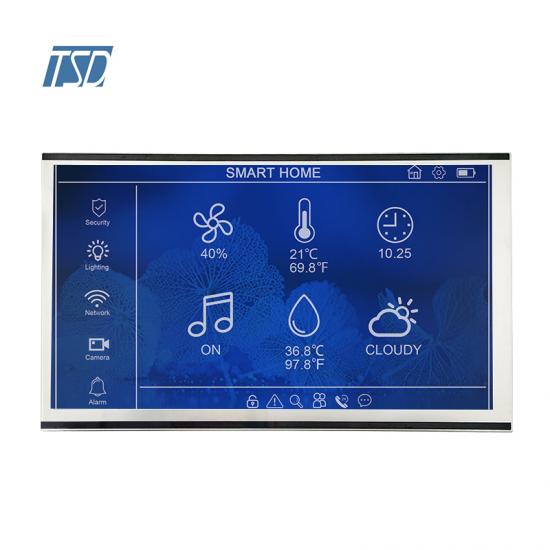

TSD 8 inch lcd display1280X720 resolution with LVDS interface

  • Model Name: TST080HDBV-22
  • LCD Type: 8 inch TFT LCD display
  • Resolution: 1280x720
  • Viewing angle: All o'clock
  • Brightness: 800 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃





Description:



TST080HDBV-22 is 8 inch 1280x720 resolution IPS TFT LCD display module, support LVDS interface,  this 8 inch module is a color active matrix TFT LCD module using amorphous silicon TFT's (ThinFilm Transistors)as an active switching devices. It is a transmissive type display operating in thenormal black. The TFT-LCD has a 8 inch diagonally measured active area with resolutions (1280horizontal by 720 vertical pixel arrays). Each pixel is divided into RED,GREEN, BLUE dots whichare arranged in vertical stripe and this panel can display 16.7M colors.

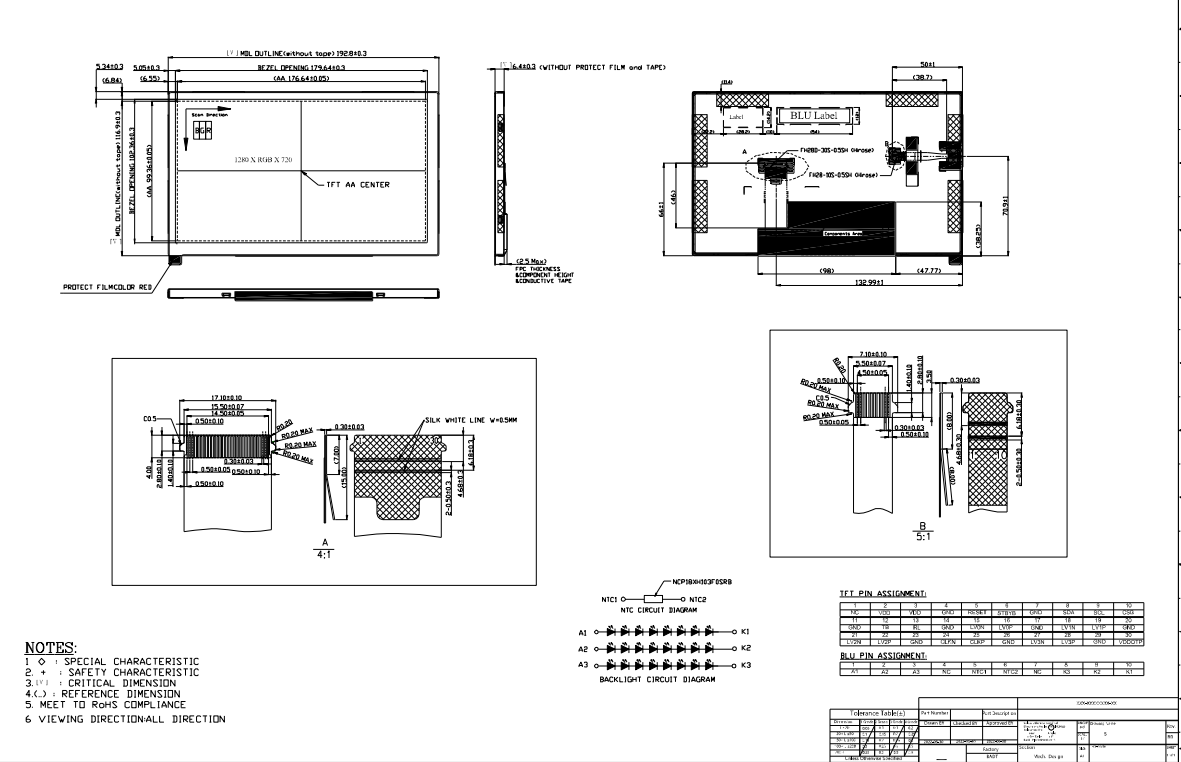

Drawing:




Specifications:



General Specification
Part No.  TST080HDBV-22
Outline Dimension(mm)  192.8X116.9X6.4mm
Active Area(mm) 176.64x99.36mm
Resolution(dots) 1280x720
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  without
Brightness 920 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 8 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 NC No connection
2 VDD Power pin (3.3V typ.)
3 VDD Power pin (3.3V typ.)
4 GND Ground
5 RESET Reset pin

6

STBYB Standby pin
7 GND Power pin
8 SDA SPI Data pin
9 SCL SPI Clock pin
10 CSB SPI chip select pin
11 GND Ground
12 TB Vertical shift direction selection
13 RL Horizontal shift direction selection
14 GND Ground
15 LV0N LVDS Data channel 0 -
16 LV0P LVDS Data channel 0 +
17 GND Ground
18 LV1N LVDS Data channel 1 -
19 LV1P LVDS Data channel 1+
20 GND Ground
21 LV2P LVDS Data channel 2 -
22 LV2N LVDS Data channel 2 +
23 GND Ground
24 CLKN LVDS CLOCK -
25 CLKP LVDS CLOCK +
26 GND Ground
27 LV3N LVDS Data channel 3 -
28 LV3P LVDS Data channel 3 +
29 GND Ground
30 VDDOTP
Power input for OTP programming




Features:



Wide viewing angle (U/D/L/R): 85/85/85/85Color Gamut : 70% Min.

Cell thickness : 1.0t

LVDS Interface



  • 8 inch tft lcd

Get A Quote
