Description:

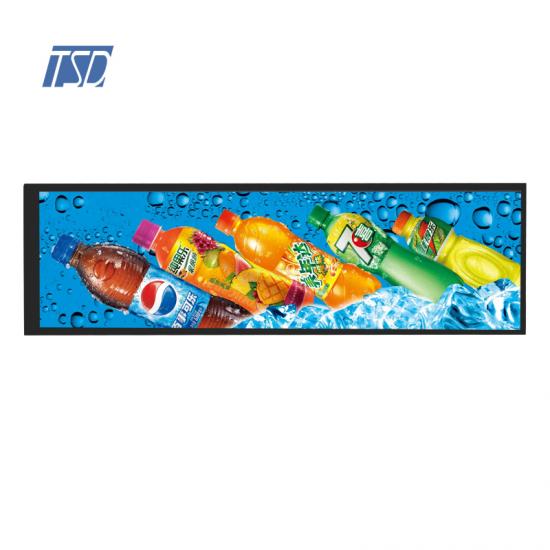

TST088HDHH-03 is 8.8 inch ips tft lcd display module, resolution is 1280X480, 8:3 landscape screen. It's coming out with LVDS interface, typ.brightness is 1200 cd/m2, suitable for outdoor application. It's a color active matrix TFT LCD module using amorphous silicon TFT's (ThinFilm Transistors)as an active switching devices. Outline dimension of the LCD module is 223.9(H)X95.6(V)X5.6(T) mm, active area is 209.28(H)X78.48 (V) mm. This is a bar type TFT display, support display 16.7M colors.

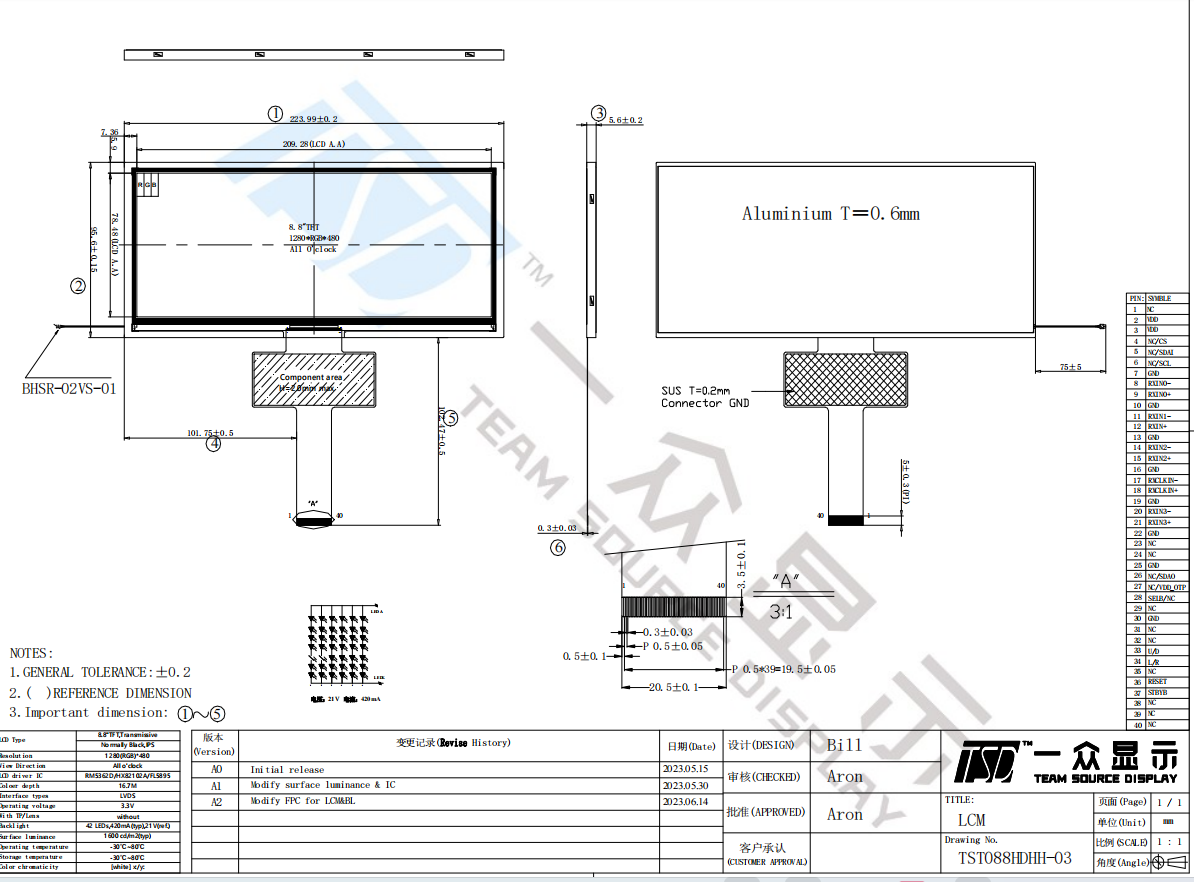

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST088HDHH-03 | |
| Outline Dimension(mm) | 223.9(H)X95.6(V)X5.6(T) mm | |
| Active Area(mm) | 209.28(H)X78.48 (V) mm | |
| Resolution(dots) | 1280x480 | |
| Operating temperature(°C) | -30 ~ +80°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 1280(H)xRGBx480(V) | |
| Touch panel | without | |
| Brightness | 1200 cd/m2 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 8.8 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | LVDS | |
| Module lifetime(Hours) | 30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | NC | No connection |
| 2~3 | VDD | Power voltage for digital circuit |
| 4~6 | NC | Must open this pins |
| 7 | GND | Ground |
| 8 | RXIN0- | Negative LVDS differential data input |
|
9 |
RXIN0+ | Positive LVDS differential data input |
| 10 | GND | Ground |
| 11 | RXIN1- | Negative LVDS differential data input |
| 12 | RXIN1+ | Positive LVDS differential data input |
| 13 | GND | Ground |
| 14 | RXIN2- |
Negative LVDS differential data input |
| 15 | RXIN2+ | Positive LVDS differential data input |
| 16 | GND | Ground |
| 17 | RXIN3- | Negative LVDS differential data input |
| 18 | RXIN3+ | Positive LVDS differential data input |
| 19 | GND | Ground |
| 20 | RXIN4- | Negative LVDS differential data input |
| 21 | RXIN4+ | Positive LVDS differential data input |
| 22 | GND | Ground |
| 23~24 | NC | No connect |
| 25 | GND | Ground |
| 26~27 | NC | Must open this pin |
| 28 | SELB/NC | No connect. Default 8bit |
| 29 | NC | No connect |
| 30 | GND | Ground |
| 31~32 | NC | No conect |
| 33 | U/D | UP/down selection |
| 34 | L/R | Left/right selection |
| 35 | NC | No connect |
| 36 | RESET |
Global reset pin. Active low
|
| 37 | Stbyb |
Standby mode setting pin, active low
|
| 38~40 | NC |
No connect
|
Features:
• Display Resolution: 1280 x RGB x 480
• Wide viewing angle (U/D/L/R): Free viewing direction
• Display up to 16.7M colours
• LVDS interface
• Anti-glare front polarizer and front polarizer absorption axis angle is horizontal, rear polarizer absorption axis angle is vertical.
• White LED backlight
• 1200 cd/m2 high brightness
