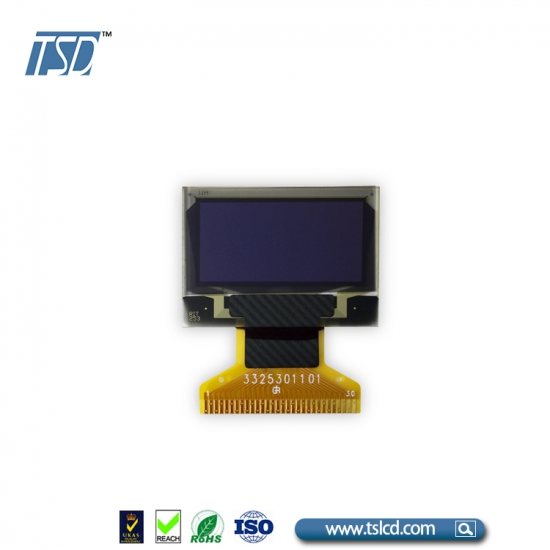

New 0.96 inch 128x64 dots white OLED Display COG type


128x64 OLED
128x64 OLED


New 0.96 inch 128x64 dots white OLED Display COG type


LCD type OLED Display
Part No. TSO12864-07
Resolution 128*64 dots
Display Color Normally  white
Aperture rate 78%
ASSY.TYPE COG
Module size 26.7(W)x19.26(H)x1.41(D)
Viewing Area 23.74 (W) x 12.864(H)
Active Area 21.744(W) x10.864(H)
Dots Size 0.154(W) x0.154(H)
Dots Pitch 0.17(W) x0.17 (H)
Driver IC SSD1306BZ
Viewing Angle 160°
Interface 6800/8080 interface, 4 wire serial interface, I 2 C

Inquiry now

New 0.96 inch 128x64 dots white OLED Display COG type


LCD type OLED Display
Part No. TSO12864-07
Resolution 128*64 dots
Display Color Normally  white
Aperture rate 78%
ASSY.TYPE  COG
Module size 26.7(W)x19.26(H)x1.41(D)
Viewing Area 23.74 (W) x 12.864(H)
Active Area 21.744(W) x10.864(H)
Dots Size 0.154(W) x0.154(H)
Dots Pitch 0.17(W) x0.17 (H)
Driver IC SSD1306BZ
Viewing Angle 160°
Interface 6800/8080 interface, 4 wire serial interface, I 2 C




FEATURES：


(1)Display Color: WHITE
(2)Dot Matrix: 128x64
(3)Drive IC: SSD1306BZ
(4) Viewing Angle: 160°
(5) Aperture rate: 78%
(6) Interface: 6800/8080 interface, 4 wire serial interface, I 2 C
