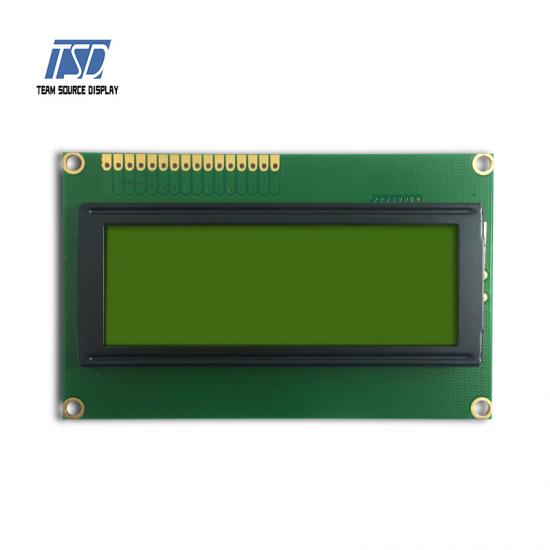

20×4 Charactors STN,POSITIVE,Y/G display 6 O’clock 8-Bit Parallel Interface

Display Format: 20×4 Charactors

Display Mode: STN,POSITIVE,Y/G

Polarizer Mode: TRANSFLECTIVE

Driving Method:1/16Duty, 1/5 Bias

Viewing Direction: 6 Oclock

Backlight: LEDColor Y&G

Controller: ST7066-0A or Equivalent.

Interface: 8-Bit Parallel Interface

Description:



The TSM2004A-20-YG is a monochrome display that is STN,POSITIVE,Y/G display mode, with 6H viewing direction. This product is composed of TFTLCD panel, driver IC, FPC, backlight. The active display area is a 70.4(W) × 20.80(H measurement on the diagonal, with an active resolution of 20*4 dots.





Drawing:

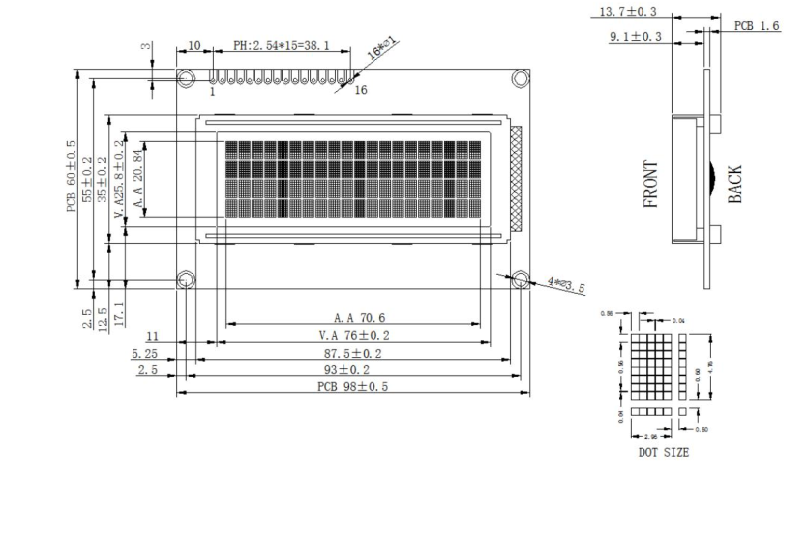

Specifications:





General Specification

Part No.

TSM2004A-20-YG

Outline Dimension(mm)

98.0(W) × 60.0(H) × 13.5(Max)

Active Area(mm)

70.4(W) × 20.80(H)

Resolution(dots)

20*4 dots

Driving Method

1/16Duty, 1/5 Bias

Polarizer Mode

TRANSFLECTIVE

Character Matrix

20X4 dots

Character Size

2.96*4.76

Dot Pitch

0.60(W) × 0.60(H)

Display mode

STN,POSITIVE,Y/G

Polarizer Mode

Polarizer Mode

View direction

6 o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

8-Bit Parallel Interface

Driving Method

1/16Duty, 1/5 Bias





Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
