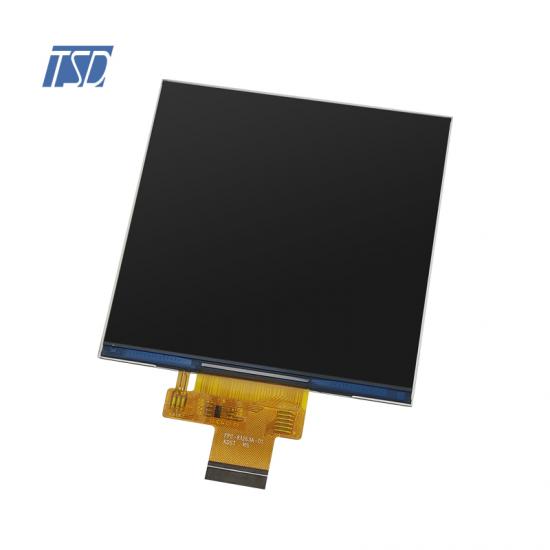

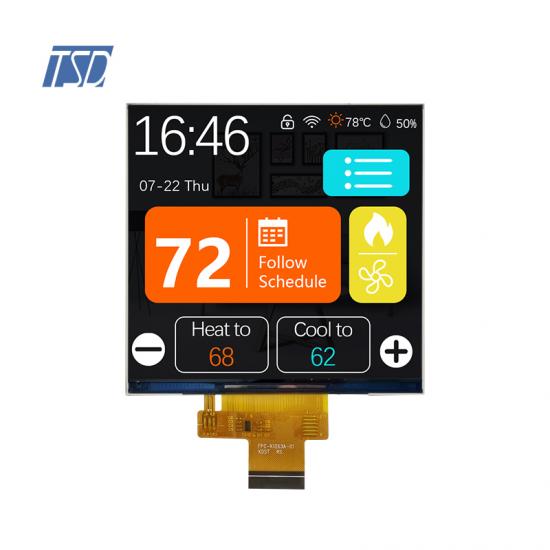

TSD 480x480 resolution 3.4 inch automotive tft display square lcd module



  • Model Name: FOG-TST034WVBJ-01
  • LCD Type: 3.4 inch automotive tft display
  • Resolution: 480x480
  • Viewing angle: All o'clock
  • Backlight: without
  • Driver IC: HX8272-B-LT
  • Interface: SPI+RGB
  • Touch Screen: without
  • Operating Temperature: -40 ~ +85℃
  • Storage Temperature: -40 ~ +90℃









Description:



FOG-TST034WVBJ-01 is 3.4 inch ips tft lcd display, resolution is 480x480 with square pixel. This module is FOG only, without backlight. Operating temperature is -40 to 85℃, storage temperature is -40 to 90℃, standard automotive grade tft lcd display with IPS all o'clock viewing. LCD driver IC is HX8272-B-LT, interface type is 3 wire SPI+ RGB24 bits, 40 pins pin-out. Operating voltage is 3.0V~3.3V, transmission with polarizer is 3.65%~4.05%.

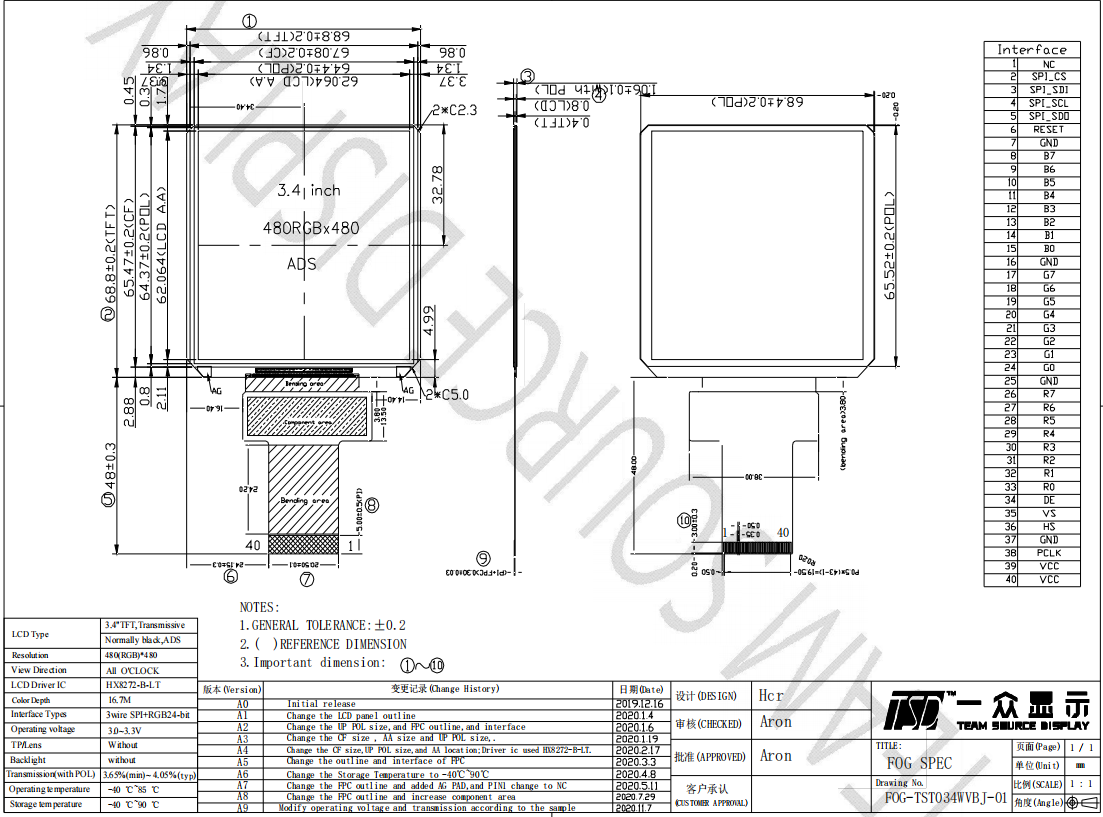

Drawing:




Specifications:



General Specification
Part No.  FOG-TST034WVBJ-01
Outline Dimension for Backlight(mm)

68.8(W)x68.8(H)x1.06(D)

Outline dimension for LCD(mm) 62.6(W) x 62.6(H)
Resolution(dots) 480x (RGB) ×480
Operating temperature(°C) -40 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 480RGB(H)xRGBx480(V)
Touch panel  without
Driver IC HX8282-B-LT
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 3.4 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system without
Interface SPI+RGB
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 NC No connect
2 SPI_CS Serial interface chip select signal for SPl interface.
3 SPI_SDI Serial interface data input for SPi interface
4 SPI_SCL VSerial interface clock input for SPi interface
5 SPI_SDO Serial interface data output for SPi interface
6 RESET Reset input signal,active low.the chip is in reset state when RESET=0
7 GND System Ground (0V)
8~15 B7~B0 Blue data input
16 GND System Ground (0V)
17~24 G7~G0 Green data input
25 GND
System Ground (0V)
26~33 R7~R0 Red data input
34 DE Data enable signal for RGB interface operation.
35 VS Vertical sync input in digital parallel RGB.
36 HS Horizontal sync input in digital parallel RGB.
37 GND System Ground (0V)
38 PCLK Dot clock signal for RGB interface operation
39 VCC Power supply 3.3V
40 VCC Power supply 3.3V






Features:



Various displays used in cars are collectively called automotive displays (Automotive Display). It can be roughly divided into digital car dashboards, digital rearview mirrors, and CID (central information display). A car dashboard (cluster) can simultaneously display a variety of driving information such as vehicle speed, engine speed (RPM), and mileage in one space. The realization of this information through display technology is called a "digital car cluster." Compared with the simulation method of physical pointer movement, its design freedom and applicability are higher, and it can display maps and entertainment information on the screen.



For TSD automotive display, there are full series ranges, like 3.4 inch, 3.5 inch, 4.3 inch, 5 inch, 6.5 inch, 7 inch, 8 inch, 8.88 inch, 9 inch, 9.2 inch, 10.1 inch, 10.3 inch, 12.3 inch, 14.6 inch, 15 inch etc., any more details, please contact us freely.
