TSD 1024*768 resolution 1000nits brightness 12.1 inch ips lcd display for automotive application

  • Model Name: TST121XGCE-M01
  • LCD Type: 12.1 inch TFT LCD display
  • Resolution: 1024*768
  • Viewing angle: IPS all viewing angle
  • Brightness: 1000 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +75℃
  • Storage Temperature: -40 ~ +80℃





Description:

TSD TFT item number TST121XGCE-M01 is 12.1 inch, IPS TFT LCD, 1024*768 resolution, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
LCD type 12.1 inch ips display
Display type 12.1 inch TFT, 16.7M color, normally black
Driver element color active matrix thin film transistor
Viewing angle All
Outline Dimension(mm) 260.5x204x8.4
Active Area.(mm) 245.76x184.32
Resolution(dots) 1024*768
Operating Voltage 3.3V
Operating temperature(°C) -30-75
Storage temperature(°C) -40-80
Pixel arrangement  RGB Vertical Stripe
Display mode Normally black
Luminance(cd/m2) 400(typ.)
Contrast Ratio 1200(typ.)
Application Notebook, advertisement display, etc.
Model Number TST121XGCE-M01
Interface  LVDS
Module lifetime(Hours) 50,000-100,000

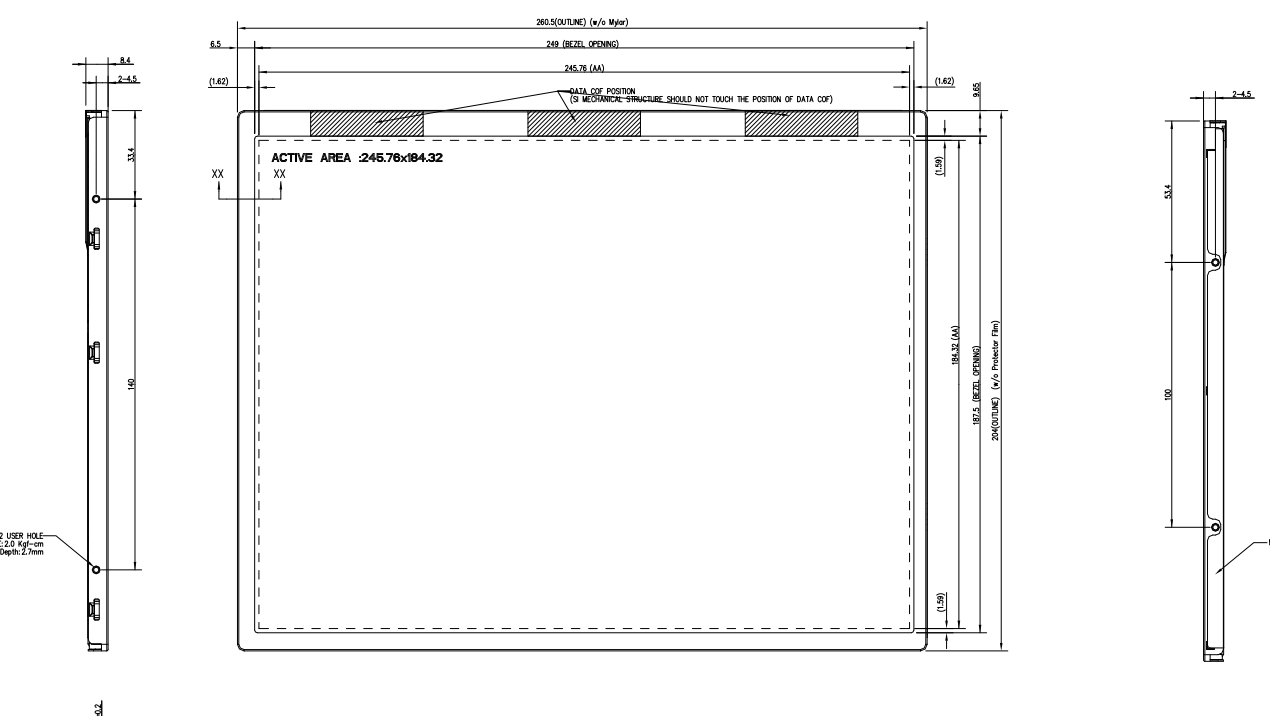

Drawing:

Interface Description:

Pin No.  Symbol Description
1 RX3+ Differential Data Input, CH3 ( Positive)
2 RX3- Differential Data Input, CH3 (Negative )
3 NC Not connect
4 SEL68

LVDS 6/8 bit select function control.

Low > 6 bit Input Mode

High > 8bit Input Mode

5 GND Ground
6 RXC+

Differential Clock Input ( Positive )

7 RXC- Differential Clock Input ( Negative )
8 GND Ground
9 RX2+ Differential Data Input , CH2 ( Positive)
10 RX2- Differential Data Input , CH2 ( Negative)
11 NC For LCD internal use only, Do not connect
12 RX1+ Differential Data Input , CH1 ( Positive )
13 RX1- Differential Data Input, CH1 ( Negative )
14 NC For LCD internal use only, Do not connect
15 RX0+ Differential Data Input, CHO ( Positive )
16 RX0- Differential Data Input, CHO (Negative )
17 reLR

Horizontal Reverse Scan Control,

Low > Normal Mode.

High > Horizontal Reverse Scan

18 reUD

Vertical Reverse Scan Control,

Low > Normal Mode.

High > Vertical Reverse Scan

19 VCC Power supply
20 VCC Power supply

Applications:



For our 12.1 inch LCD display TST121XGCE-M01, it's widely using in automotiva grade applications.

Product Features:

1.12.1 inch 1024*768 res. with 20 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high brightness up to 1000nits

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
