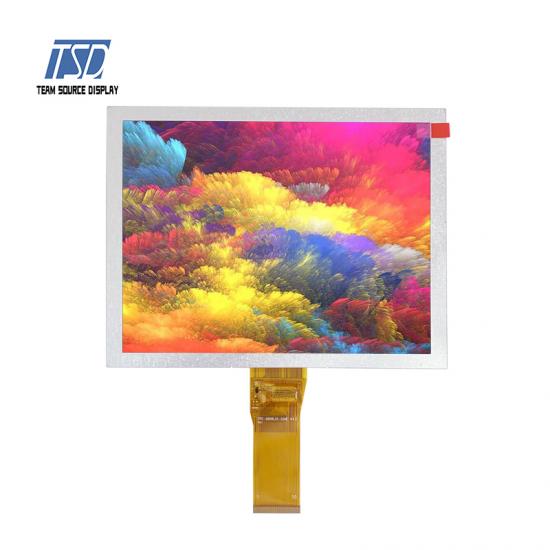

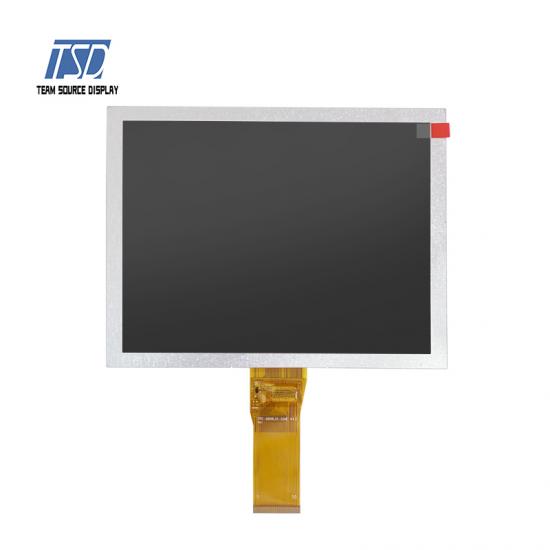

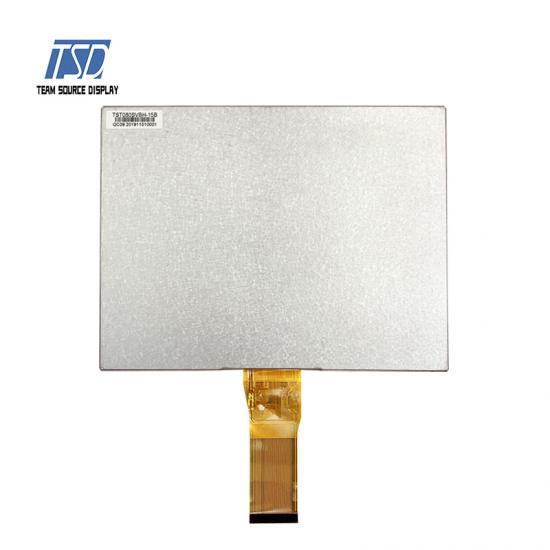

HX8264D02+HX8696A01 controller TSD 8 inch 800*600 Resolution TN Glass LCD Display Panel


8-inch svbh 800X600 color TFT lcd module
8-inch svbh 800X600 color TFT lcd module 8-inch svbh 800X600 color TFT lcd module 8-inch svbh 800X600 color TFT lcd module

HX8264D02+HX8696A01 controller TSD 8 inch 800*600 Resolution TN Glass LCD Display Panel

Inquiry now

 SSD2119 controller 3.5 inch 320X240 resolution lcd screen display with RTP


Specification
LCD type TFT, Transmissive
Display type 8-inch TFT lcd svbh, 16.7M color, normal white
Driver element a-si TFT Active matrix
Outline Dimension(mm) 183x141x3.5
A.A.(mm) 162x121.5
Driver IC HX8264D02+HX8696A01
Item8 8 inch tft lcd panel with zif fpc connector
Resolution(dots)_ 800*RGB*600
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800(H)x RGB x 600(V)
Pixel Pitch 0.2025x0.2025
Operating Volatge 2.8v
Pixel arrangement RGB Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 24 LEDs, 160mA, 9.6V
Touch screen
 /
Interface TTL(RGB24-bit)
Surface Luminance 380 cd/㎡
