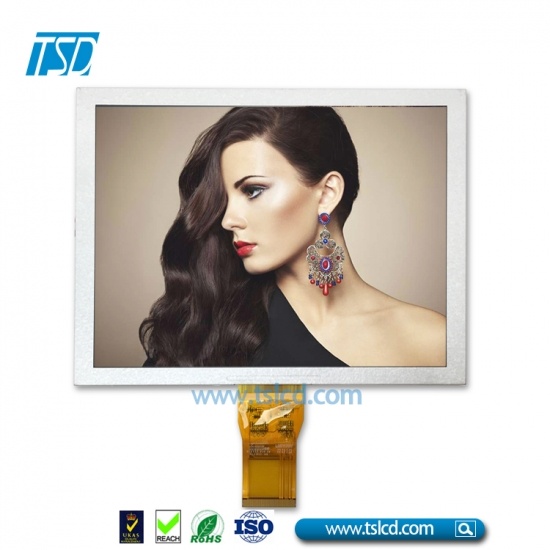

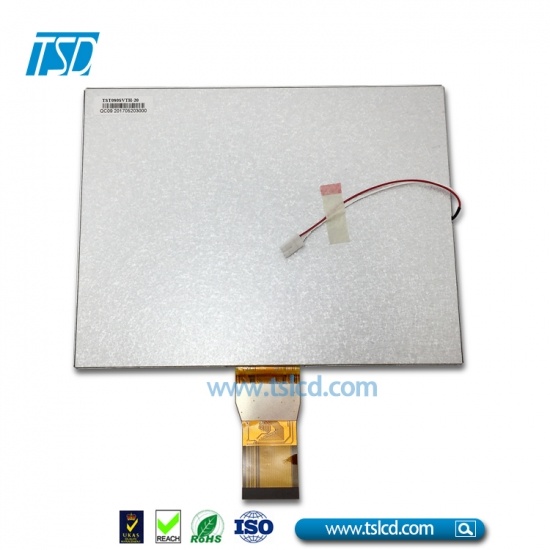

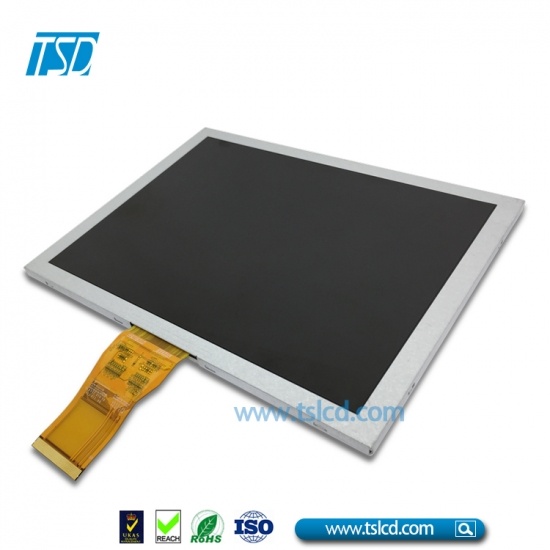

color TFT 8.0 inch 1024*600 res with LVDS interface

8” color TFT LCD with 6 o'clock viewing angle

6 o'clock viewing angle

Inquiry now

8” color TFT LCD 1024x600 40pins interface

Specification
Part No.	TST800MIXH-01, 8 inch lcd panel
Outline Dimension(mm)	164.9x100.0x6.7
Display Area(mm)	154.08x85.92
Resolution(dots)	WVGA, 1024RGB600
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	1024RGB(H)xRGBx600(V)
Touch panel	94% transmittance RTP
Dot Pitch	0.0642(W)x0.1790(H)
Pixel arrangement	RGB Vertical stripe
Display mode	Normal white,Transmissive, 8 inch TFT
Surface treatment	Antiglare
View direction	6H
Weight(g)	TBD
Power Consumption(w)	Panel	0.226(Typ.)
	B/L system	1.674(Typ.)
Interface	Digital
Module lifetime(Hours)	50,000-100,000

Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : color TFT 8.0 inch 1024*600 res with LVDS interface
