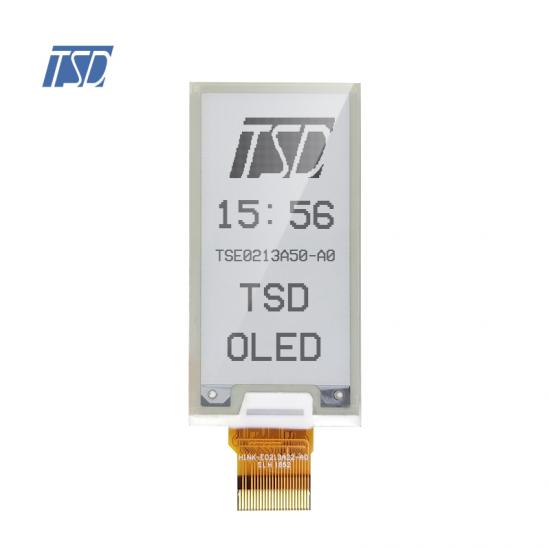

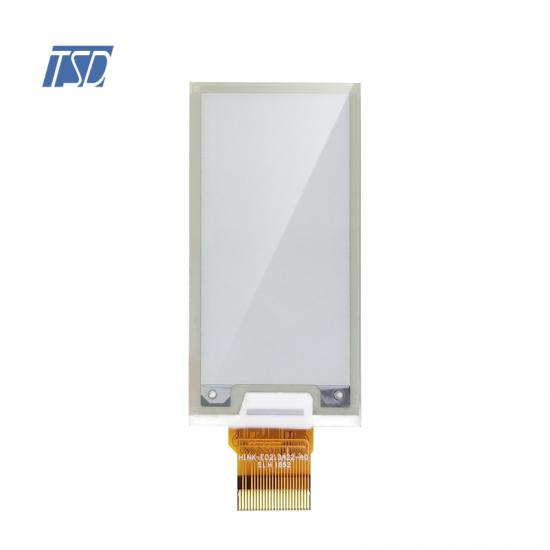

Description:
TSE0213A50 is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design. The 2.13” active area contains 250×122 pixels, and has 1-bit B/W full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC. SRAM.LUT, VCOM and border are supplied with each panel.

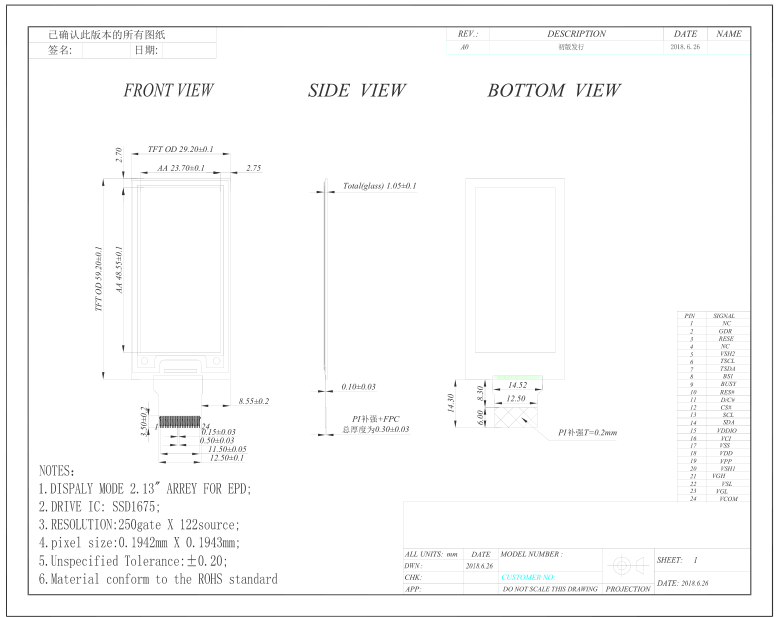

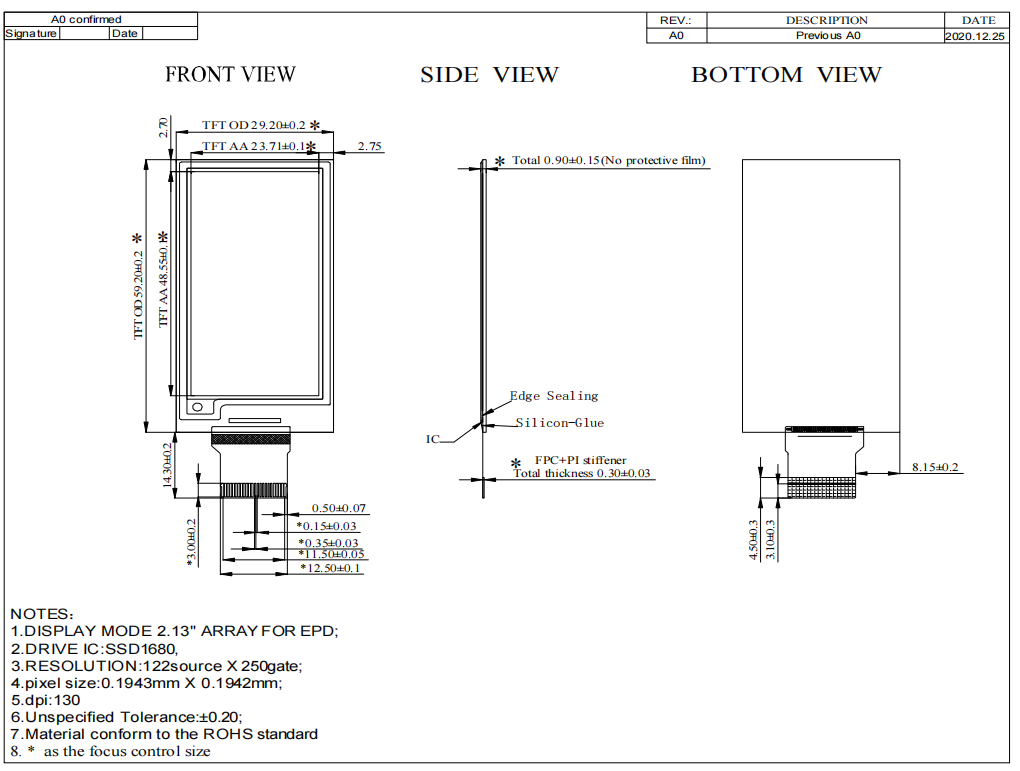

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TSE0213A50 |
|
|
Display Size(Diagonal) |
2.13 inch |
|
|
LCD type |
AMEPD |
|
|
Resolution |
122H*250V |
|
|
View Direction |
All o’clock |
|
|
Module Outline |
29.2(H)×59.2 (V) ×1.05(D) |
|
|
Active Area |
23.7(H)×48.55(V) |
|
|
Pixel Pitch |
0.1942×0.1943 |
|
|
Pixel Configuration |
Rectangle |
|
|
Driver IC |
STD1675 |
|
|
Weight(g) |
3.0±0.2 |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～60 |
|
|
Storage Temperature |
-30～70 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
NC |
No connection and do not connect with other NC pins Keep Open |
|
2 |
GDR |
N-Channel MOSFET Gate Drive Control |
|
3 |
RESE |
Current Sense Input for the Control Loop |
|
4 |
NC |
No connection and do not connect with other NC pins e Keep Open |
|
5 |
VSH2 |
Positive Source driving voltage |
|
6 |
TSCL I2C |
Interface to digital temperature sensor Clock pin |
|
7 |
TSDA I2C |
Interface to digital temperature sensor Date pin |
|
8 |
BS1 |
Bus selection pin |
|
9 |
BUSY |
Busy state output pin |
|
10 |
D/C |
Data /Command control pin |
|
11 |
TCN |
MIPI clock c athode input pin |
|
12 |
CS |
Chip Select input pin |
|
13 |
SCL |
serial clock pin (SPI) |
|
14 |
SDA |
serial data pin (SPI) |
|
15 |
VDDIO |
Power for interface logic pins |
|
16 |
VCI |
Power Supply pin for the chip |
|
17 |
VSS |
Ground |
|
18 |
VDD |
Core logic power pin |
|
19 |
VPP |
Power Supply for OTP Programming |
|
20 |
VSH1 |
Positive Source driving voltage |
|
21 |
VGH |
Power Supply pin for Positive Gate driving voltage andVSH |
|
22 |
VSL |
Negative Source driving voltage |
|
23 |
VGL |
Power Supply pin for Negative Gate driving voltage,VCOM and VSL |
|
24 |
VCOM |
VCOM driving voltage |
