TSD Full HD high resolution 1080*1920 resolution 5.5 inch IPS TFT LCD display with MIPI interface

  • Model Name: TST055FHIH-10
  • LCD Type: 5.5 inch TFT LCD display
  • Resolution: 1080*1920
  • Viewing angle: IPS all viewing angle
  • Brightness: 430 cd/m2
  • Driver IC: HX8399-A
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST055FHIH-10 is 5.5 inch 1080*1920 resolution LCD display with MIPI interface, standard brightness is 450cd/m2. For this 5.5 inch TFT LCD module, It is a FHD high definition lcd, the PPI is high. Driver IC is HX8399-A, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for handheld devices. such as Pos machine. etc



Specification
Part No. TST055FHIH-10
Outline Dimension(mm) 70.15x127.6x1.35
Active Area(mm) 68.04x120.96
Resolution(dots) 1080*RGB*1920
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1080RGB(H)xRGBx1920(V)
Touch panel Available to make the customization
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 5.5 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface MIPI
Module lifetime(Hours) 50,000-100,000

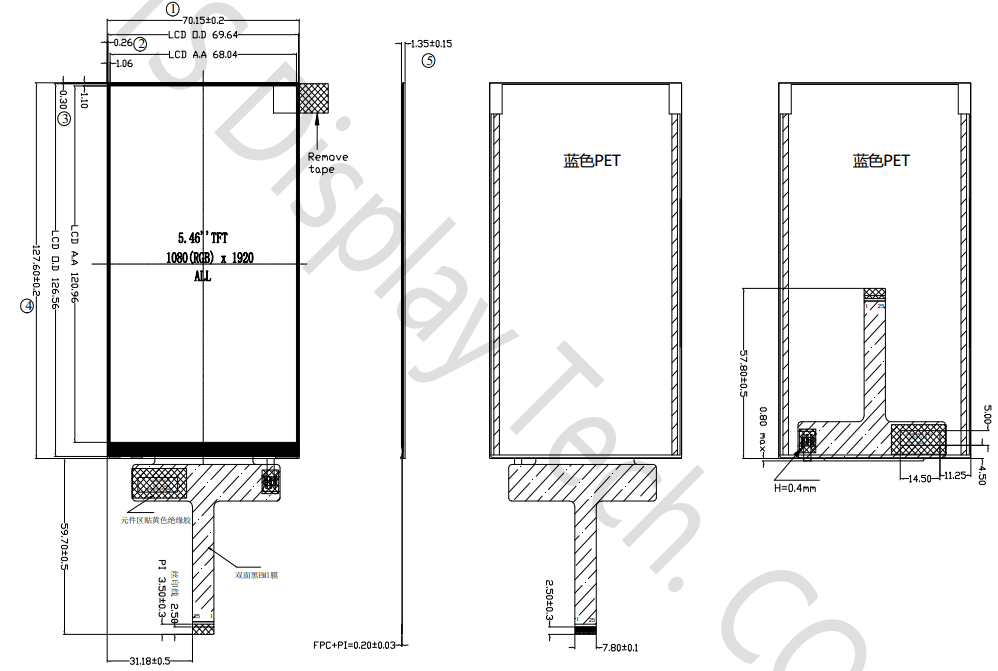

Drawing:

Interface Description:

Pin No.  Symbol Description
1 LCD_ID 10K resistor connect GND
2 IOVCC_1.8V Voltage input pin for logic I/O +1.8V
3 Vcc_2.8V Power supply +2.8V
4 GND System Ground. (0V)
5 TE Tearing Effect output signal
6 RESET Reset input signal
7 GND System Ground. (0V)
8 D2P MlPI data aothod input pin
9 D2N MlPI data cathode input pin
10 GND System Ground.(0V)
11 D1P MIPI data aothod input pin
12 D1N MIPI data cathode input pin
13 GND System Ground. (0V)
14 CLKP MIPI clock aothod input pin
15 CLKN MIPI clock cathode input pin
16 GND System Ground.(0V)
17 DOP MIPI data aothod input pin
18 DON MIPI data cathode input pin
19 GND System Ground.(0V)
20 D3P MlPI data aothod input pin
21 D3N MlPI data cathode input pin
22 GND System Ground.(0V)
23 LED K Backlight K Cathode input pin.
24 LED A Backlight A Aothod input pin.
25 GND System Ground.(0V)

Applications:



For our 5.5 inch LCD display TST055FHIH-10, it's widely using in handheld device, POS machine, scanning products.

Product Features:

1.5.5 inch  1080*1920 res. with 25pins MIPI interface

2. IPS lcd : full viewing angle

3. FHD Display

4.Vertical lcd type

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
