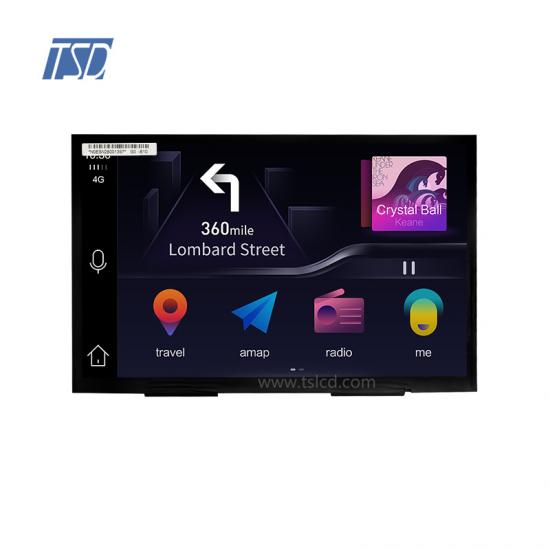

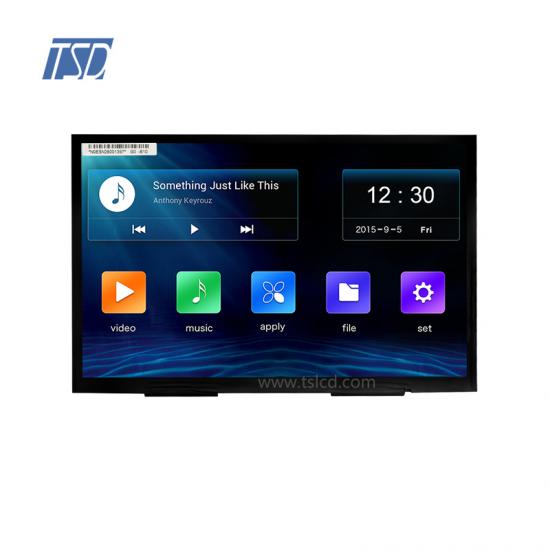

7.0 inch Full color LCD display module with 1280x768 resolution

Inquiry now

7.0 inch Full color LCD display module with 1280x768 resolution

Specification
Part No.	TST070HDHF-A00
Outline Dimension(mm)	164.06 (H) x 104.66 (V) x 6.29 (D)
Active Area(mm)	152.45(H) x 91.47(V)
Resolution(dots)	1280(H) x 768(V)
Operating temperature(°C)	-20-85
Storage temperature(°C)	-40-90
Number of Pixel(pixels)	1280(H) x 768(V)
Touch panel	without
Driver IC	EK79001+EK73215
Pixel arrangement	RGB-stripe
Display mode	Normal black,IPS, 7 inch TFT
Surface treatment	Antiglare
View direction	ALL
Weight(g)	TBD
Power Consumption(w)	Panel	TBD(Typ.)
	B/L system	1.728(Typ.)
Interface	LVDS Interface
Module lifetime(Hours)	50,000-100,000
