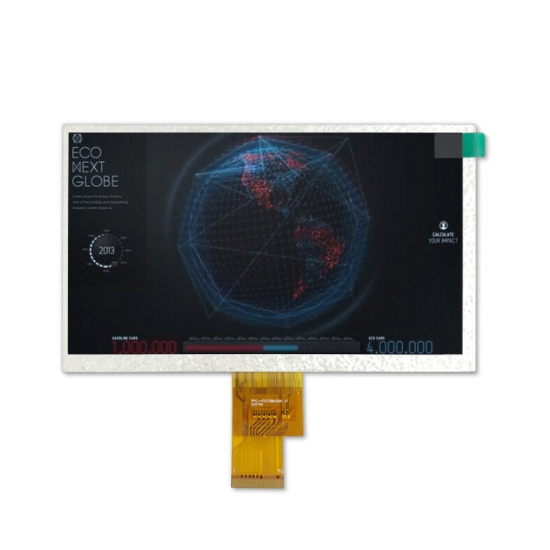

1024x600 resolution 7 inch IPS TFT LCD Panel RGB interface with high brightness

1024x600 resolution 7 inch IPS TFT LCD Panel RGB interface with high brightness

1024x600 resolution 7 inch IPS TFT LCD Panel RGB interface with high brightness



Specification
Part No. TST070WSBE-61
Outline Dimension(mm) 164.90x100.00x5.4
Active Area(mm) 154.21x85.92
Resolution(dots) 1024*RGB*600
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1024RGB(H)xRGBx600(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 7.0 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Brightness 1000 cd/m2
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface RGB
Module lifetime(Hours) 50,000-100,000
