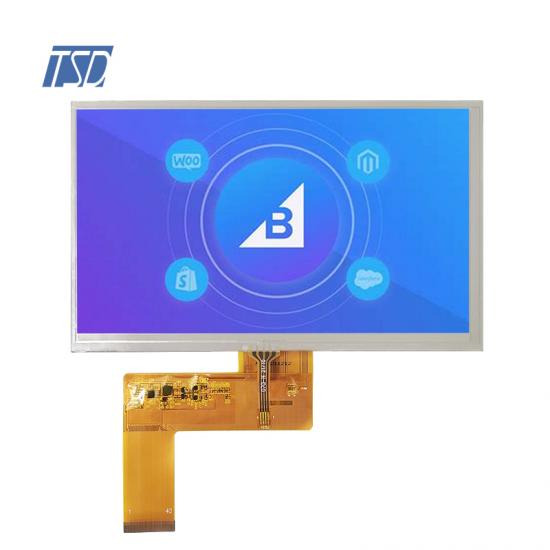

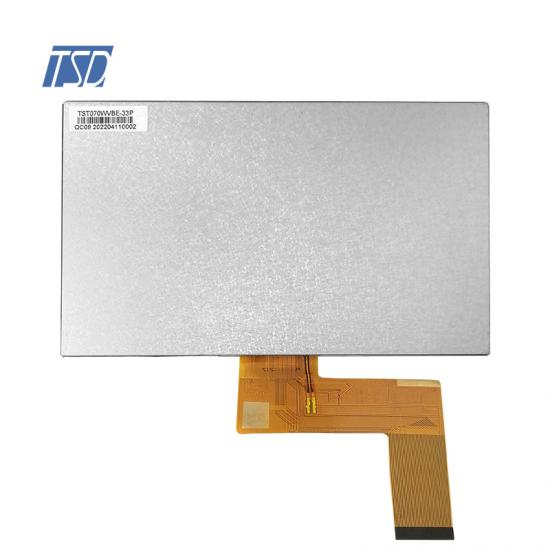

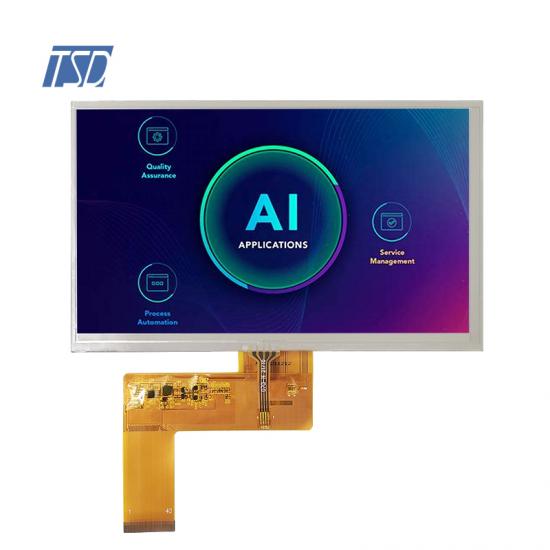

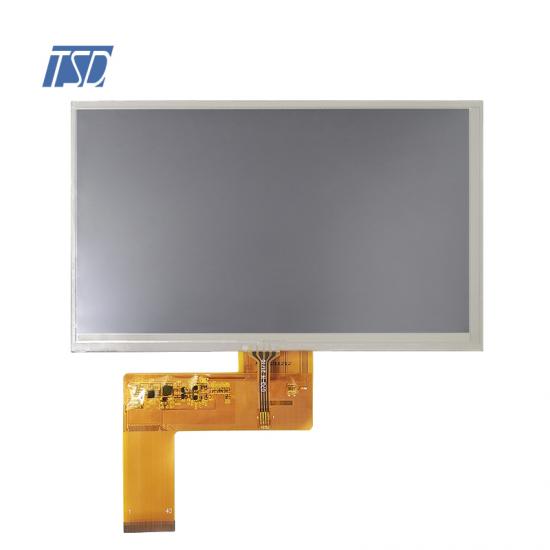

TSD High brightness 7'' TFT LCD Display with RTP

  • Model Name: TST070WVBE-33P
  • LCD Type: 7 inch TFT LCD display module
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness: 650 cd/m2
  • Driver IC: EK9716BD&EK73002ACGB
  • Interface: RGB 24bit
  • Touch Screen: with Resistive Touch Screen
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



Team Source Display model TST070WVBE-31/32/33 serials are the standard 7'' color TFT LCD, normally white with transmissive type TN panel,

wvga 800x480 resolution,  EK9716BD&EK73002ACGB driver IC, RGB-24bits 40pin interface, 16.7M color depth, Anti-glare surface treatment.

with RTP& CTP available, different brightness from 200~1000nits.


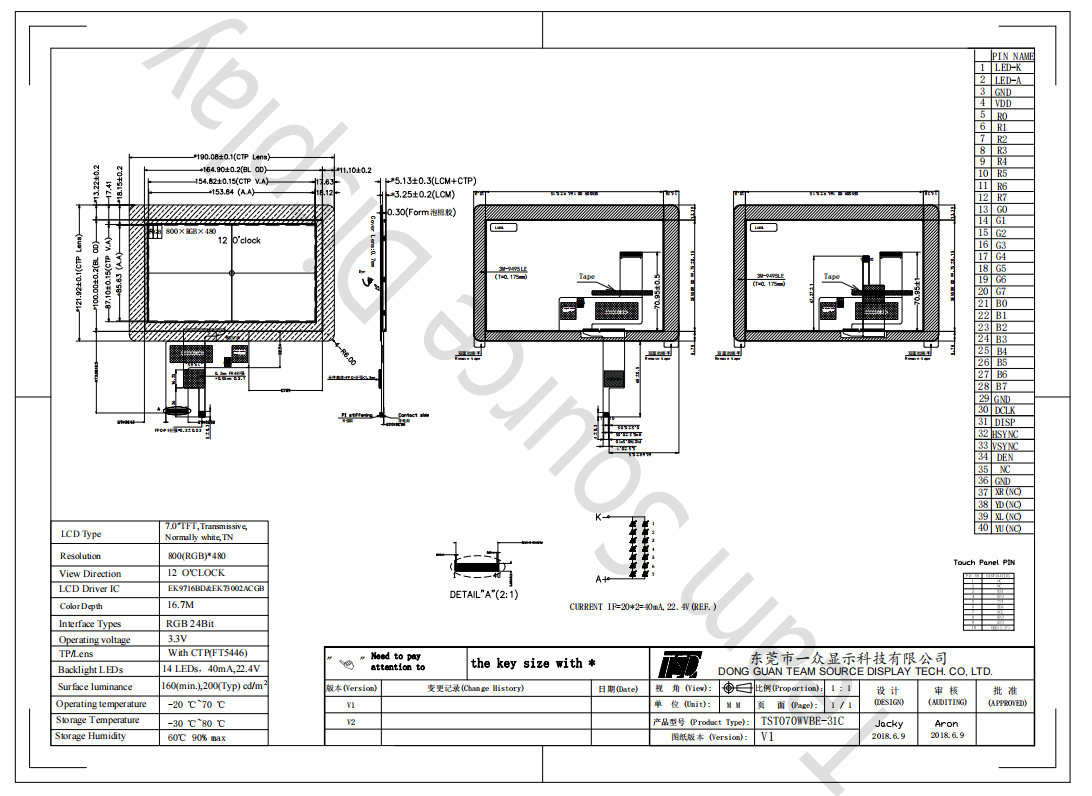

Drawing:




Specifications:



General Specification
Display mode
7'' TFT, Transmissive, Normal white,TN,
Part No.  TST070WVBE-33P
Outline Dimension(mm)

190.08(W)x121.92(H)x5.05(D)

Active Area(mm) 153.84(W) x 85.63(H)
Resolution(dots) 800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Operating Voltage
3.3V
Touch panel  with RTP
Driver IC EK9716BD&EK73002ACGB
Pixel arrangement RGB-stripe
View direction  12H
Interface RGB 24bits
Brightness 650nits
Backlight 30LEDs, 200mA, 9.6V
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin
2 LEDA Backlight A Anode input pin
3 GND System Ground.(0V)
4 VDD Power supply +3.3V
5-12 R0-R7 Red data BUS
13-20 G0-G7 Green data BUS
21-28 B0-B7 Blue data BUS
29 GND System ground. (0V)
30 CLK Clock for input data. Data latched at the rising/falling edge of this signal. Default is falling edge.
31 DISP

Standby mode control. (Normally pull high).

DISP="L", enter standby mode for power saving. Timing controller and source driver will tum off, all outputs are Hi-Z

DISP="H", normal operation.

32 HSYNC Horizontal sync input in digital parallel RGB. Negative polarity.
33 VSYNC Vertical sync input in digital parallel RGB. Negative polarity.
34 DEN

Input data enable control. When DE mode, active High to enable data input.

(Normally pull low)

35 NC Not connection
36 GND System ground. (0V)
37 XR/X+ The touch panel X Right pin.
38 YD/Y- The touch panel Y Down pin.
39 XL/X- The touch panel X Left pin.
40 YU/Y+ The touch panel Y Up pin.




Applications:



For this 7 inch TFT LCD display TST070WVBE-33P 800x480 resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, consumer products.




Product Features:



1. 800x480 7'' LCD with RTP

2. Operating temperature -20~+70 degree.
