English

TSD 240x240 resolution rotary knob display with STM32C5A3 MCU



  • Model Name: TSS013005A-AD-C5
  • LCD Type: 1.3 inch konb display
  • Resolution: 240x240
  • Viewing angle: All o'clock
  • 32-bit Arm®Cortex® -M33 Core
  • Controller: STM32C5A3
  • Interface: UART
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃









Description:



TSD TFT item number TSS013005A-AD-C5 is a 1.3-inch, 240x240 resolution IPS round TFT LCD display powered by the remarkably powerful STM32C5A3 MCU. It is compatible with a square AD board and includes USB-to-UART support for convenient UART testing via PC. This 1.3-inch knob display is ideal for smart home applications such as coffee machines, washing machines, smart toilets, thermostats, and air conditioner controllers. We can provide a complete HMI solution tailored to your needs.

This knob solution is a serial-communication TFT color display knob switch module built on the RTOS/STM32 platform, leveraging the exceptional performance of the STM32C5A3 MCU to its fullest. Through optimized algorithms, it enables rapid collaboration among the main chip, display screen, and encoder switch, delivering an excellent screen refresh rate and dynamic display performance. The module adopts an integrated design, combining the screen, electronic control, and coding switch into a single unit, ensuring outstanding reliability and superior control feel. It is suitable for a wide range of application scenarios requiring button control, such as home appliances, smart homes, car central controls, beauty equipment, and industrial controls. For more information, please click the picture below to learn more details.

STM32 smart knob display




Specifications:



General Specification
Part No.  TSS013005A-AD-C5
Outline Dimension(mm)

49(W)x49.0(H)x22.05(D)

Active Area(mm) 32.4(W) x 32.4(H)
Resolution(dots) 240x (RGB) × 240
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx240V)
Touch panel  without
Driver IC STM32C5A3
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 1.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 50,000-100,000





Interface Definition
Pin No.  Symbol Description
1 5V Power 4.5V~5.5V, typical value 5V/100mA
2 SWD SWD Date 3.3V
3 SWC SWC Date 3.3V
4 GND Ground
5 RA10 (RX) UART RX 3.3V
6 RA9 (TX) UART TX 3.3V




  • Features:
  •
  • Display Specifications: 1.3" IPS dislay with 240*240 resolution
  • Storage method: 64Mbit norFlash(Support customize)
  • Operation type: Rotate and press
  • Ambient Light: RGB tricolor light circle at thebottom, customizable
  • UI content: Support customization and secondarydevelopment of TouchGFX
  • Appearance: Plastic chrome plated/2.0D/2.5Dintegrated black glass cover plate(customizable)
  • Operating voltage: 4.5V~5.5V, Typical : 5V
  • Operating current: 50mA~150mA, Typical 80mA
  • Display Color: 65K
  • Display Brightness: 300土10%cd/m2
  • Operating temperature: -20C~70C/96H
  • Storage temperature: -30C~80°C/96H




  • Advantages:
  •
  • Simple and easy operation mode: left and right unblocked particle sense rotation+ axial pressure sponge rebound
  • Color OCA optical bonding with excellent seamless performance outer ring
  • Fancy design with Bottom RGB atmosphere lamp circle
  • STM32C5A3: high-performance 32-bit Arm® Cortex®-M33 core delivering up to 3x the performance of typical Cortex-M0+ devices for cost-sensitive applications.
  • Long rotation life time, up to 30000 times (positive 1 week + negative 1 week counts as 1 time ), the pressing life is more than 30,000 times
  •

smart knob display module STM32



  •



Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
1.3 inch round touch screen

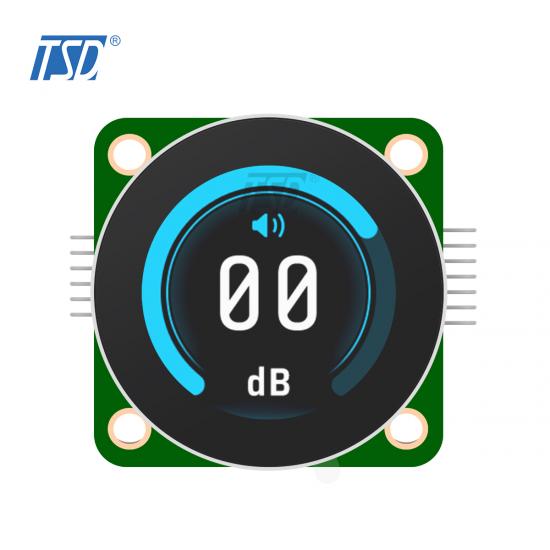

TSD 1.3 Inch round rotary switch display HMI Knob TFT LCD Display Solution
