TSDHD Knob Adapter for Gen4-STM32 Smart module display



  • Model Name: TSDHD Knob Adapter
  • Type: Adapter
  • Application: for all TSDHD smart module display series
  • Numbers of Expansion Port: 6 pins
  • Controller: STM32 series









Description:



TSDHD knob adpater, apply to  TSDHD GEN4-STM32 series smart display module, it is a specialized device that serves as an intermediary between knob display modules and external systems or devices. It facilitates the seamless integration of knob display modules into various setups by translating signals and enabling effective communication between the display module and the connected components.

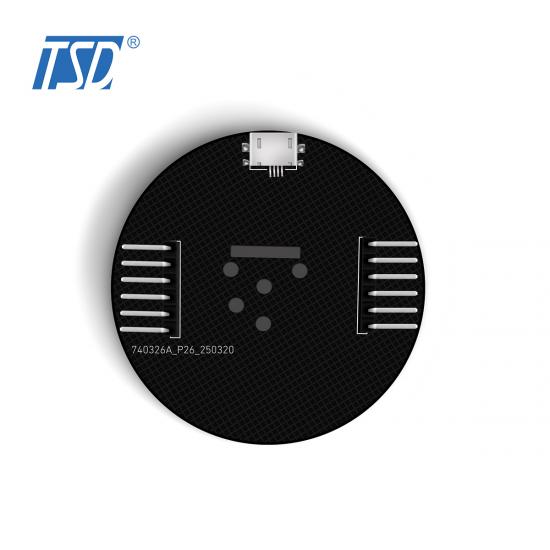

Picture:

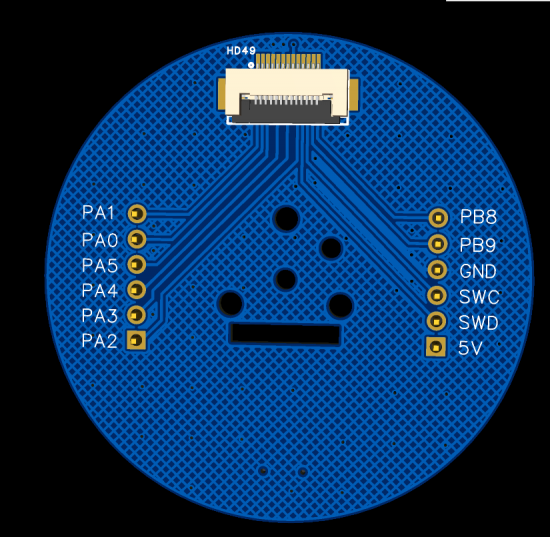

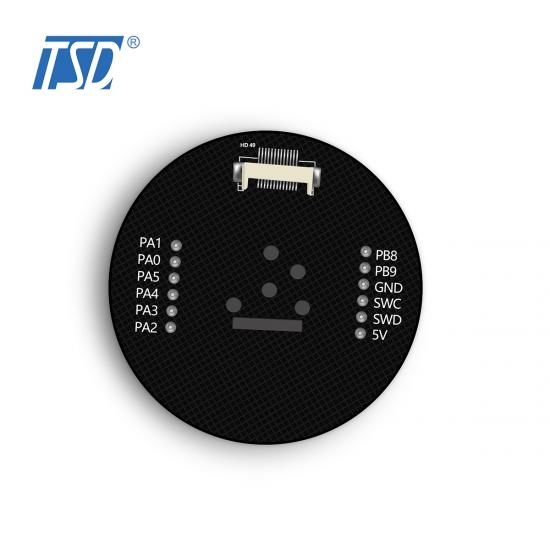

Expansion Port:



Pin No.  Name Description
PA1 PB8
PA0 PB9
PA5 GND Power Positive
PA4 SWC
PA3 SWD

PA2 5V
Power Positive

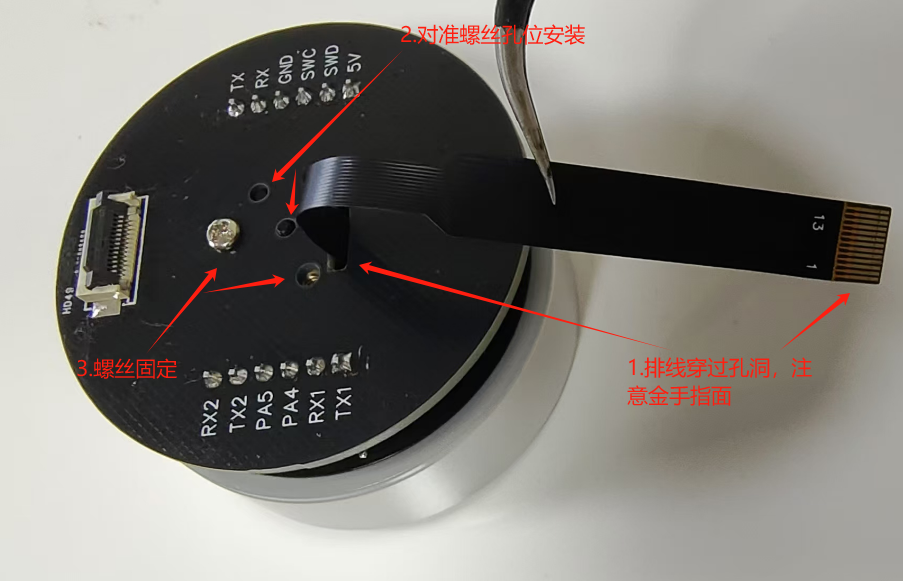

  • Diagram of the connection:
  •

  • 1.FPC cable through the holes, pay attention to the contact side
    2.Align the screw holes for installation
    3.Screw fastening
  • 4.Contact side down. Insert the rows.
    5.After the FPC cable are inserted and the row of seat flap downward toggle to lock the cable.
  •

  • Applications:
  •
  • Team Source Display (TSD) specialized in LCD display (0.96 inch to 32 inch) & Touch panel & Intelligent Control & HMI modules. We have the ability to customize STM32 embedded displays basing on customer's requirements, contact us today to get more details freely. For this GEN-4 Intelligence HMI display, the applications are as belows:
  •
  • 1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

    2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

    3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

    4. Medical Devices: sphygmomanometer.

  • 5. Sports Equipment: running machine.

    6. Industrial Control Equipment: remote control, punched-card machine.

    7. Information Terminal Display: POS, PDA, Handheld devices.

    8. Security Products: elevator controller, electronic indicator

  • And other other fields...
  •
