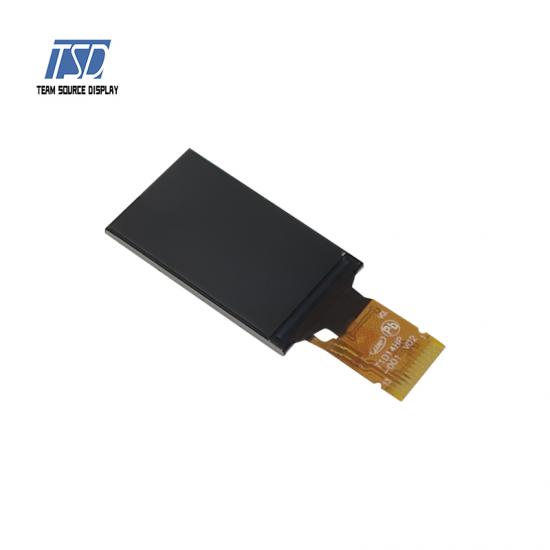

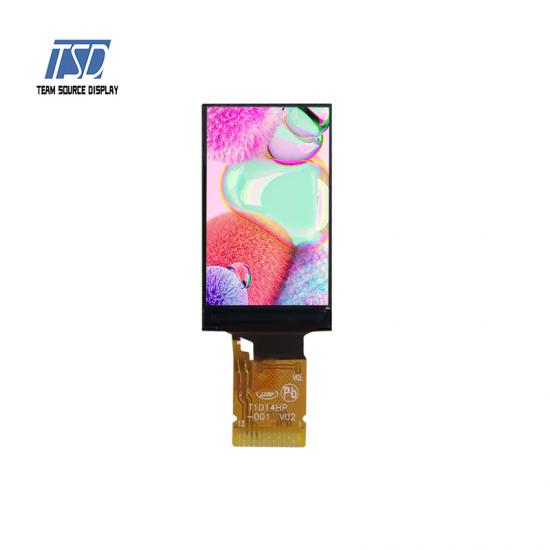

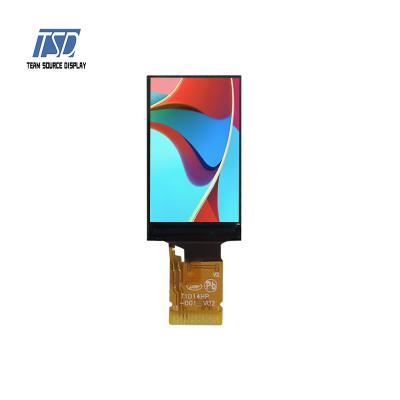

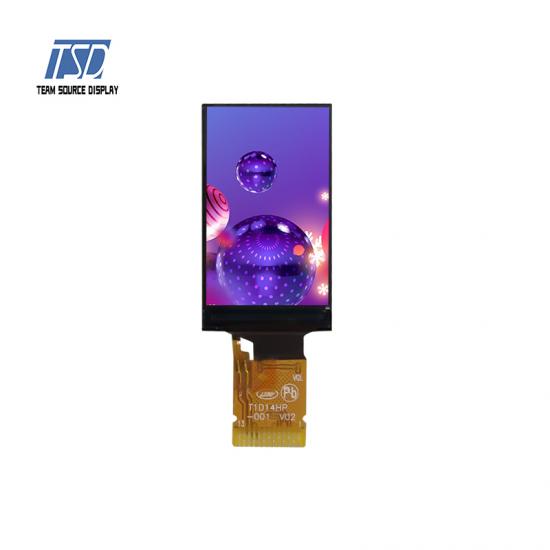

TSD Custom 1.14 Inch TFT Touch Screen TST11401A

Model Name: TST11401A

LCD Type:  TFT

Resolution:135xRGBx240

Viewing angle: ALL

Brightness: 350

Driver IC: ST7789V2-G4-A

Interface:SPI

Description:

TST11401A is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 17.6x31x1.56 measurement on the diagonal, with an active resolution of 135xRGBx240. This 1.14 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.

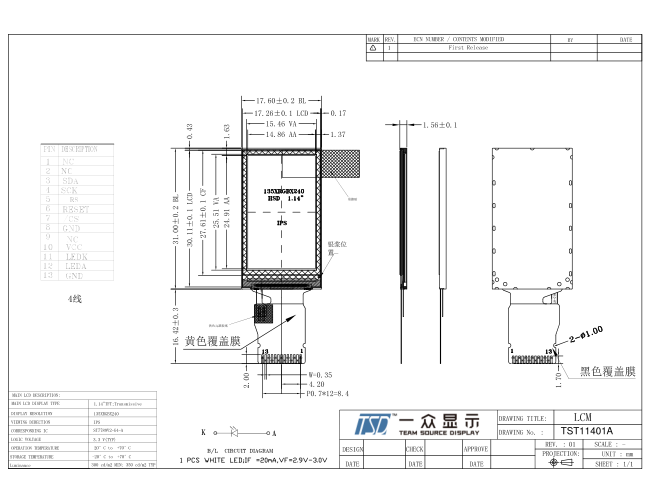

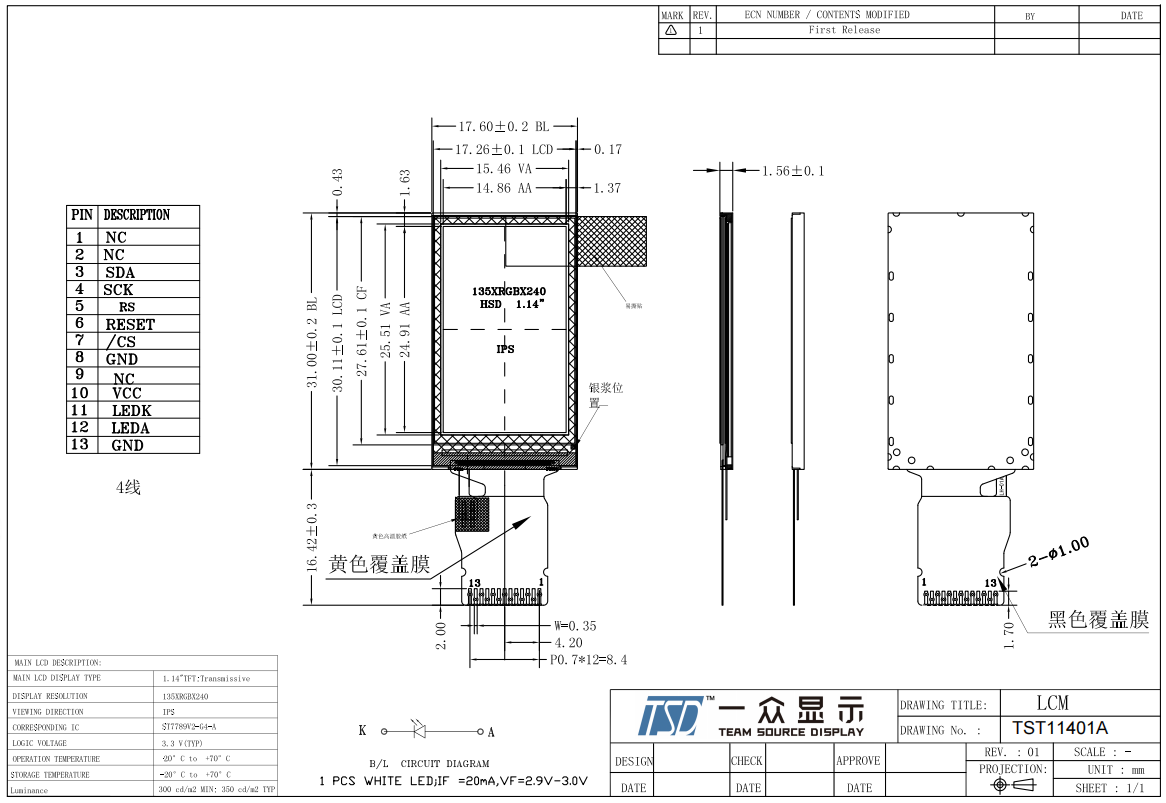

Drawing:


Specifications:

General Specification

Part No.

TST11401A

Outline Dimension(mm)

17.6x31x1.56

Active Area(mm)

14.86x24.91

Resolution(dots)

135xRGBx240

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Number of Pixel(pixels)

320RGB(H)xRGBx480V)

Touch panel

CTP

Driver IC

ST7789V2-G4-A

Pixel arrangement

RGB-stripe

Display mode

IPS

Surface treatment

Antiglare

View direction

ALL o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

SPI

Module lifetime(Hours)

50,000-100,000


Applications:

1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.

Security Products: elevator controller, electronic indicator.
