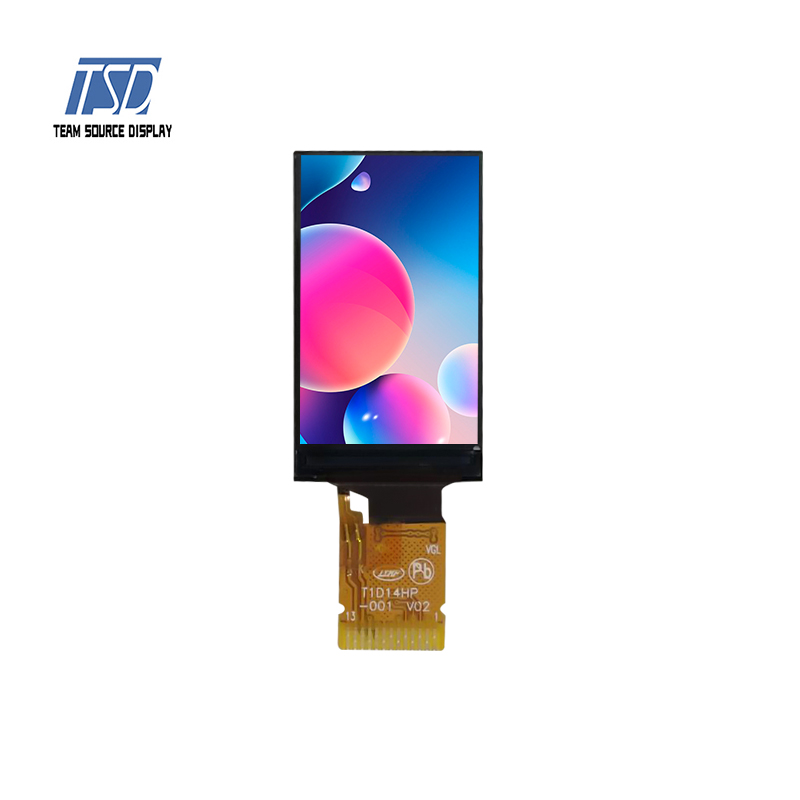

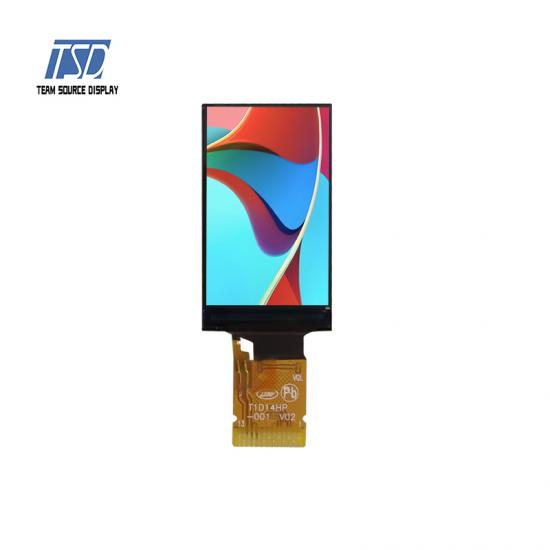

TSD 1.1 inch 135x240 IPS TFT LCD with SPI interface

  • Model Name: TST011QVHS-02
  • LCD Type: 1.1 inch TFT LCD display
  • Resolution: 135x240
  • Viewing angle: All o'clock
  • Brightness: 350 cd/m2
  • Driver IC: ST7789P3
  • Interface: SPI
  • Touch Screen: without
  • Operating Temperature: -10 ~ +60℃
  • Storage Temperature: -20 ~ +70℃

Description:

TST011QVHS-02 is 1.1 inch 135x240 resolution SPI interface LCD display module in consumer grade, It could be used for consumer electronic product, which is with display. The brightness is 350 nits, White LEDs is 1 piece, backlight current is 20mA and backlight voltage is 3.0V, which could be customized. For this 1.1 inch TFT LCD module, driver IC is ST7789P3, viewing direction is free, all o'clock, color depth is 262K, white backlight and transmissive mode.


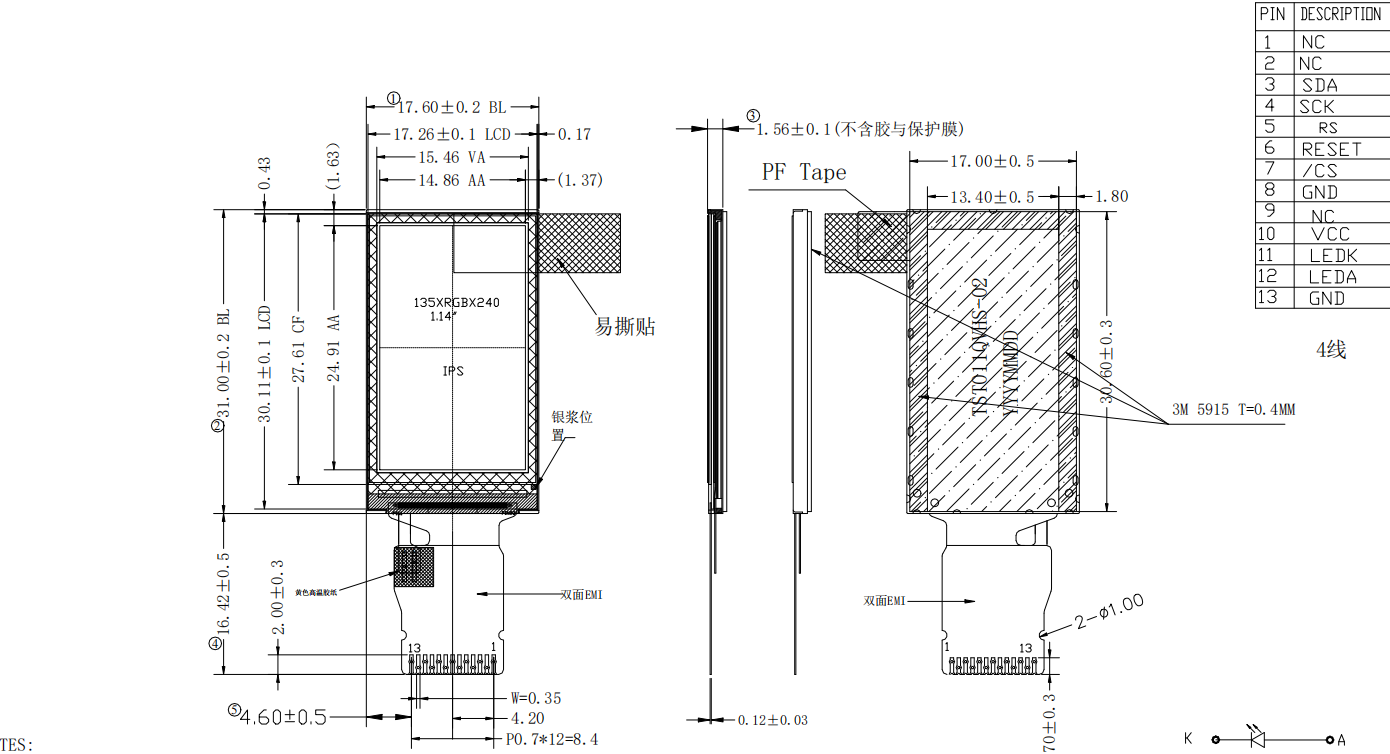

Drawing:




Specifications:



General Specification
Part No.  TST011QVHS-02
Outline Dimension(mm)  68.9x112.5x3.83
Active Area(mm) 56.16x93.6
Resolution(dots) 132x240
Operating temperature(°C) -10 ~ +60°C
Storage temperature(°C) -20 ~ +70°C
Number of Pixel(pixels) 132(H)xRGBx240(V)
Touch panel  without CTP
Driver IC ST7789P3
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 1.1 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI interface
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol
1-2 NC
3 SDA
4 SCK
5 RS
6 RESET
7 /CS
8 GND
9 NC
10 VCC
11 LEDK
12 LEDA
13 GND




Applications:



For our 1.1 inch 132x240 TFT LCD display model TST011QVHS-02, it is normally used in smart home and home appliance device.


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 1.1" contains 132x240 dots and can display up to 16.7M colors.
