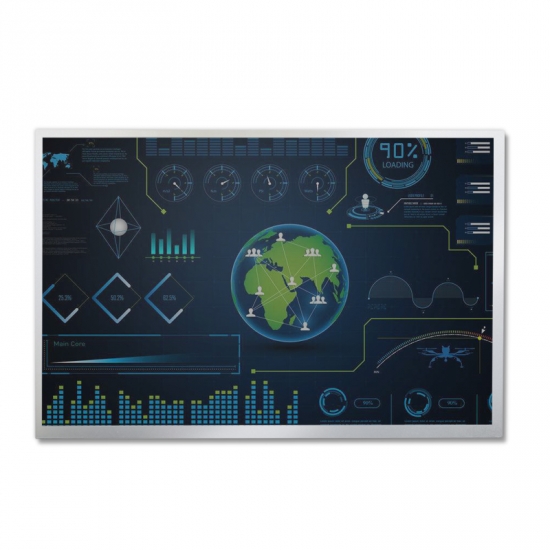

1366x768 resolution 15.6 inch lcd monitor with LVDS interface


15.6 inch lcd
15.6 inch lcd

1366x768 resolution 15.6 inch lcd monitor with LVDS interface



Inquiry now Data sheet

1366x768 resolution 15.6 inch lcd monitor with LVDS interface



Specification
Part No. TST156XW01
Screen Diagonal
 15.6"
Active Area(mm)
344.232 (H) x 193.536 (V)
Resolution(dots) 1366*RGB*768
Operating temperature(°C) 0-60
Storage temperature(°C) -20-60
Number of Pixel(pixels) 1366RGB(H)xRGBx768(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Luminance 400 cd/m2
Surface treatment Antiglare, 3H
View direction  Wide view
Weight(g)
1250 (Typ.), 1350(Max.)

Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface One channel LVDS
Module lifetime(Hours) 20,000-50,000
