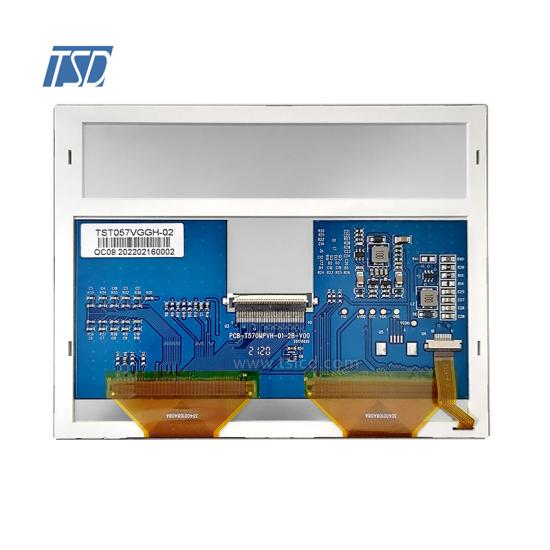

TSD 5.7 inch tft lcd display 640x480 resolution with high brightness



  • Model Name: TST057VGGH-02
  • LCD Type: 5.7 inch TFT LCD display module
  • Resolution: 640x480
  • Viewing angle: 6 o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: HX8250-A01+HX8678B
  • Interface: RGB 18bit
  • Touch Screen: available with RTP&CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



Team Source Display model TST057VGGH-02 Colorful TFT LCD, Industrial grade display, VGA (640 horizontal by 480 vertical pixels) resolution, normally white with transmissive type, HX8250-A01+HX8678B driver IC, RGB 18bits 40pininterface, high brightness 1000nits.

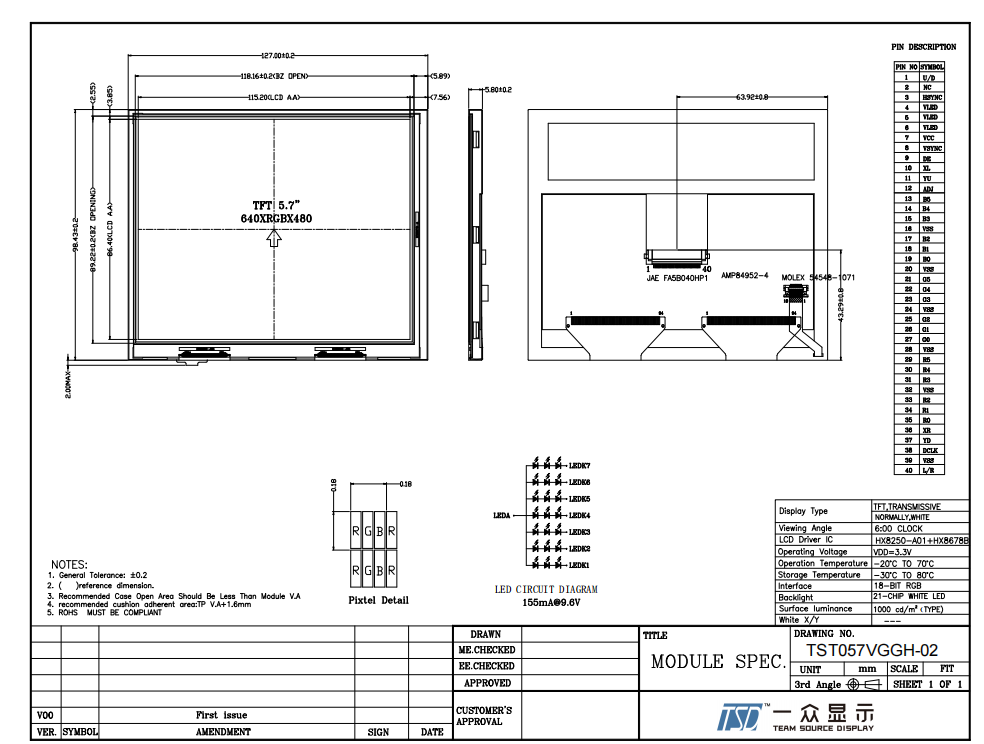

Drawing:




Specifications:



General Specification
Display mode
Normally white,TN, 5.7 inch TFT, Transmissive
Part No.  TST057VGGH-02
Outline Dimension(mm)

127.00(W)x98.43(H)x5.8(D)

Active Area(mm) 115.20(W) x 86.40(H)
Resolution(dots) 640x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Touch panel  available with CTP&RTP
Driver IC HX8250-A01+HX8678B
Pixel arrangement RGB-stripe
Backlight 21LEDs
View direction  6H
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 18bits
Module lifetime(Hours) 30,000-50000





Pins Description
Pin No.  Symbol Description
1 U/D

Up/down scan setting.

When U/D=H, reverse scan.

When U/D=L, normal scan.

2 NC No connection
3 HSYNC

Horizontal sync input in digital RGB and CCIR601 mode.

(Short to GND if not used)

4 VLED Power supply for BLU LDO circuit.
5 VLED Power supply for BLU LDO circuit.
6 VLED Power supply for BLU LDO circuit.
7 VCC Power supply.
8 VSYNC

Vertical sync input in digital RGB and CCIR601 mode.

(Short to GND if not used)

9 DE

Input data enable control. When DE mode, active High to enable data input.

Default pull low.

10 NC(X2)

No connection.(Touch panel control PIN: X2)

11 NC(Y1) No connection.(Touch panel control PIN: Y1)
12 ADJ Chip Enable (Active High).
13 B5 Blue data input.
14 B4 Blue data input.
15 B3 Blue data input.
16 VSS Power ground.
17 B2 Blue data input.
18 B1 Blue data input.
  B0 Blue data input.
20 VSS Power ground.
21 G5 Green data input.
22 G4 Green data input.
23 G3 Green data input.
24 VSS Power ground.
25 G2 Green data input.
26 G1 Green data input.
27 G0 Green data input.
28 VSS Power ground
29 R5 Red data input.
30 R4 Red data input.
31 R3 Red data input.
32 VSS Power ground.
33 R2 Red data input.
34 R2 Red data input.
35 R0 Red data input.
36 NCX1)
No connection.(Touch panel control PIN: X1).
37 NC(Y2)
No connection.(Touch panel control PIN: Y2).
38 DCLK
Clock sigral. I atching data at the nising edge.
39 VSS Power ground.
40 LR

Ihe shift direction of device internal shift register is controlled by this pin.

as shown below:

L/R=H:STH->SO1->...->SO960->STHO

L/R=L: STH->SO960->...->SO1->STHO




Applications:



For this 5.7 inch TFT LCD display TST057VGGH-02, Industrial grade with high bitghtness that is sunlight readable could be suitable for Industrial equipment. Instrument panel, Industrial PC, Test&Measurement equipment, automation equipment.


Product Features:



1. High brightness & Sunlight Readable.

2. Outdoor & Indoor Applications.

3. Industrial grade

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
