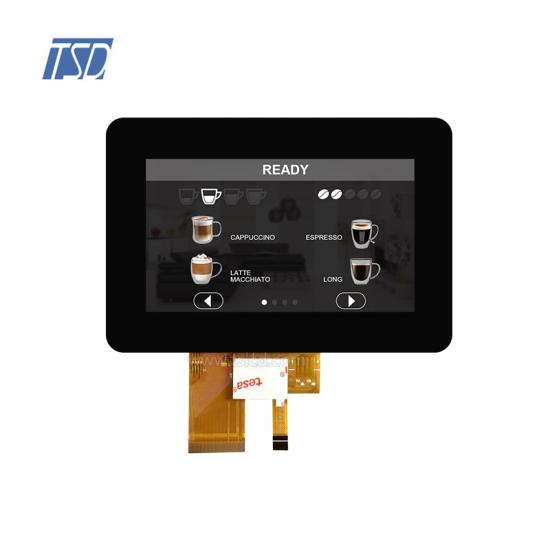

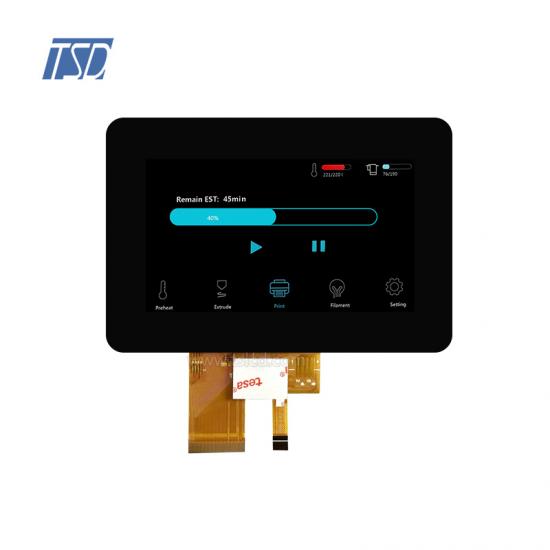

4.3 inch TFT LCD with 480x272 res with wide temperature and CTP
| Specification | ||
| Part No. | TST043WQHS-115C | |
| Outline Dimension(mm) |
123.04(H) x 84.46(V) x4.78(T)
|
|
| Active Area(mm) | 95.04 (H) x 53.86 V) | |
| Resolution(dots) | 480x (RGB) ×272 | |
| Operating temperature(°C) | -30-80 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 480RGB(H)xRGBx272(V) | |
| Touch panel | CTP |
|
| Driver IC | ST7282 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | 1.728(Typ.) | |
| Interface | RGB Interface |
|
| Module lifetime(Hours) | 50,000-100,000 | |
