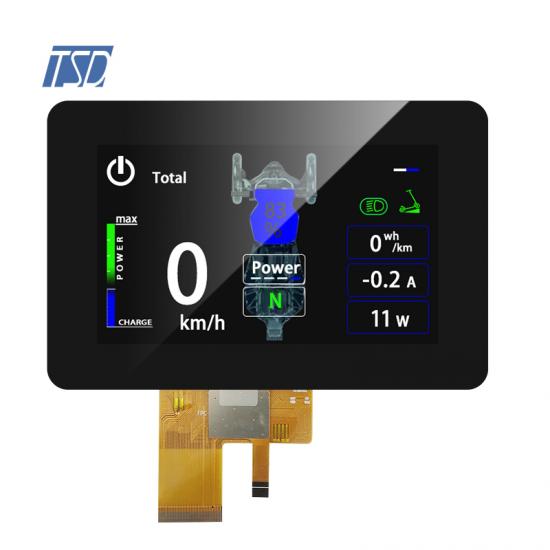

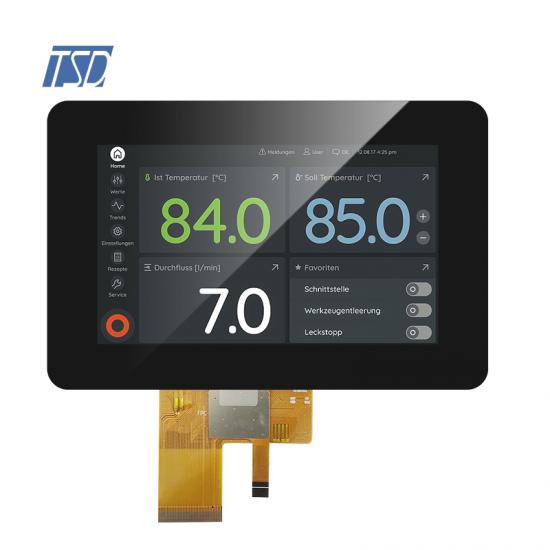

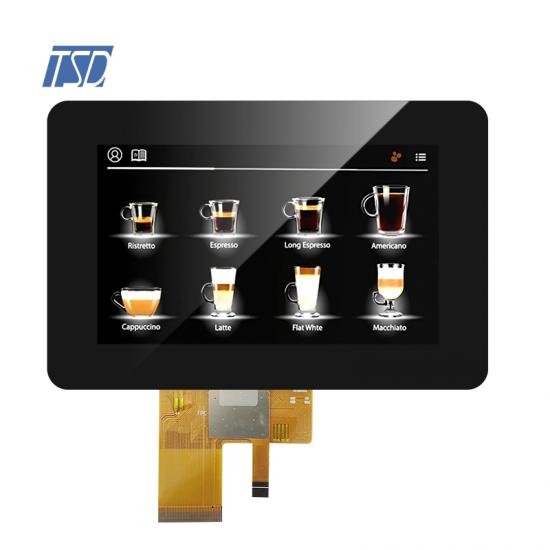

TSD 5 inch TFT LCD Module IPS Screen with capacitive touch panel

TSD 5 inch TFT LCD Module IPS Screen with capacitive touch panel



TSD 5 inch TFT LCD Module IPS Screen with capacitive touch panel



Specification
Part No. TST050WVBS-86C
Outline Dimension(mm)
120.70(H) x 75.80(V) x 2.95(D)
Active Area(mm) 108.00 (H) x 64.80 (V)
Resolution(dots) 800x (RGB) ×480
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel CTP
Driver IC  ST7262-G4-E
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system 1.728(Typ.)
Interface MIPI Interface
Module lifetime(Hours) 50,000-100,000
