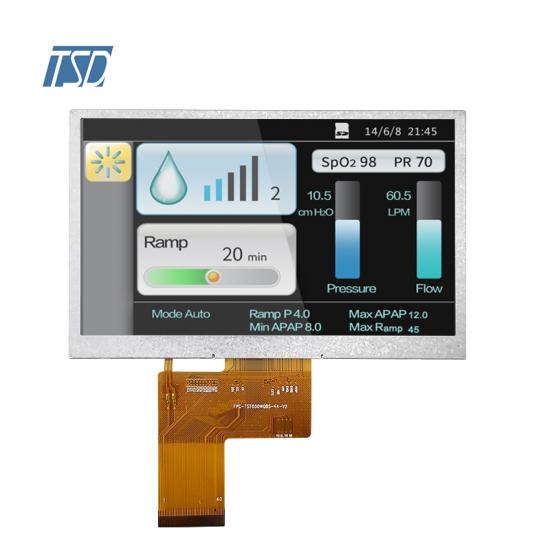

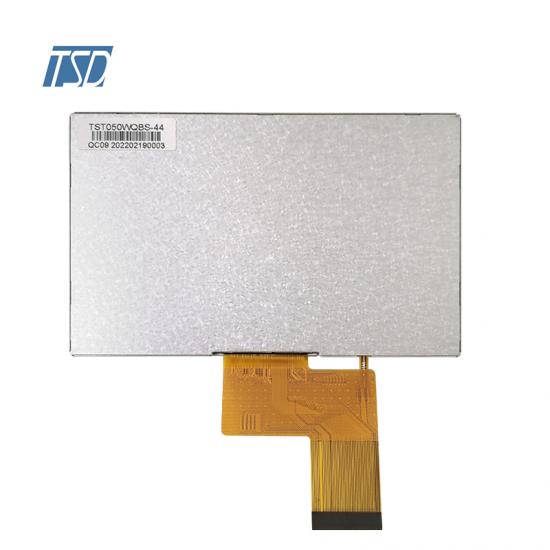

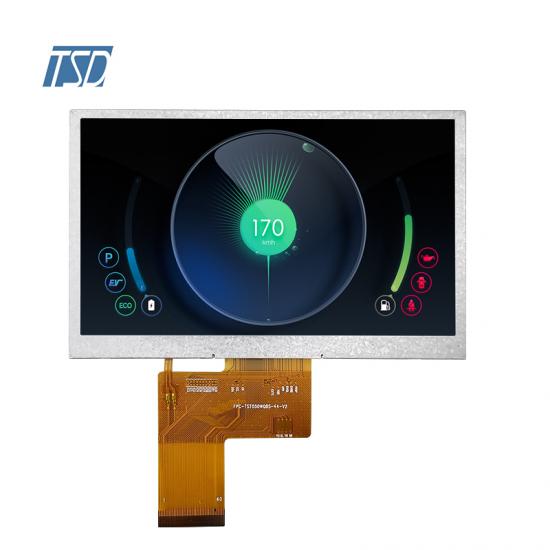

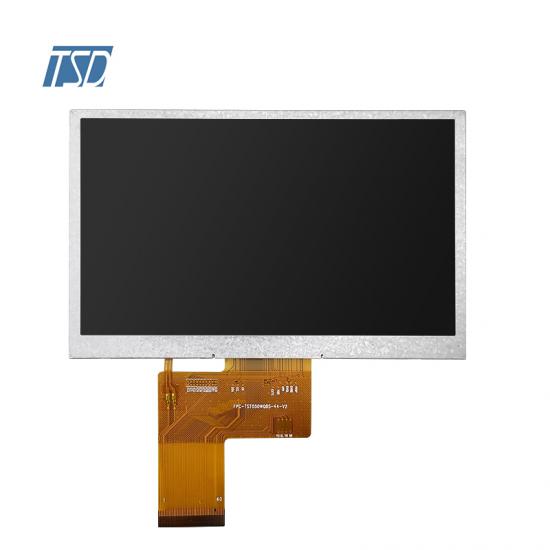

TSD 5 inch LCD display 480x272 resolution with 6 o'clock viewing angle

  • Model Name: TST050WQBS-44
  • LCD Type: 5 inch TFT LCD display module
  • Resolution: 480x272
  • Viewing angle: 6 o'clock
  • Brightness:  300cd/m2
  • Driver IC: ST7257
  • Interface: RGB 24bit
  • Touch Screen: available with RTP&CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



Team Source Display model TST050WQBS-44 is a standard color TFT LCD, normally white with transmissive type TN panel, 480x272 resolution, ST7257 driver IC, RGB-24bits 40pin interface, 16.7M color depth, Anti-glare surface treatment.

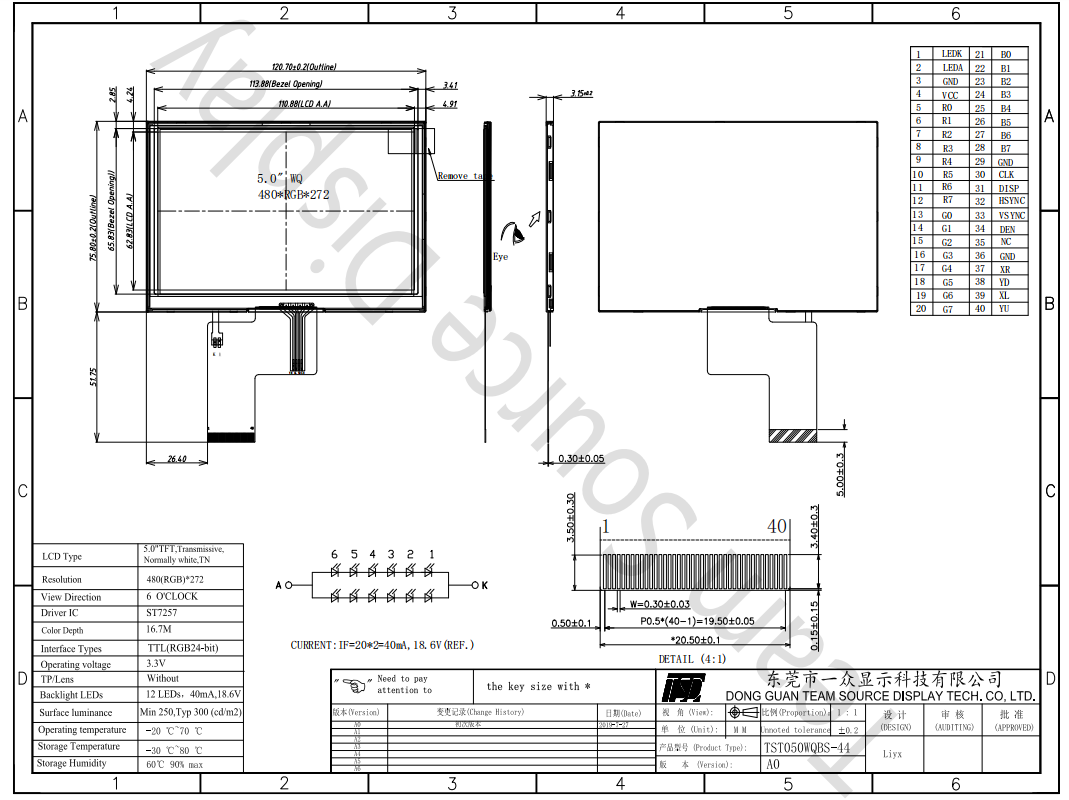

Drawing:




Specifications:



General Specification
Part No.  TST050WQBS-44
Outline Dimension(mm)

120.70(W)x75.80(H)x3.15(D)

Active Area(mm) 110.88(W) x 62.83(H)
Resolution(dots) 480x (RGB) × 272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Operating Voltage
3.3V
Touch panel  available with CTP&RTP
Driver IC ST7257
Pixel arrangement RGB-stripe
Display mode Normal white,TN, 5 inch TFT, transmissive
View direction  6H
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24bits
Module lifetime(Hours) 30,000-50000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin
2 LEDA Backlight A Anode input pin
3 GND System Ground.(0V)
4 VCC Power supply +3.3V
5-12 R0-R7 Red data BUS
13-20 G0-G7 Green data BUS
21-28 B0-B7 Blue data BUS
29 GND System ground. (0V)
30 CLK Clock for input data. Data latched at the rising/falling edge of this signal. Default is falling edge.
31 DISP

Standby mode control. (Normally pull high).

DISP="L", enter standby mode for power saving. Timing controller and source driver will tum off, all outputs are Hi-Z

DISP="H", normal operation.

32 HSYNC Horizontal sync input in digital parallel RGB. Negative polarity.
33 VSYNC Vertical sync input in digital parallel RGB. Negative polarity.
34 DEN

Input data enable control. When DE mode, active High to enable data input.

(Normally pull low)

35 NC Not connection
36 GND System ground. (0V)
37 XR/X+ Not connection
38 YD/Y- Not connection
39 XL/X- Not connection
40 YU/Y+ Not connection




Applications:

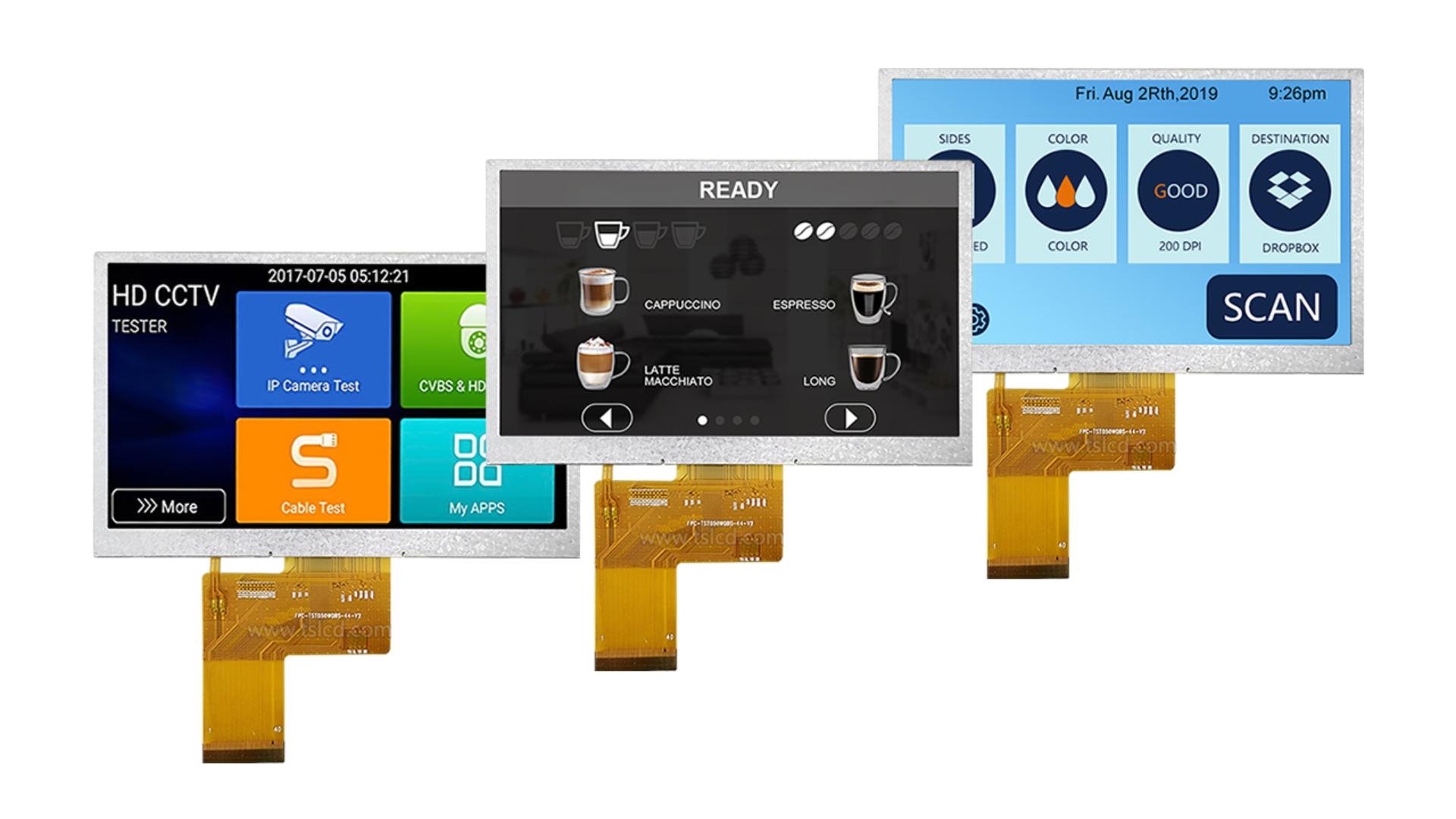

For this 5 inch TFT LCD display TST050WQBS-44,  480x272 resolution, widely used for smart home applications, like coffee machines, washing machines, smart door bell, IP phone, etc.




Product Features:



1. 480x272 resolution of 5inch LCD display.

2. Standard touch screen and customization could be supported.
