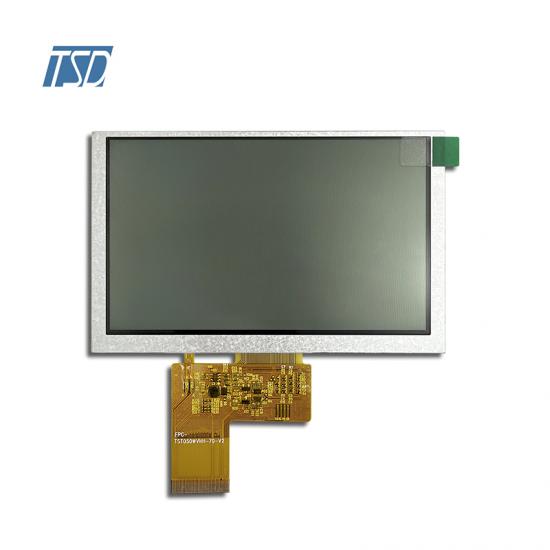

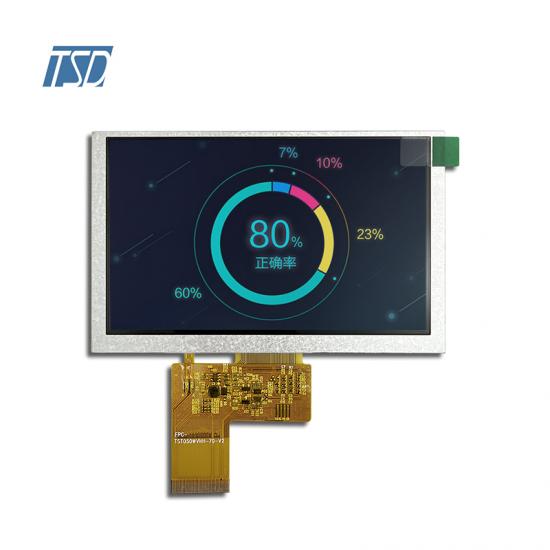

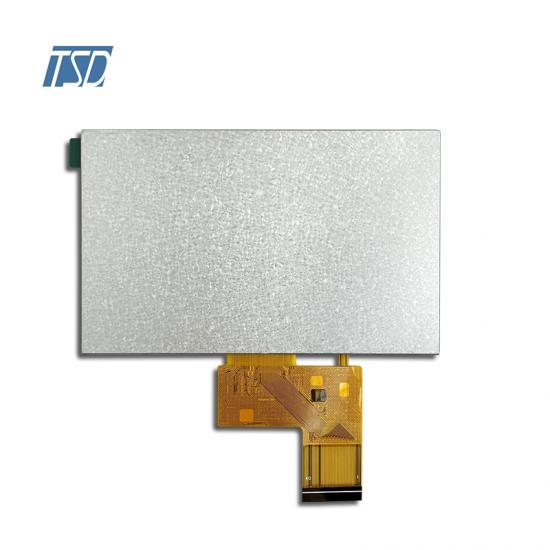

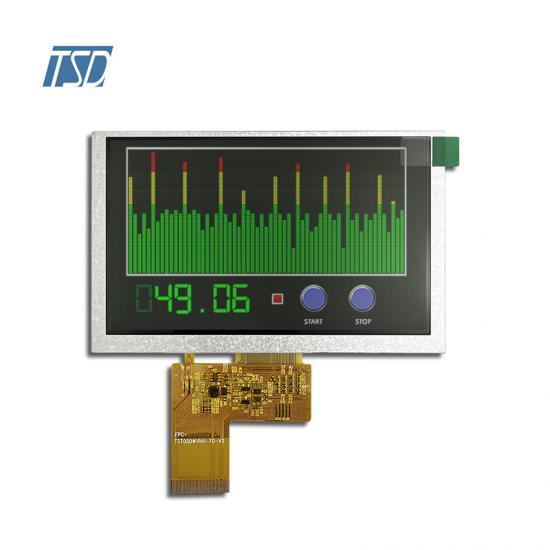

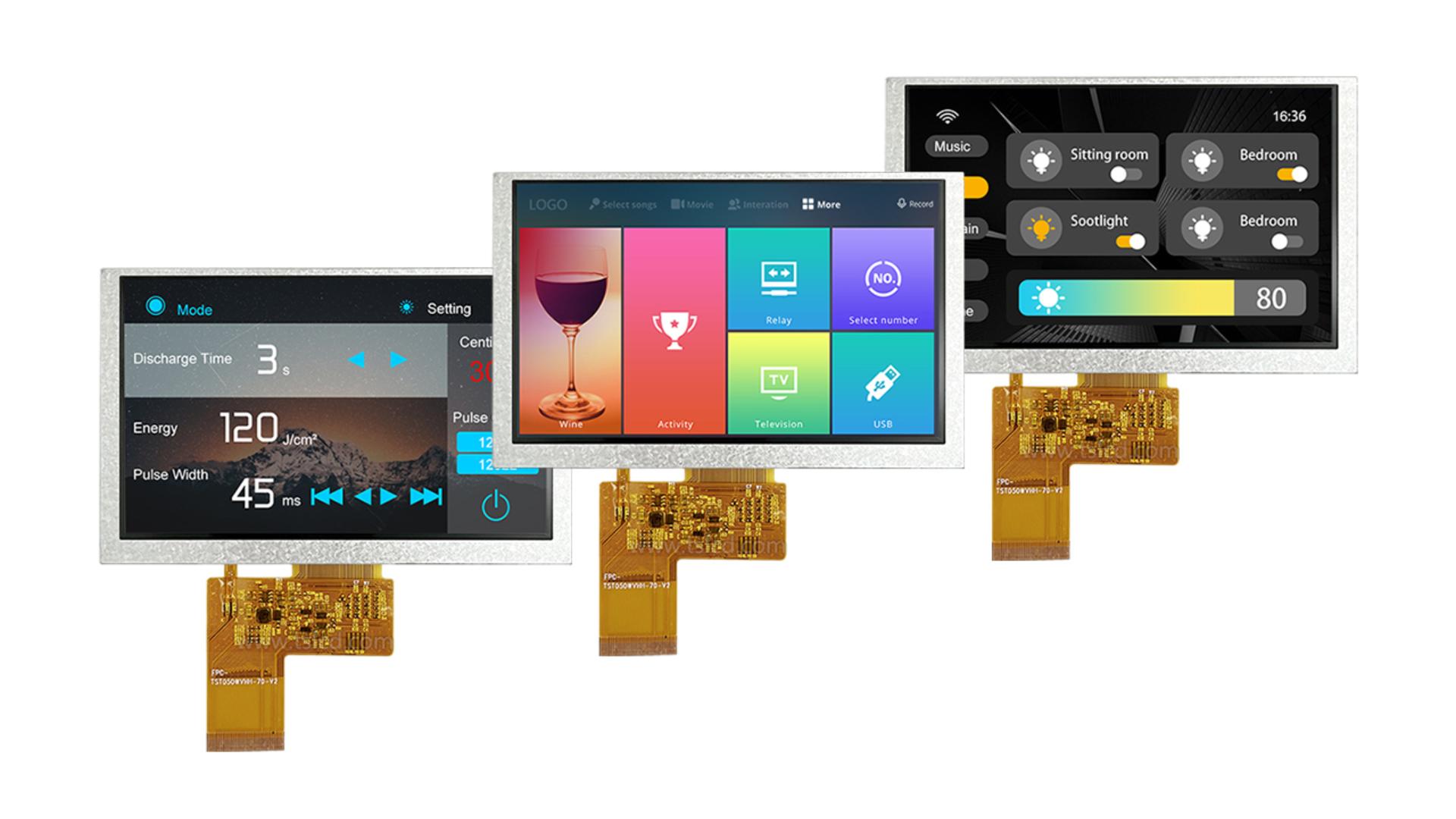

TSD 5 inch Tft LCD Display Sunlight Readable TN LCD Panel

  • Model Name: TST050WVHH-70
  • LCD Type: 5 inch TFT LCD display module
  • Resolution: 800x480
  • Viewing angle: 6 o'clock
  • Brightness: 40 cd/m2
  • Driver IC: HX8264D+HX8664B
  • Interface: RGB 24bit
  • Touch Screen: available with RTP&CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



Team Source Display model TST050WVHH-70 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit, a backlight system and can support a touch panel on top. This TFT LCD 5.0'' screen with WVGA (800 horizontal by 480 vertical pixels) resolution, normally white with transflective type, HX8264D+HX8664B driver IC, RGB 24bits interface, can be sunlight readable in outdoor applications.

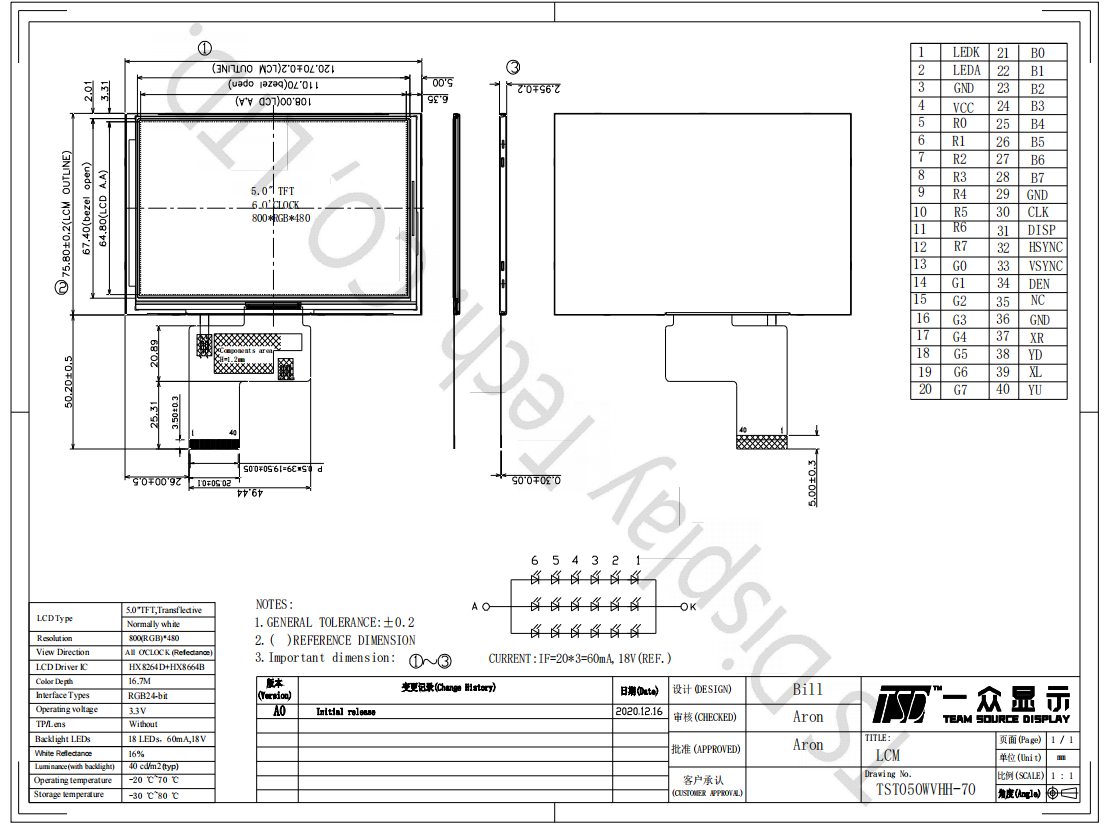

Drawing:




Specifications:



General Specification
Part No.  TST050WVHH-70
Outline Dimension(mm)

120.70(W)x75.80(H)x2.95(D)

Active Area(mm) 108(W) x 64.80(H)
Resolution(dots)  800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480V)
Touch panel  available with CTP&RTP
Driver IC HX8264D+HX8664B
Pixel arrangement RGB-stripe
Display mode Normal white,TN, 5 inch TFT, Transflective
View direction  6H
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24bits
Module lifetime(Hours) 30,000-50000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin
2 LEDA Backlight A Anode input pin
3 GND System Ground.(0V)
4 VCC Power supply +3.3V
5-12 R0-R7 Red data BUS
13-20 G0-G7 Green data BUS
21-28 B0-B7 Blue data BUS
29 GND System ground. (0V)
30 CLK Clock for input data. Data latched at the rising/falling edge of this signal. Default is falling edge.
31 DISP

Standby mode control. (Normally pull high).

DISP="L", enter standby mode for power saving. Timing controller and source driver will tum off, all outputs are Hi-Z

DISP="H", normal operation.

32 HSYNC Horizontal sync input in digital parallel RGB. Negative polarity.
33 VSYNC Vertical sync input in digital parallel RGB. Negative polarity.
34 DEN

Input data enable control. When DE mode, active High to enable data input.

(Normally pull low)

35 NC Not connection
36 GND System ground. (0V)
37 XR/X+ Not connection
38 YD/Y- Not connection
39 XL/X- Not connection
40 YU/Y+ Not connection




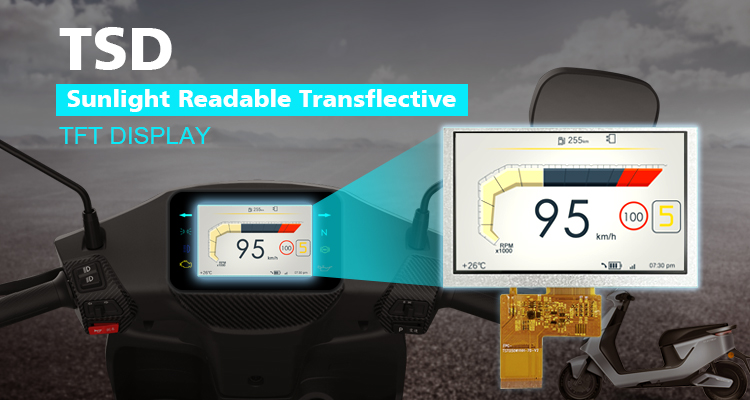

Applications:



For this 5 inch TFT LCD display TST050WVHH-70 , transflective TN Panel that could be used in outdoor applications. Especially for two-wheeled dashboard & cluster & insrtument panel & gauge, and EV charger. operating temperature -20~+70 degrees. turn on or turn off backllight still can be display.




Product Features:



1. Sunlight Readable.

2. Transflective type with better effect in outdoor.

3. Standard touch screen and customization could be supported.
