Description:

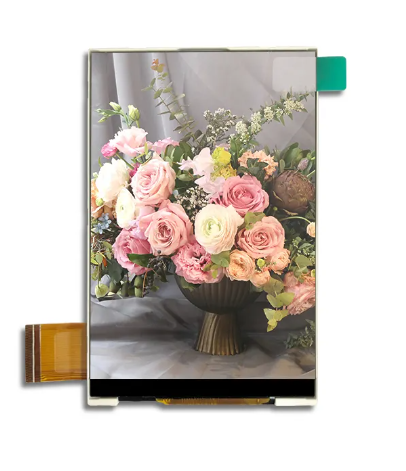

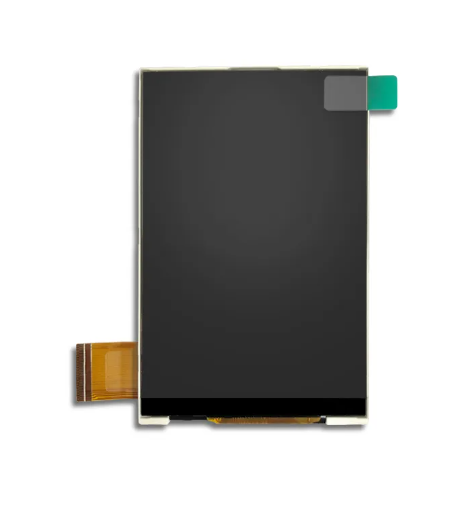

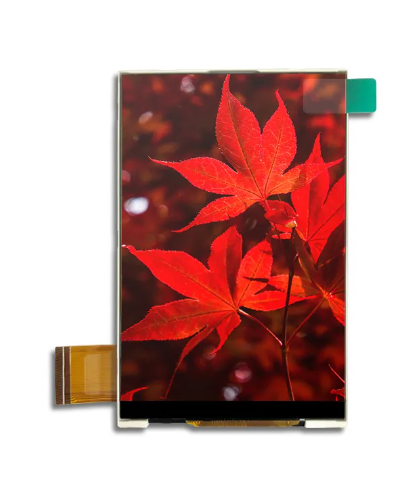

This display module is aTransmissive,Normally white,TN TFT liquid crystal display (LCD), This module is composed of a TFT LCD module, a driver circuit, and a back-light unit and without capacitive touch panel.The resolution of it is 480(RGB)×640 and the driver ic is ILI9805C

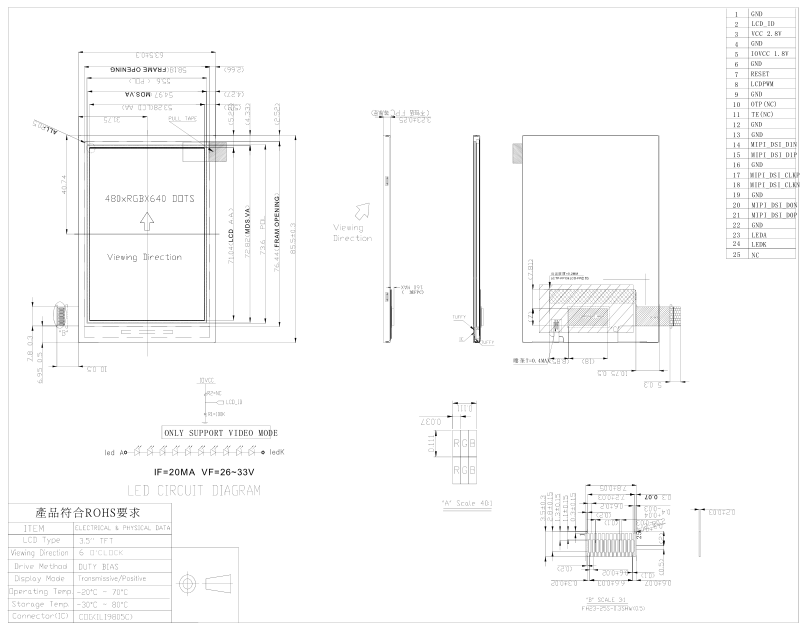

Drawing:
Specification
|
General Specification |
||
|
Part No. |
T035VGGI-48 |
|
|
Display Size(Diagonal) |
3.5 inch |
|
|
LCD type |
Transmissive,Normally white,TN |
|
|
Resolution |
480 x (RGB) × 640 |
|
|
View Direction |
6 o’clock |
|
|
Module Outline |
63.5(W)×85.5(L)×3.23(D) |
|
|
Active Area |
53.28(W)×71.04 (L) |
|
|
Viewing Area |
ALL |
|
|
Backlight |
White LED |
|
|
Interface |
MIPI interface |
|
|
Driver IC |
ILI9805C |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
|
B/L system |
TBD(Typ.) |
|
Operating Temperature |
-20～60 |
|
|
Storage Temperature |
-30～70 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
GND |
System ground. |
|
2 |
LCM_ID |
PIN for Customer |
|
3 |
VCC A |
Supply voltage to the analog circuit. |
|
4 |
GND |
System ground. |
|
5 |
IOVCC |
Power supply to the I/O. |
|
6 |
GND |
System ground. |
|
7 |
RESET |
RESET pin. |
|
8 |
LCDPWM |
It is a PWM type control signal for brightness of the LED backlight. |
|
9 |
GND |
System ground. |
|
10 |
OTP(NC) |
NC |
|
11 |
TE(NC) |
NC. |
|
12 |
GND |
System ground. |
|
13 |
GND |
System ground. |
|
14 |
MIPI_DSI_D1N |
MIPI_DSI data Lane 1 negative-end input pin. |
|
15 |
MIPI_DSI_D1P |
MIPI_DSI data Lane 1 positive-end input pin. |
|
16 |
GND |
System Ground. (0V) |
|
17 |
MIPI_DSI_CLKP |
MIPI_DSI clock Lane positive-end input pin. |
|
18 |
MIPI_DSI_CLKN |
MIPI_DSI clock Lane negative-end input pin. |
|
19 |
GND |
System ground. |
|
20 |
MIPI_DSI_DON |
MIPI_DSI data Lane 0 negative-end input/output pin. |
|
21 |
MIPI_DSI_D0P |
MIPI_DSI data Lane 0 positive-end input/output |
|
22 |
GND |
System ground. |
|
23 |
LEDA |
Anode for back light power supply. |
|
24 |
LEDK |
Cathode for back light power supply. |
|
25 |
NC |
NC |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
