Description:

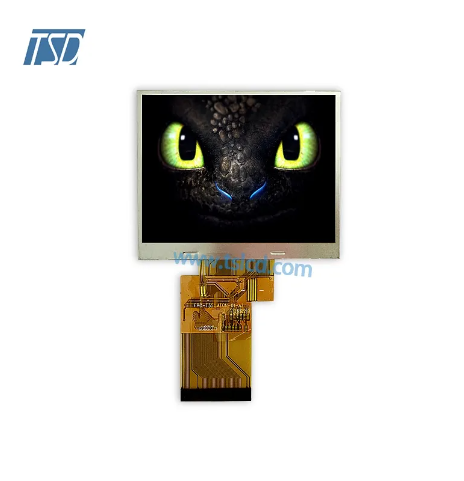

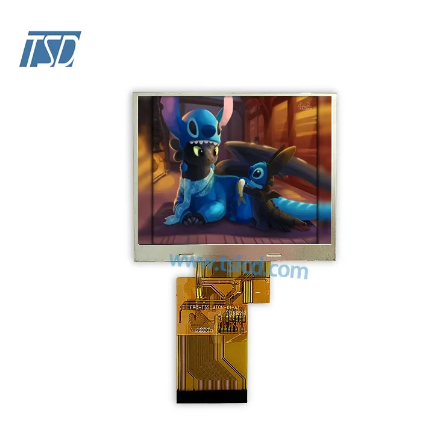

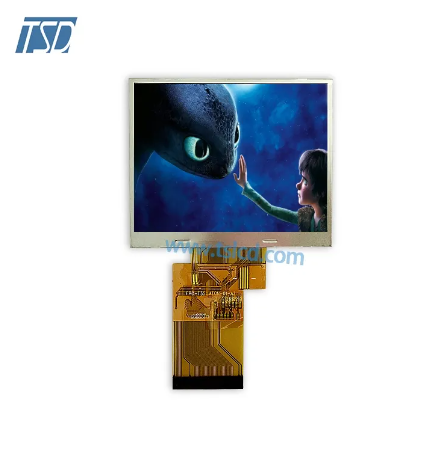

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.5”contains 240*320 dots and the Active area is 70.08*52.56

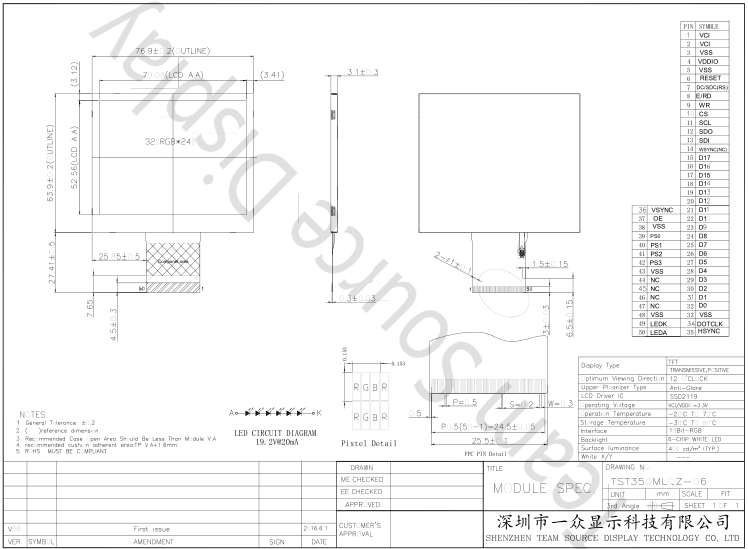

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST350MLQZ-06 |
|
|
Display Size(Diagonal) |
3.5inch |
|
|
LCD type |
Normally white |
|
|
Resolution |
240*320 |
|
|
View Direction |
6 o’clock |
|
|
Module Outline |
76.9*63.9*3.1 |
|
|
Active Area |
70.08*52.56 |
|
|
Touch |
Without |
|
|
Backlight |
6LEDS |
|
|
Interface |
18bit RGB+SPI |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1-2 |
VCI |
Power supply for analog |
|
3 |
VSS |
Ground. |
|
4 |
VDDIO |
Voltage input pin for logic I/O |
|
5 |
VSS |
Ground. |
|
6 |
RESB |
System reset pin. -An active low pulse at this pin will reset the IC, Connect to VDDIO in normal operation |
|
7 |
DC/SDC (RS) |
Aregister select signal. Low: select an index or status register, High: select a control register. |
|
8 |
E/RD |
6800-system : E (enable signal) 8080-system : RD (read strobe signal) Serial mode : Not used and should be connected to VDDIO or Vss |
|
9 |
WR |
8080-system : WR (write strobe signal) |
|
10 |
CS |
Chip select signal. |
|
11 |
SCL |
Serial clock input |
|
12 |
SDO |
Data output pin in serial interface |
|
13 |
SDI |
Data input pin in serial interface |
|
14 |
WSYNC |
Ram Write Synchronization output -Leave it OPEN when not used |
|
15~32 |
GND |
DB17~DB0 Data bus. |
|
33 |
VSS |
Ground. |
|
34 |
DOTCLK |
Dot-clock signal and oscillator source. |
|
35 |
HSYNC |
Line Synchronization input |
|
36 |
VSYNC |
Frame/Ram Write Synchronization input |
|
37 |
OE |
Display enable pin from controller. |
|
34~37 |
LEDK1~LEDK4 |
Backlight K Cathode input pin. |
|
38 |
VSS |
Ground. |
|
39 |
PS0 |
Refer of Table1 |
|
40 |
PS1 |
System Ground. (0V) |
|
41 |
PS2 |
Voltage input pin for logic I/O +1.8V |
|
42 |
PS3 |
No connect |
|
43 |
VSS |
Ground. |
|
44~47 |
NC |
Connection |
|
48 |
VSS |
Ground. |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
