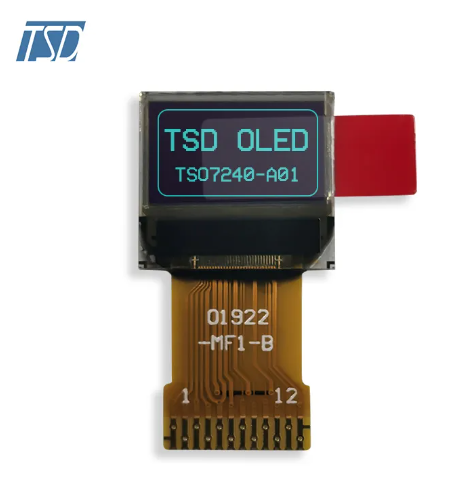

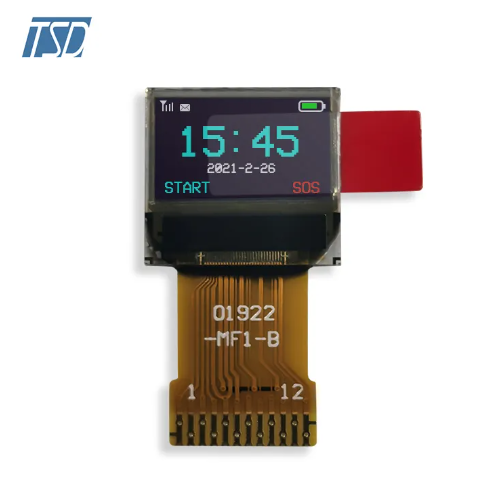

TSD oled display White Display Color 72×40 Dot Matrix IIC Interface

Display Color: White

Dot Matrix:72×40

Driver IC: SH1106

Interface: IIC

Wide range of operating temperature: -40℃ to 70℃Description:

Description:



IEO072040M1922 is a monochrome OLED display module with 72×40 dot matrix. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

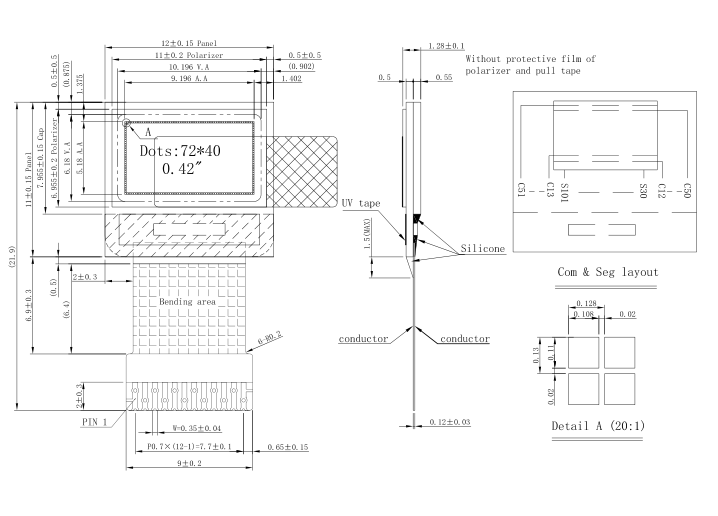

Drawing:



Specification



General Specification

Part No.

TSO7240-A01

Dot Matrix

72(W)×40(H)

Dot Size

0.108(W)×0.11(H)

Dot Pitch

0.128(W)×0.13(H)

Aperture Rate

71

Active Area

9.196 (W)×5.18 (H)

Panel Size

12(W)×11 (H) ×1.05(T)

Module Size

12(W)×19.9(H) ×1.28(T)

Diagonal A/A Size

0.42

Module Weight

0.37±10%





Pins Description

Pin No.

Symbol

Description

1

C1N C1P/C1N

Pin for charge pump capacitor; Connect to each other with a

capacitor.

C2P/C2N – Pin for charge pump capacitor; Connect to each other with a

capacitor.

2

C1P



3

C2P



4

C2N



5

VDD-3.3V

3.3V power supply pad for Power supply for charge pump circuit.

This pin should be disconnected when VPP is supplied externally

6

VSS

This is a ground pin.

7

RES



This is a reset signal input pad. When /RES is set to “L”, the settings are

initialized. The reset operation is performed by the /RES signal level.

8

SCL

The serial clock input pad

9

SI

The serial data input pad

10

IREF

This is a segment current reference pad. A resistor should be connected between

this pad and VSS.

11

VCOMH



This is a pad for the voltage output high level for common signals.

A capacitor should be connected between this pad

12

VPP

OLED panel power supply. Generated by internal charge pump.

Connect to capacitor. It could be supplied externally





Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
