TSD FHD 1080X1920 tft lcd display MIPI interface HX8399-A controller 5 inch tft lcd module

  • Model Name: TST050FHSH-47
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 1080*1920
  • Viewing angle: IPS all viewing angle
  • Brightness: 450 cd/m2
  • Driver IC: HX8399-A
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST050FHSH-47 is 5 inch 1080*1920 resolution LCD display with MIPI interface, standard brightness is 450cd/m2. For this 5 inch TFT LCD module, It is a FHD high definition lcd, the PPI is high. Driver IC is HX8399-A, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for handheld devices. such as Pos machine. etc



Specification
Part No. TST050FHSH-47
Outline Dimension(mm)
64.3(W) x 116.9(H) x 1.41(D)
Active Area(mm)  61.88 (W) x 110.02 (H)
Resolution(dots) 1080 x (RGB) × 1920
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1080RGB(H)xRGBx1920(V)
Touch panel Without
Driver IC HX8399-A
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5 inch TFT
Surface treatment Anti glare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 50,000-100,000

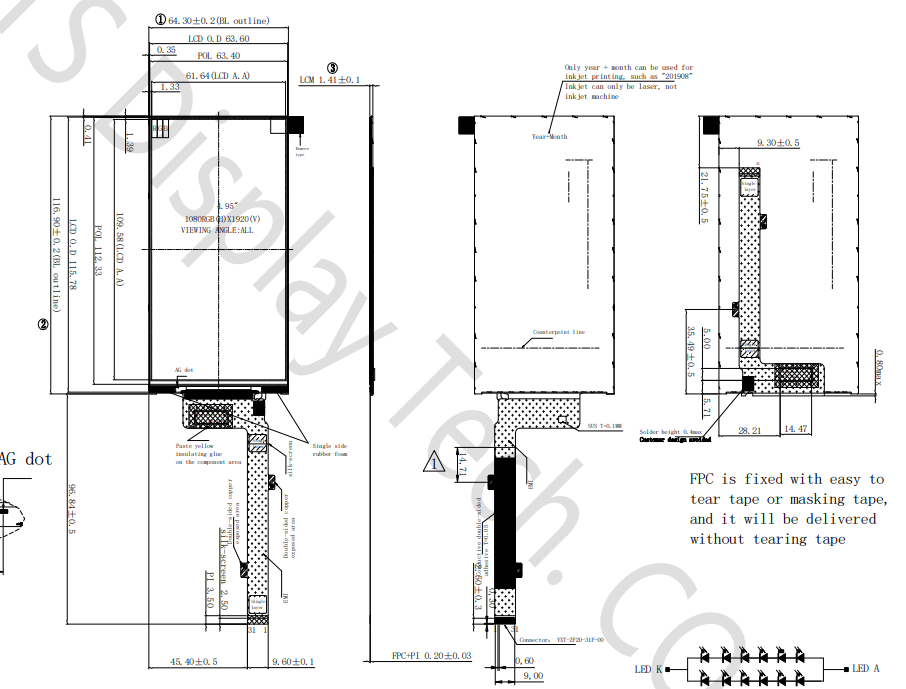

Drawing:

Interface Description:

Pin No.  Symbol Description
1 GND System Ground. (0V)
2 LED- Backlight K Cathode input pin.
3 LED+ Backlight A Aothod input pin.
4 GND System Ground. (0V)
5 NC No connect
6 NC No connect
7 GND System Ground. (0V)
8 VDDI(1.8V) Voltage input pin for logic I/O +l.8V
9 GND System Ground. (0V)
10 D3_N MlPI data cathode input pin
11 D3_P MIPI data aothod input pin
12 GND System Ground. (0V)
13 D0_N MlPI data cathode input pin
14 D0_P MIPI data aothod input pin
15 GND System Ground. (0V)
16 CLK_N MlPI clock cathode input pin
17 CLK_P MlPI clock aothod input pin
18 GND System Ground.(0V)
19 D1_N MIPI data cathode input pin
20 D1_P MIPI data aothod input pin
21 GND System Ground. (0V)
22 D2_N MIPI data cathode input pin
23 D2_P MIPI data aothod input pin
24 GND System Ground. (0V)
25 REST Reset input signal
26 TE Tearing Effect output signal
27 VDD2.8V Power supply +2.8V
28 GND System Ground.(0V)
29 LCD_ID 47K resistor connect IOVCC
30 NC No connect
31 GND System Ground. (0V)



Applications:



For our 5 inch LCD display TST050FHSH-47, it's widely using in handheld device, POS machine, scanning products.

Product Features:

1.5‘’  1080*1920 res. with 31pins MIPI interface

2. IPS lcd : full viewing angle

3. FHD Display

4.Vertical lcd type



5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
