Description:

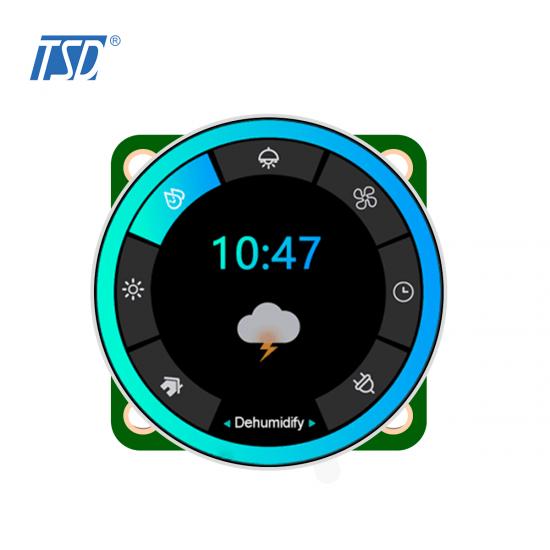

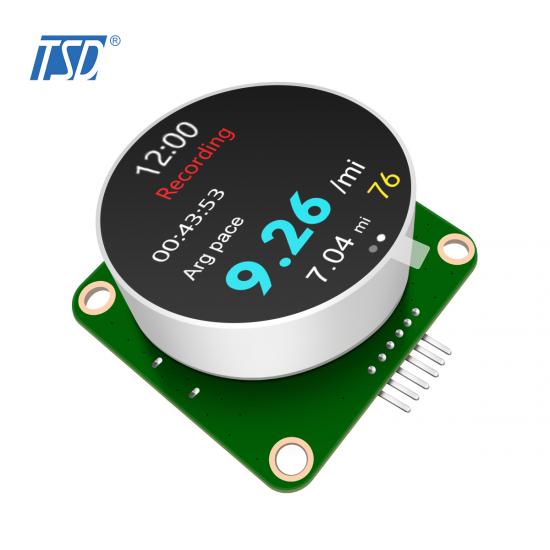

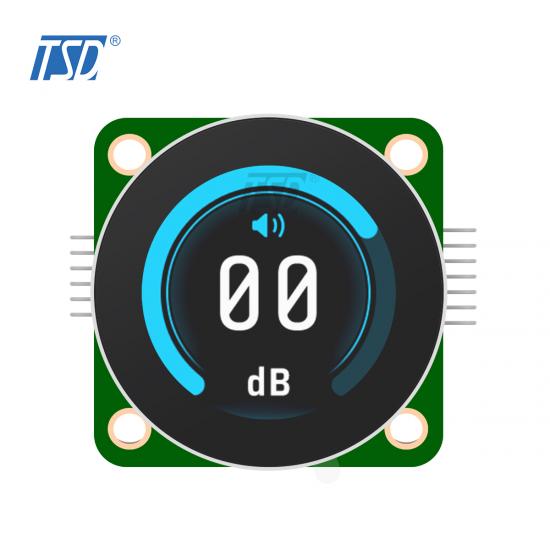

TSD TFT item number TSS013004A-AD is 1.3 inch, 240x240 resolution IPS round TFT LCD display with STM32C091 MCU, compaible with a square AD board, add USB-to-UART to support easy UART testing using PC. This 1.3 inch knob display is most suitable for smart home applications such as coffee machines, washing machines, smart toilets, thermostats, air conditioner controllers, etc., we can provide a complete HMI solution for you. For more information to create the application in TouchGFX, please click the link: https://support.touchgfx.com/zh-CN/academy/tutorials/tutorial-07

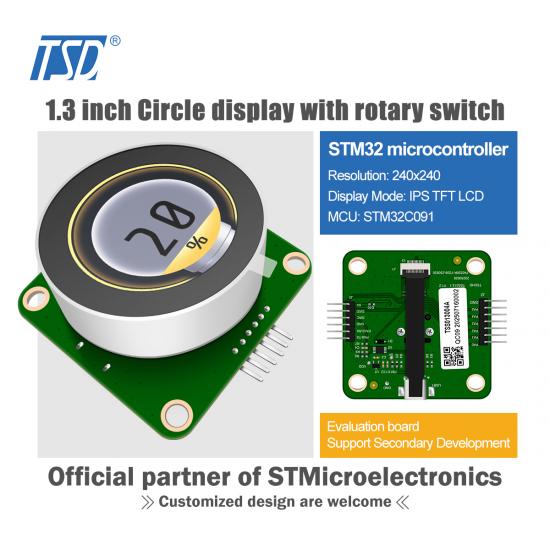

This knob solution is a serial communication TFT color screen display knob switch module based on the RTOS/STM32 platform. Through optimization algorithms, it achieves rapid collaboration among themain chip, display screen, and encoder switch, resulting in excellent screen refresh rate and dynamicdisplay effect. The module adopts an integrated design, and the screen, electric control, and coding switchare integrated into one body, with excellent reliability and excellent control feel. It is suitable for variousapplication scenarios that require button control， such as home appliances,smart homes,car centralcontrols, beauty equipment, and industrial controls. For any more information, please click below picture to know more details:

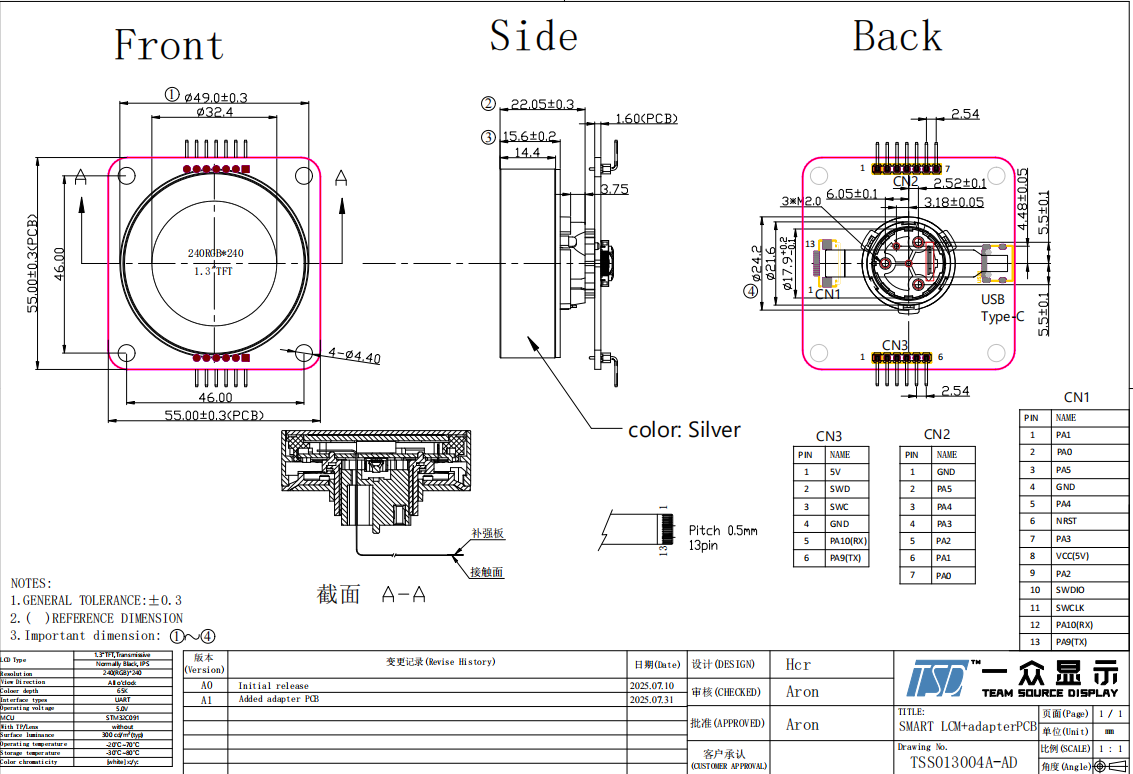

Drawing:
Specifications:
| General Specification | ||
| Part No. | TSS013004A-AD | |
| Outline Dimension(mm) |
49(W)x49.0(H)x22.05(D) |
|
| Active Area(mm) | 32.4(W) x 32.4(H) | |
| Resolution(dots) | 240x (RGB) × 240 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 240RGB(H)xRGBx240V) | |
| Touch panel | without | |
| Driver IC | STM32C091 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 1.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|

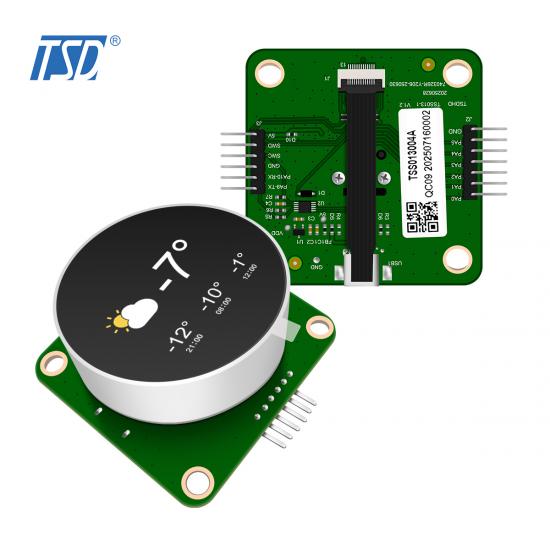

| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | UART | |
| Module lifetime(Hours) | 50,000-100,000 | |
| Interface Definition | ||
| Pin No. | Symbol | Description |
| 1 | 5V | Power 4.5V~5.5V, typical value 5V/100mA |
| 2 | SWD | SWD Date 3.3V |
| 3 | SWC | SWC Date 3.3V |
| 4 | GND | Ground |
| 5 | RA10 (RX) | UART RX 3.3V |
| 6 | RA9 (TX) | UART TX 3.3V |

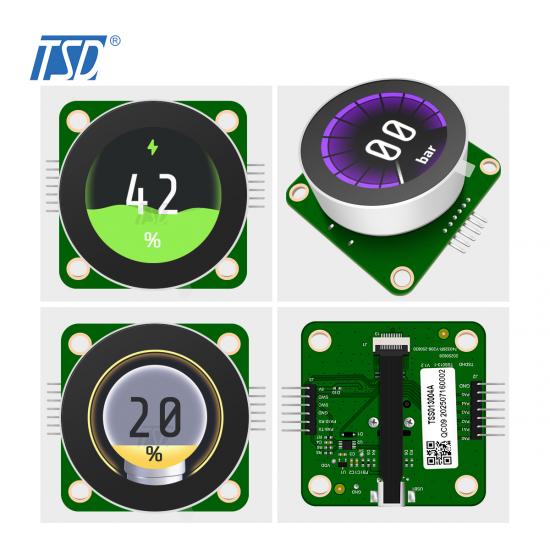

- Features:
- Display Specifications: 1.3" IPS dislay with 240*240 resolution
- Storage method: 64Mbit norFlash(Support customize)
- Operation type: Rotate and press
- Ambient Light: RGB tricolor light circle at thebottom, customizable
- UI content: Support customization and secondarydevelopment of TouchGFX
- Appearance: Plastic chrome plated/2.0D/2.5Dintegrated black glass cover plate(customizable)
- Operating voltage: 4.5V~5.5V, Typical : 5V
- Operating current: 50mA～150mA, Typical 80mA
- Display Color: 65K
- Display Brightness: 300土10%cd/m2
- Operating temperature: -20C～70C/96H
- Storage temperature: -30C～80°C/96H
- Advantages:
- Simple and easy operation mode: left and right unblocked particle sense rotation+ axial pressure sponge rebound
- Color OCA optical bonding with excellent seamless performance outer ring
- Fancy design with Bottom RGB atmosphere lamp circle
- STM32C091: powerful 32-bit Arm® Cortex®-M0+ core to cost-sensitive applications
- Long rotation life time, up to 30000 times (positive 1 week + negative 1 week counts as 1 time ), the pressing life is more than 30,000 times
