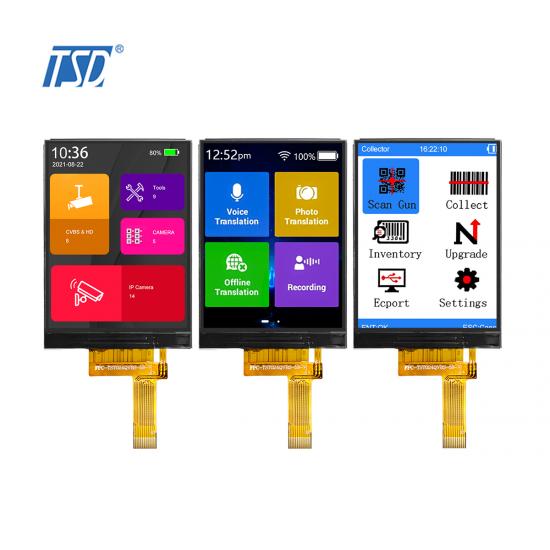

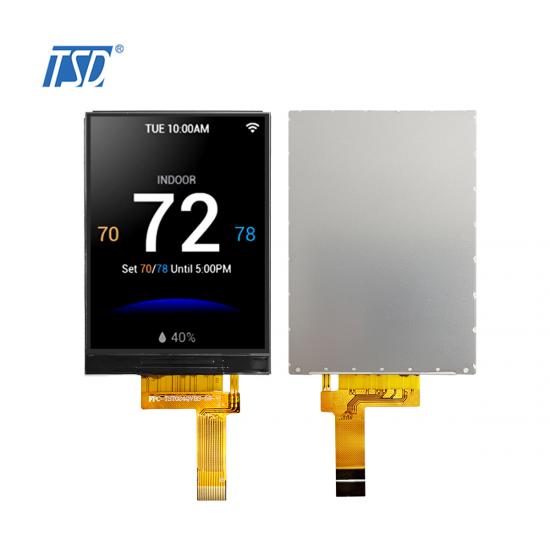

TSD 2.4 inch 240x320 resolution IPS TFT LCD with 1200 nits high brightness

  • Model Name: TST024QVBS-59
  • LCD Type: 2.4 inch tft lcd display
  • Resolution: 240x320
  • Viewing angle: All o'clock
  • Brightness: 1200 cd/m2
  • Driver IC: ST7789P3
  • Interface: 4 SPI
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST024QVBS-59 is 2.4 inch IPS TFT LCD module with 4 SPI interface, available to make the customization of touch screen. It's IPS panel with full view angle, resolution is 240x320. Outline dimension is 40.44x57mm, thickness is 2.26mm. Active area is 36.72x48.96mm. LCD driver IC is ST7789P3, operating voltage is 2.8V~3.3V. Working temperature is -30 to 80℃, storage temperature is  -30 to +80℃, suitable for automotive application, such as 2 wheels.

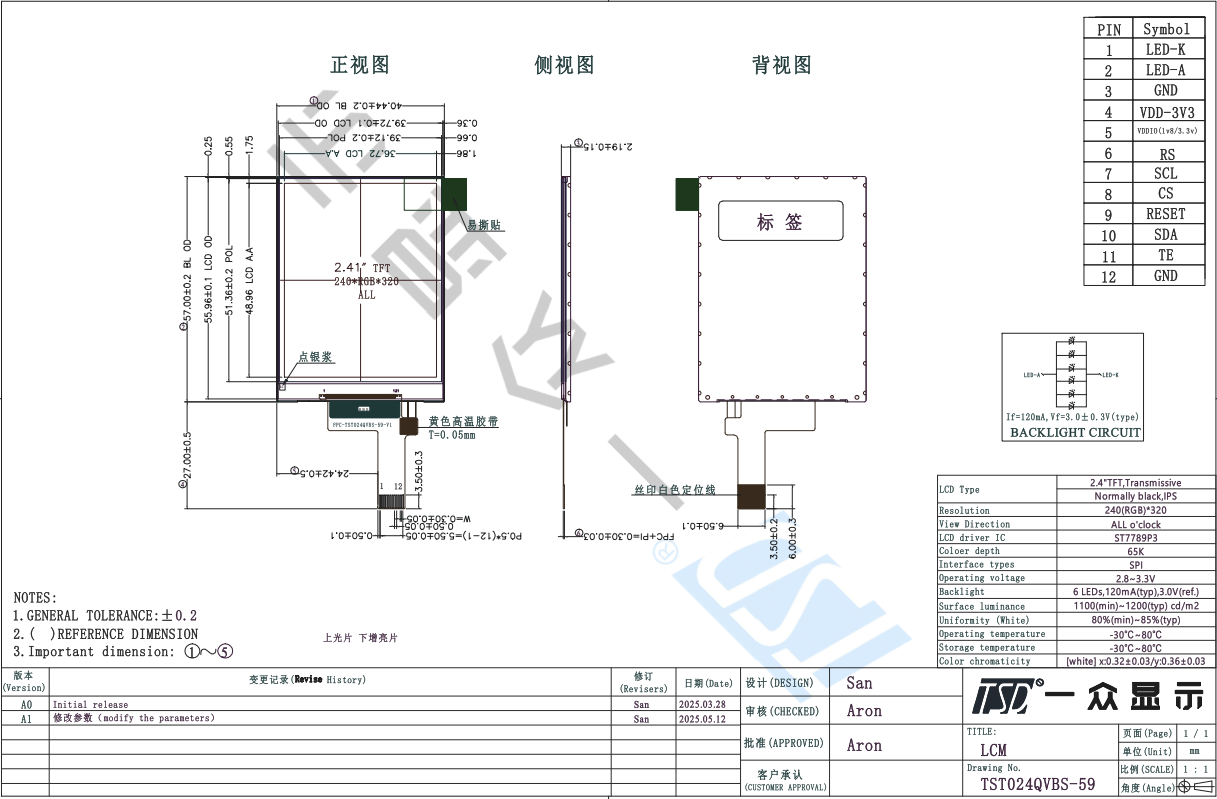

Drawing:



2.4 inch lcd


Specifications:



General Specification
Part No.  TST024QVBS-59
Outline Dimension(mm)  40.44x57x2.26
Active Area(mm) 36.72x48.96
Resolution(dots) 240x320
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240(H)xRGBx320(V)
Touch panel  without
Driver IC ST7789P3
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.4 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin
2 LEDA Backlight A  Aothod inout pin
3 GND System Ground (0V)
4 VDD 3V3 Power supply
5 VDD I/O_(1.8/3.3V) Power supply
6 RS Display data/command selection pin in parallel interface
7 SCL SPI inteface clock pin
8 CSX Chip selection pin
9 RESET Reset pin, setting either pin low initializes the LSI. Must be reset after power is supplied.
10 SDA SPI interface input pin
11 TE Tearing effect signal is used to synchronize MCU to frame memory
12 GND System Ground (0V)




Applications:



Our 2.4 inch color TFT LCD is specifically designed for automotive and mobility applications, including electric scooters, motorcycles, and other compact vehicle systems. This compact yet robust display delivers clear visibility, high brightness (optional), and wide viewing angles, ensuring critical information (speed, battery level, navigation, etc.) remains readable in various lighting conditions.


Key Features for Vehicle Integration:


✔ Sunlight Readability: High-luminance options (up to 1200 nits) for outdoor visibility
✔ Wide Temperature Range (-30°C to +80°C or custom) for reliable operation in all climates
✔ Vibration & Shock Resistant: Reinforced structure for durability on rough roads
✔ Custom Interface: Supports SPI interface; can display speedometer, battery icons, warning indicators, etc.


Typical Applications:

Electric scooter/motorcycle dashboards
Battery management system displays
Compact vehicle telemetry screens
