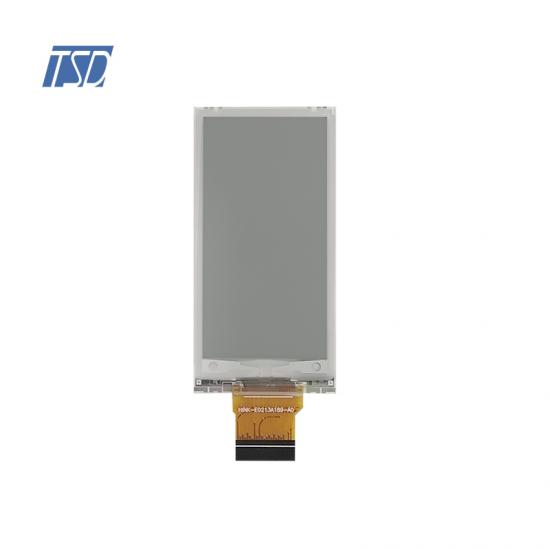

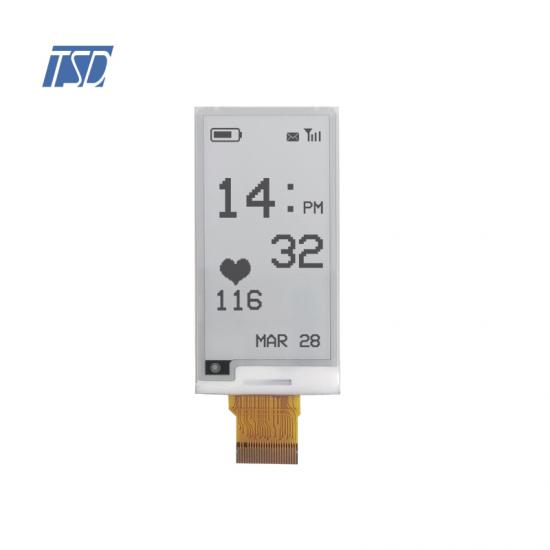

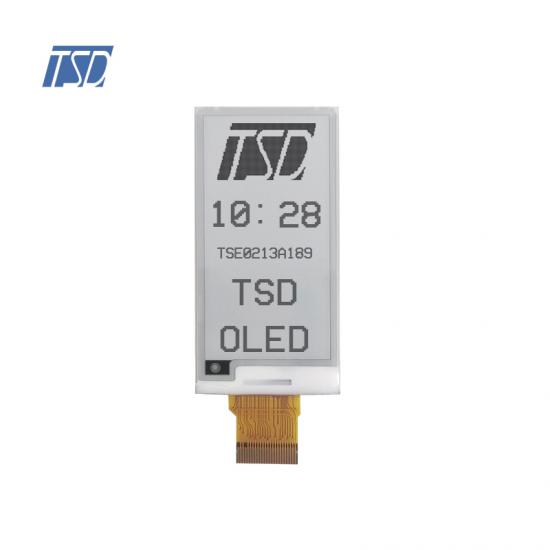

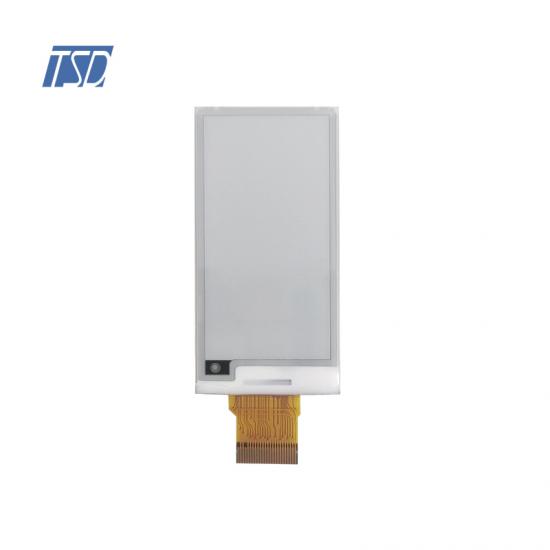

TSD Eink Display 122x250 pixels 2.13'' EPD LCD Modules for Electronic Shelf Label System

  • Model Name: TSE0213A189
  • Type: 2.13 inch  Eink Display
  • Ouline size: 29.2x59.2x0.9mm
  • Dot Matrix: 122x250 pixels
  • Driver IC: SSD1680
  • DPI : 130
  • Pixel pitch: 0.194x0.194
  • Operating Temperature: 0 ~ +50℃
  • Storage Temperature: -25 ~ +60℃



Description:



Team Source Display model TSE0213A189 is an Active Matrix Electrophoretic Display (AMEPD), with the interface and a reference system design.

The 2.13’’ active area contains 122×250 pixels, and has 1-bit B/W full display capabilities. An integrated circuit contains a gate buffer, source buffer, interface,

timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

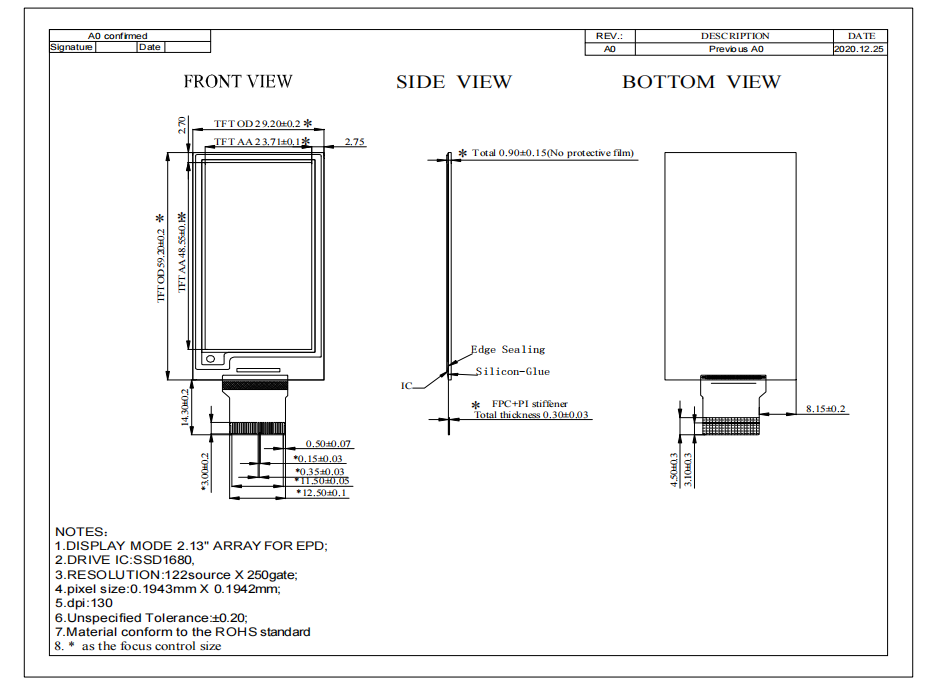

Drawing:




Specifications:



General Specification
Display mode
2.13'' AMEPD Display
Part No.  TSE0213A189
Outline Dimension(mm)

29.2(H)×59.2 (V) ×0.9(D)

Active Area(mm) 23.7x48.55
Resolution(dots) 200gate x 144source
Color Black/White
Operating temperature(°C) 0 ~ +50°C
Storage temperature(°C) -25~ +60°C
Driver IC SSD1680

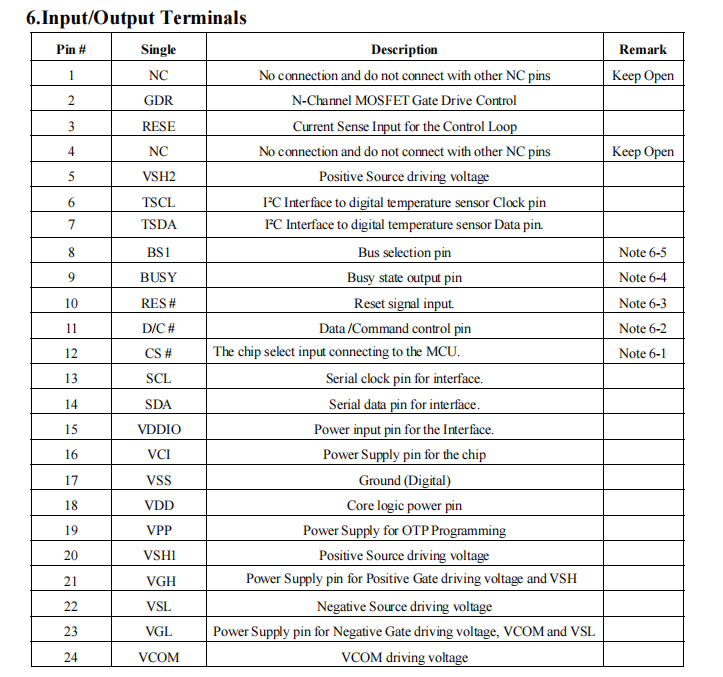

Interface 24PIN
DPI 130
Weight(g) 3g
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)






Applications:



2.13'' Eink Display used for Electronic Shelf Label System.






Product Features:

  • 1. 122×250 pixels display
  • 2. High contrast and High reflectance
  • 3. Ultra wide viewing angle
  • 4. Ultra-low power consumption
  • 5. Pure reflective mode
  • 6. Bi-stable display
  • 7. Commercial temperature range
  • 8. Landscape, portrait modes
  • 9. Hard-coat antiglare display surface
  • 10. Ultra Low current deep sleep mode
  • 11. On-chip display RAM
  • 12. Low voltage detect for supply voltage
  • 13. High voltage ready detect for driving voltage
  • 14. Internal temperature sensor
  • 15. 10-byte OTP space for module identification
  • 16. Waveform stored in On-chip OTP
  • 17. Serial peripheral interface available
  • 18. On-chip oscillator
  • 19. On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  • 20. I2C signal master interface to read external temperature sensor/ built-in temperature sensor
