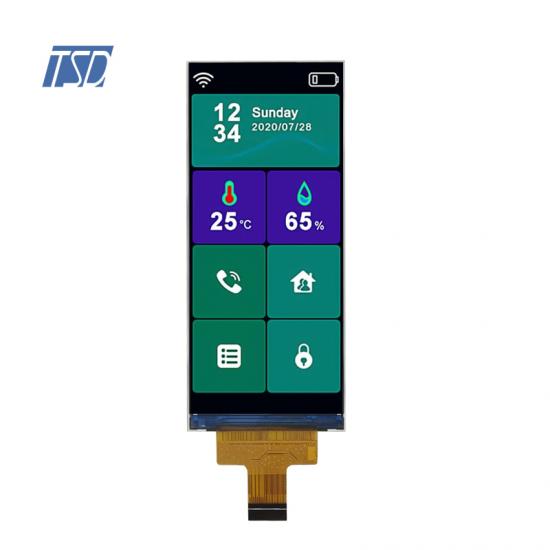

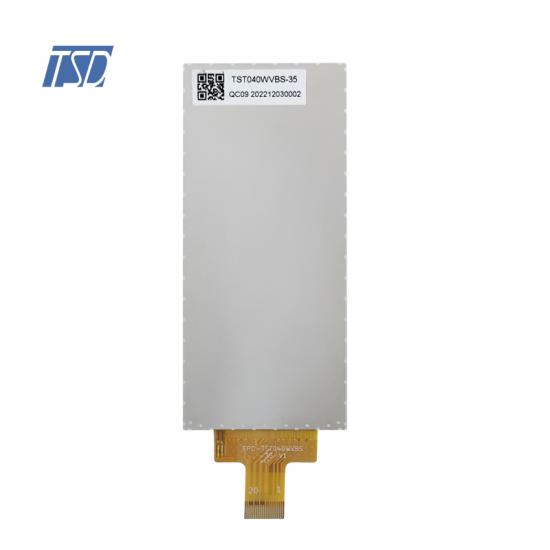

TSD 3.99 inch TFT 4 inch 400x960 resolution IPS tft lcd module with MIPI DSI interface

  • Model Name: TST040WVBS-35
  • LCD Type: 3.99 inch TFT LCD display
  • Resolution: 400x960
  • Viewing angle: All o'clock
  • Brightness: 350 cd/m2
  • Driver IC: ST7701S
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST040WVBS-35 is 3.99 inch TFT display with 400x960 resolution in portrait mode, it's a veritical display coming out with 20 pins MIPI DSI interface. LCD driver IC is ST7701S, surface uminance is 350 cd/m2, backlight LEDs is 8 LEDs with 20mA and 24.8V. Power voltage is 2.8V typically. Operating temperature is -30 to +80℃, storage temperature is also  -30 to +80℃. This 4 inch tft lcd module is a bar type display, with high resolution and good performance.

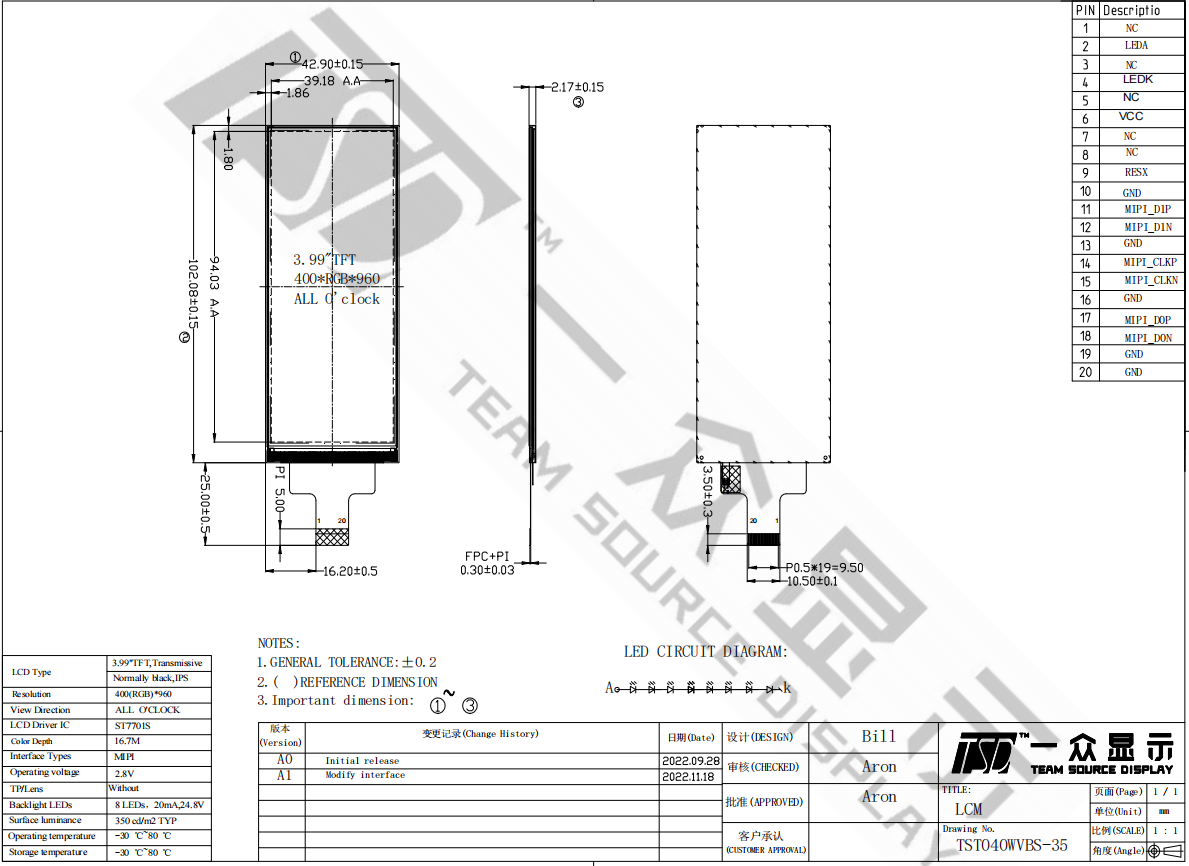

Drawing:

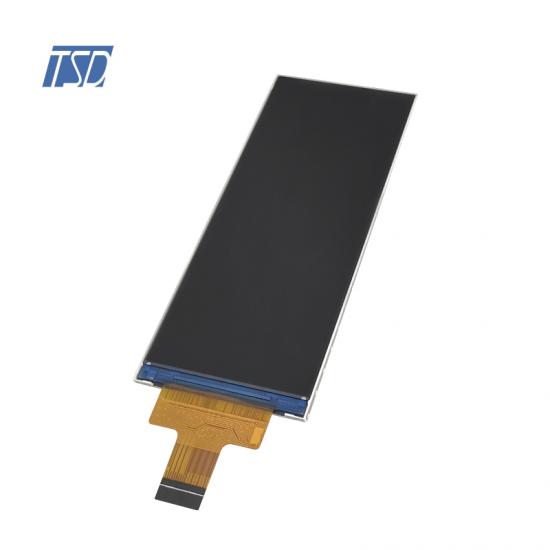

4 inch tft lcd module


Specifications:



General Specification
Part No.  TST040WVBS-35
Outline Dimension(mm)  42.9x102.08x2.17
Active Area(mm) 39.18x94.03
Resolution(dots) 400x960
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 400(H)xRGBx960(V)
Touch panel  without
Driver IC ST7701s
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.99 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 NC No connect
2 LEDA Backlight A Aothod input pin
3 NC No connect
4 LEDK System Backlight K Cathode input pin
5 NC No connect
6 VCC Power supply +2.8V
7 NC No connect
8 NC No connect
9 RESX Reset input signal
10 GND System ground
11 MIPI_D1P MIPI data 1+
12 MIPI_D1N MIPI data 1-
13 GND System ground
14 MIPI_CLKP MIPI clock 1+
15 MIPI_CLKN MIPI clock 1-
16 GND System ground
17 MIPI_D0P MIPI data 0+
18 MIPI_D0N MIPI data 0-
19 GND System ground
20 GND System ground




Applications:



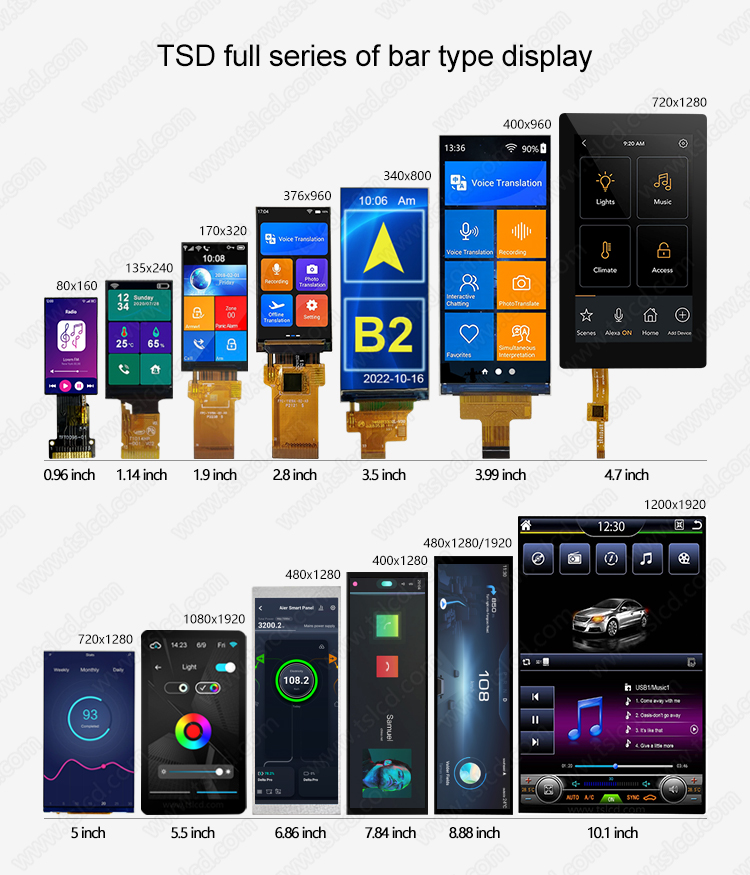

For our 3.99 inch 400x960 LCD display TST040WVBS-35, TSD have other full series bar type lcd display, such as 0.96 inch, 1.14 inch, 1.9 inch, 2.86 inch, 3.5 inch, 4.7 inch, 5 inch, 5.5 inch, 6.86 inch, 7.84 inch, 8.88 inch, 10.1 inch etc. Any more detail, please contact us to get more details freely.
