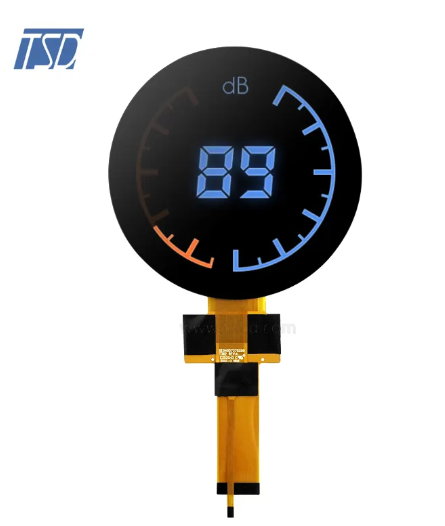

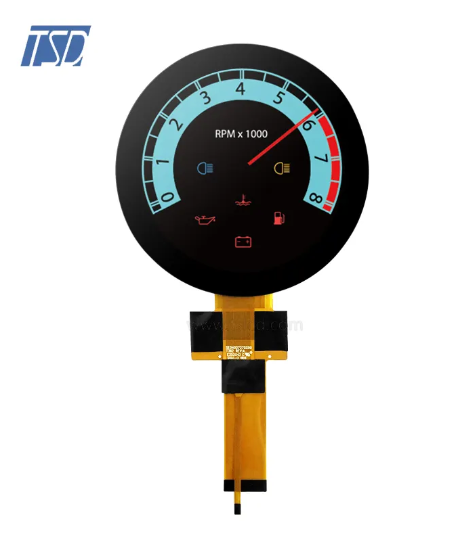

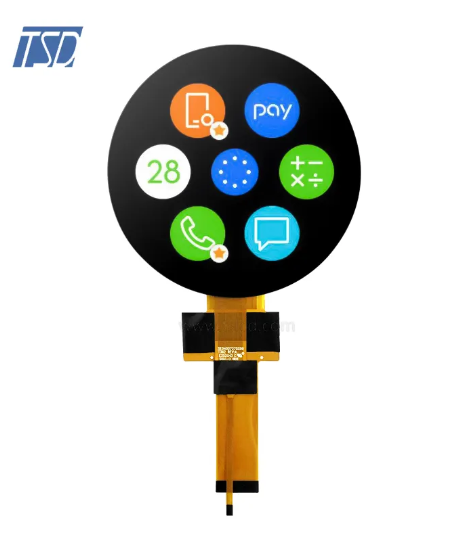

TSD 3.0 Inch TFT LCD Customization lcd panel 432*432 resolution

Screen Size: 3.0 inch

Resolution: 432*432

View Direction: All o’clock

Active area: 74.3904*74.3904

Backlight: LED

TFT LCD display mode: Normally Black

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.0”contains 432*432 dots and the Active area is 74.3904*74.3904.

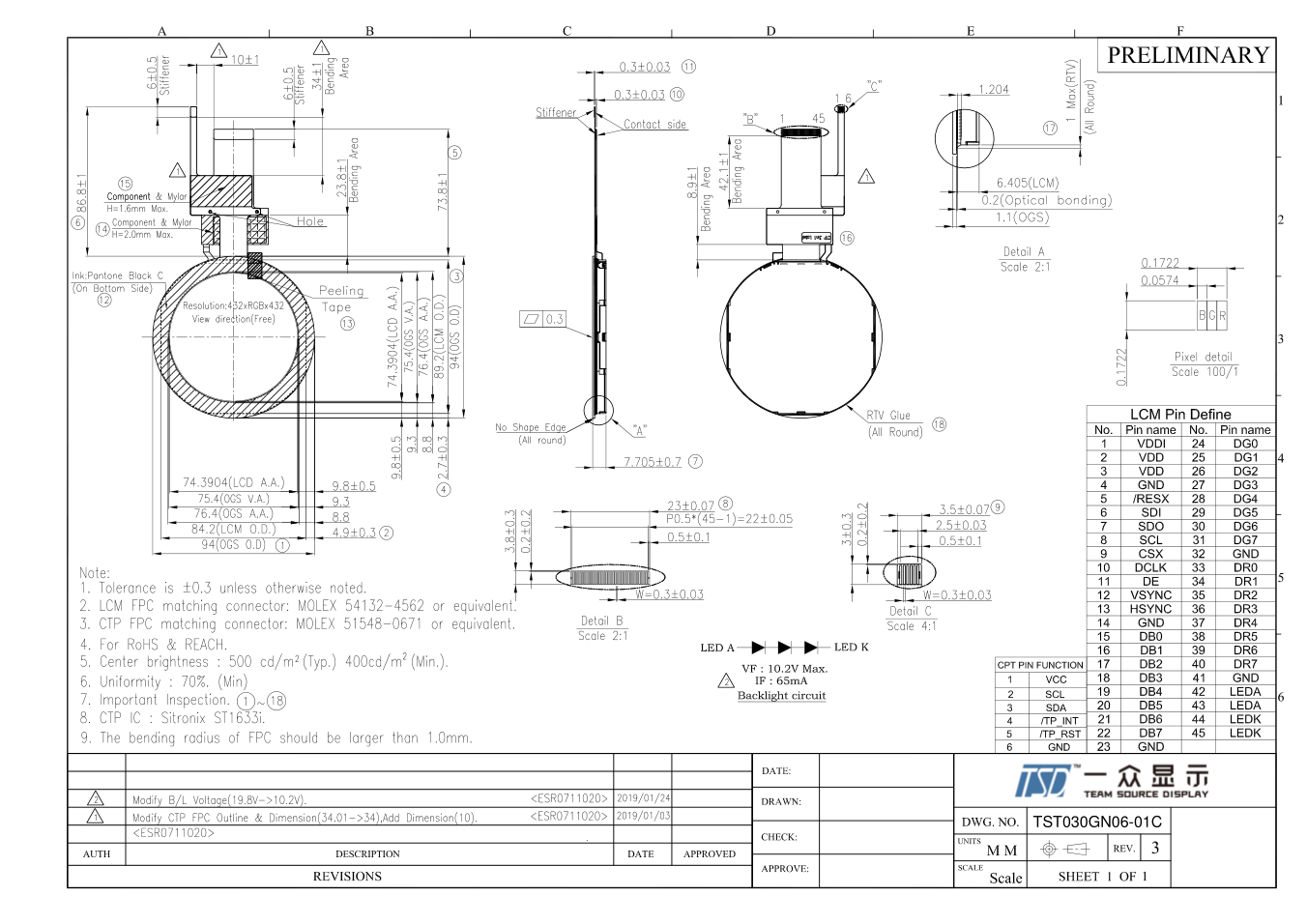

Drawing:

Specification



General Specification

Part No.

TST030GN06-01C

Display Size(Diagonal)

3.0 inch

LCD type

α-Si TFT

Resolution

432* 432

View Direction

ALL o’clock

Module Outline

94*94*9.13

Active Area

74.3904*74.3904

Viewing Area

ALL o’clock

Backlight

LED

Surface treatment

Clear

Interface

RGB

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080





 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.



7. Information Terminal Display: POS, PDA, Handheld devices.
