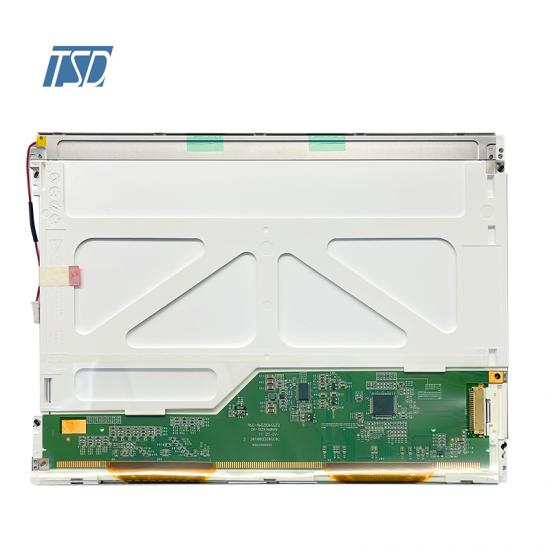

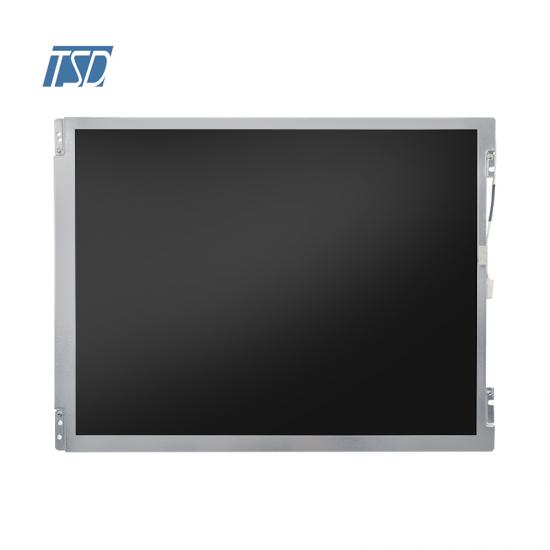

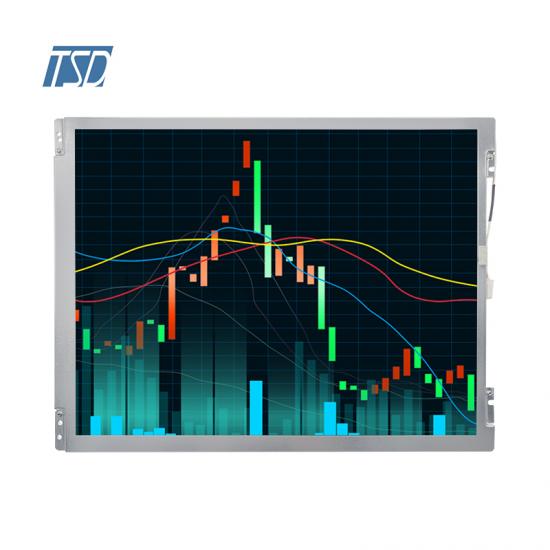

TN TFT LCD Display 10.4 inch TFT LVDS Interface LCD Module

Specification
Part No.	10.4 inch TN TFT
Outline Dimension(mm)	236× 176.9 × 5.6
Active Area(mm)	211.20 × 158.40
Operating temperature(°C)	-20 to 70
Storage temperature(°C)	-30 to 80
Resolution(dots)	800x600
Touch panel	without
Contrast	400:1
Pixel arrangement	RGB Vertical stripe
Display mode	Normal white,TN, 10.4 inch TFT
Brightness	400 nits
View direction	12 O'clock
Weight(g)	288
Power Consumption(w)	Panel	0.226(Typ.)
	B/L system	1.674(Typ.)
Interface	LVDS
Module lifetime(Hours)	50,000-100,000
