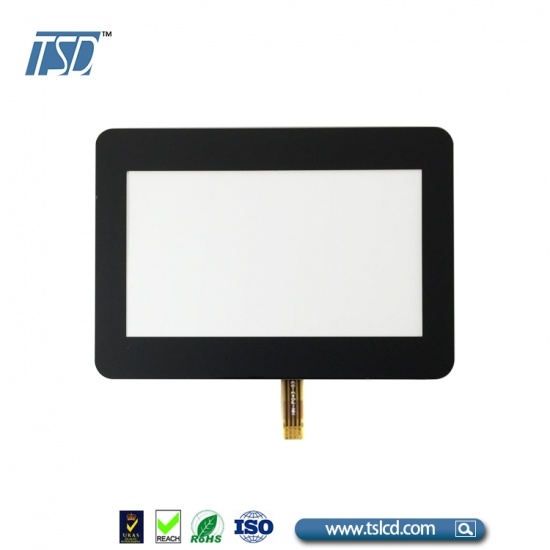

sunlight readable 4.3'' tft display lcd with AR coating

Feature:

sunlight readable 4.3'' tft display lcd with AR coating

*AR,AG,AF design if need

*customized cover lens for any applications

*China factory price support .




Specification
Part No. TST043015CMHX-P
Outline Dimension(mm) 105.5x67.2x4.2(Typ.)
Display Area(mm) 95.04(H)x53.856(V)
Driver IC HX8257A
Resolution(dots) WQVGA, 480*RGB*272
Description 4.3" 500 nits brightness lcd display panel
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 480RGB(H)*272(V)
Pixel Pitch 0.198(H)*0.198(V)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,262k colors, 4.3 inch tft lcd
Surface treatment Antiglare, Hard-Coating(3H), AF,AR coating
Weight(g) 50(Typ.)
Module brightness(cd/m2) 500(Typ.)
Backlight LED Side-light type,
10 pcs. white led(20MA/chip, recomendation)
Power Consumption(w) Logic system 0.09Max.
B/L system 0.924Max.
