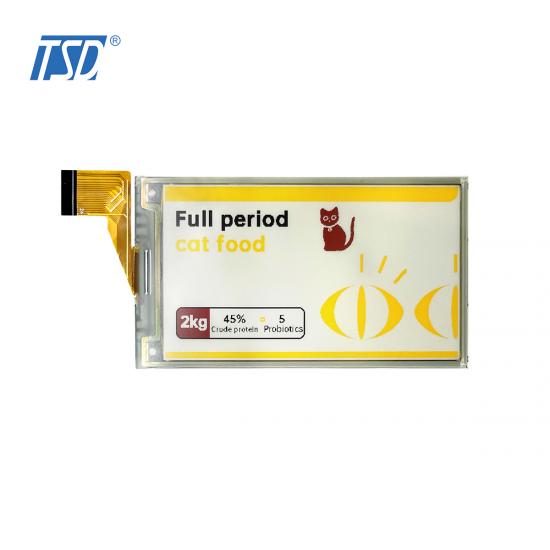

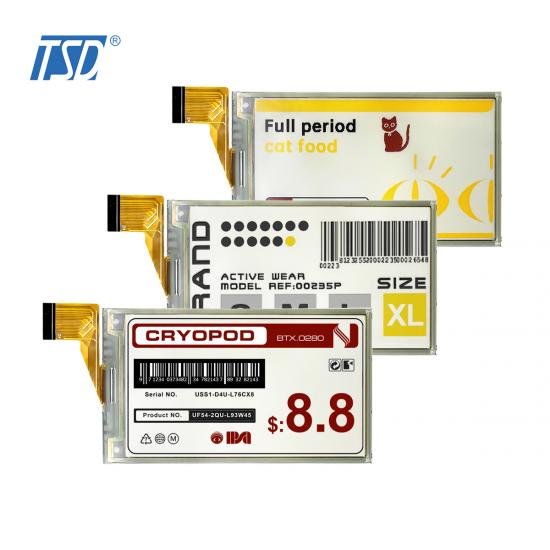

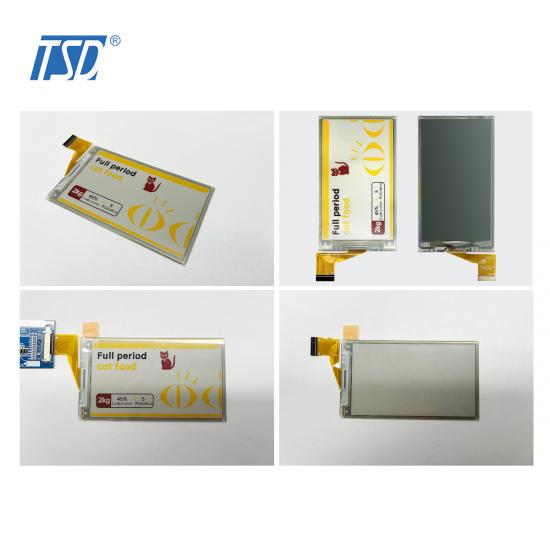

TSD 3.7 Inch Epaper display 240×416 resolution four color e ink display



Display Type: E-ink display

Resolution: 240×416 pixels display

Active area :47.04(H)×81.54(V)

Outline dimension:53(H)×92.99 (V) ×0.9(D)

Driver IC: IST7163

Operating temperature: 0℃~40℃

Storage temperature:0℃~40℃



Description:



TSE037A56-BWRY is an Active Matrix Electrophoretic Display (AMEPD) with interface and a reference system design. The 3.7’’ active area contains 240×416 pixels, and has 2-bit B/W/R/Y full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic,oscillator, DC-DC, SRAM, LUT ,VCOM and border are supplied with each panel.

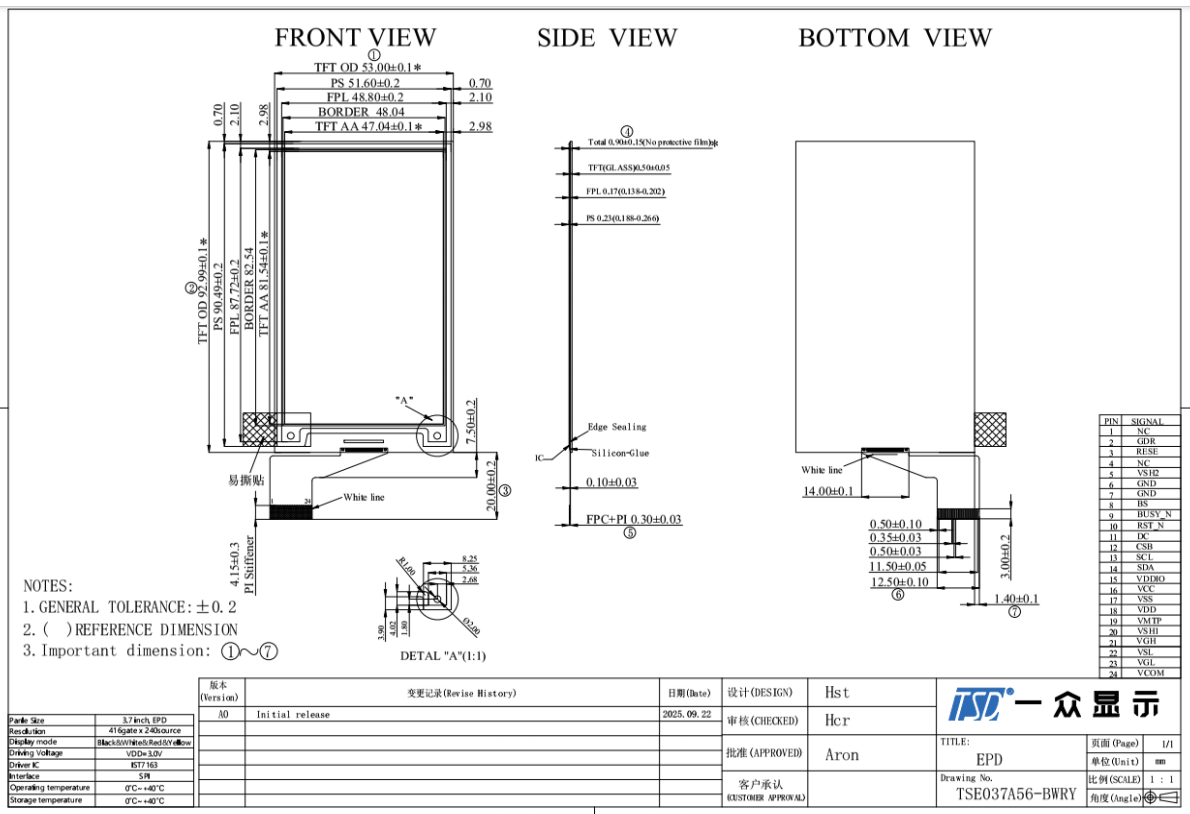

Drawing:


Specification



General Specification

Part No.

TSE037A56-BWRY

Display Size(Diagonal)

3.7 inch

LCD type

EPD

Resolution

240H*416V

View Direction

All o'clock

Module Outline

53(H)×92.99 (V) ×0.9(D)

Active Area

47.04(H)×81.54(V)

Pixel Pitch

0.202×0.203

Pixel Configuration

Square

Driver IC

IST7163

Weight(g)

8.5±0.2

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

0~40

Storage Temperature

0~40





Pins Description

Pin No.

Symbol

Description

1

NC

No connection and do not connect with other NC pins Keep Open

2

GDR

N-Channel MOSFET Gate Drive Control

3

RESE

Current Sense Input for the Control Loop

4

NC

No connection and do not connect with other NC pins e Keep Open

5

VSH2

Positive Source driving voltage

6

TSCL I2C

Interface to digital temperature sensor Clock pin

7

TSDA I2C

Interface to digital temperature sensor Date pin

8

BS1

Bus selection pin

9

BUSY

Busy state output pin

10

D/C

Data /Command control pin

11

TCN

MIPI clock c athode input pin

12

CS

Chip Select input pin

13

SCL

serial clock pin (SPI)

14

SDA

serial data pin (SPI)

15

VDDIO

Power for interface logic pins

16

VCI

Power Supply pin for the chip

17

VSS

Ground

18

VDD

Core logic power pin

19

VPP

Power Supply for OTP Programming

20

VSH1

Positive Source driving voltage

21

VGH

Power Supply pin for Positive Gate driving voltage andVSH

22

VSL

Negative Source driving voltage

23

VGL

Power Supply pin for Negative Gate driving voltage,VCOM and VSL

24

VCOM

VCOM driving voltage






Product Features:



  • 240*416 pixels display
    • High contrast High reflectance
    • Ultra wide viewing angle
    • Ultra low power consumption
    • Pure reflective mode
    • Bi-stable display
    • Commercial temperature range
    • Landscape, portrait modes
    • Hard-coat antiglare display surface
    • Ultra Low current deep sleep mode
    • On chip display RAM
    • Low voltage detect for supply voltage
    • High voltage ready detect for driving voltage
    • Internal temperature sensor • Waveform stored in On-chip OTP
    • Serial peripheral interface available
    • On-chip oscillator • On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
    • I2C signal master interface to read external temperature sensor/ built-in temperature sensor

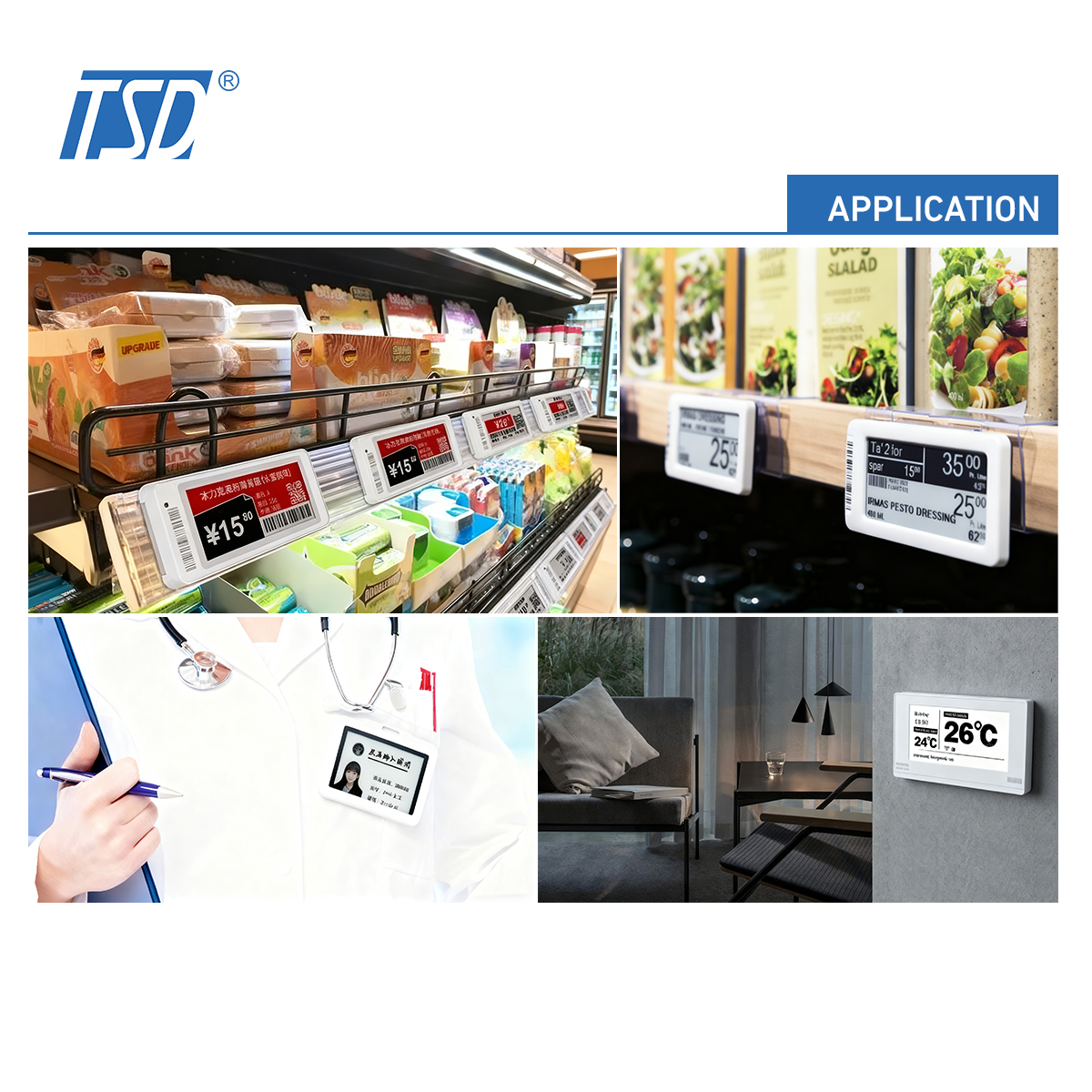

Applications:



The 3.7 inch E Ink display is a bi-stable, reflective electrophoretic display specifically designed for Electronic Shelf Label (ESL) systems in retail environments. It delivers paper-like readability with ultra-low power consumption, making it the industry-standard solution for dynamic pricing, inventory management, and in-store digital signage.
